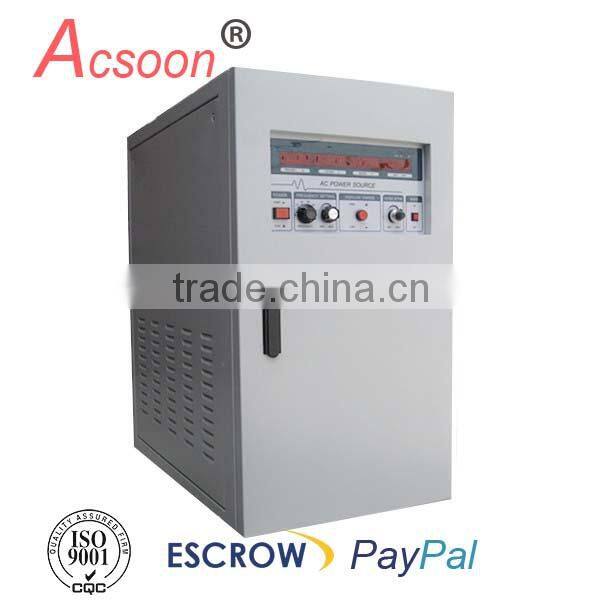

Help Center60KVA 3 Phase Power Stabilizer 3v Voltage Regulator
Related Products
-
AF50-100KVA Three-phase Four-wire Input,auto Voltage RegulatorUS$ 566 - 1,299MOQ: 1 Set -
AF50-150KVA Three-phase Four-wire Input,avr Automatic Voltage RegulatorUS$ 566 - 1,299MOQ: 1 Set
-
AF50-150KVA Three-phase Four-wire Input,servo Voltage Stabilizer PriceUS$ 566 - 1,299MOQ: 1 Set
-
AF50-5KVA Single Phase Automatic Voltage Stabilizer PriceUS$ 566 - 1,299MOQ: 1 Set
-
30KVA ac Power Source Frequency Converter, Power Line Voltage StabilizerUS$ 566 - 1,299MOQ: 1 Set
Specifications
3 phase power stabilizer1.Low THD<2%
2.Overload capacity,ISO9001
3.IGBT/SPWM circuit design
4.Double isolation
Why AF50 power source
The electric power we used everyday. Most of them are from power plant generally. It is not stable on peak time powering are over supply the power station has to drop the voltage to ensure power supply normally. so this leads to the entire power grid is under voltage and viceversal.when the power factor of the grid is too low. the power station will add or remove the capacitor in grid to adjust the power factor. In this case. it’ll cause surge voltage in the grid
Report from bell laboratory
Report from bell in american45.3%damage of precision electronic equipment mostly cause by surge voltage 9.4% cause by thunder striking 87% error code during operating cause byover low up tage 9% error code cause by surge voltage.
IBM did research and show.usually a computer average monthly encountered trouble of power supply about 120 times every single month.result in keyboard locked.hardware pletely loos of data or motherboard burning
AF50 series are supposed to prevent the sensitive electronics from damage when they are supplied under unstable grid power .such as flicker .power drop estranged design and reliable performance make them the smart choice for utilities and /or industrial environmentswhere power transients and surges are a concern clean low -distortion sine wave outputs make them ideal powering sensitive electronics such as microprocessor-based instrument and PLC‘s
Because AF50 series provide stable voltage and frequency
.output pure sine wave and overcome the disadvantage of UPS that are not allowed to have the inductive load like generator motor are widely used in manufacturing .technology researching .military system aerospace testing ETC
Features:
1: the pure sine wave output .low output THD
2:1GBT/pact size lower noise high reliability
3: double isolation of the input and output unit .safe and reliable
4: Protection:overcurrent.overvoltage .overheat.overload protection and automatic warning devices
AF50-60KVA Single phase voltage regulator for car alternator
1.OEM/ODM Service;
2.Excellent sales Service;
3.Product guarantee service;
4.Escrow payment is available;
5.Small order is acceptable;
APPLICATION:
Electrochemistry: electroplate, corrosion, energize, be available for electronic aluminum foil, Chlor-Alkali,Cabon,SiC production;
Industrial electroplate,high precision electrolytic copper foil, low ripple wave durionise;
Industrial metal and Aluminum surface electrophoretic coating;
Precision measurement, Medical electronic equipment;
Imported electronic product and electricity equipment power supply;
Exported electrical product and electric equipment product testing;
CNC machine, Light and Textile industry automatic production lines;
Providing high-performance uninterruptible power supply system for electricity generation factory.
| AF50 Series High precision voltage and frequency stabilizer power source,Voltage and frequency Regulator | ||
| Model | AF50-310060 | |
| Capacity | 60KVA | |
| Rated Power(W) | 48KW | |
| Circuit | IGBT/SPWM | |
| Input | Voltage | 265V-495V |
| Phase | Three-phase four-wire | |
| Frequency | 20-100Hz | |
| Power Factor | >85% | |
| Output | Voltage | 220+-1% |
| Phase | Single phase | |
| Frequency | 50Hz/60Hz+-0.01% | |
| Rated Current | 272.7A | |
| Overload Capacity | 150%,20S;250%,10S | |
| Voltage Regulation | <1%(at full load) | |
| Frequency Regulation | <+-0.01% | |
| Distortion | <3% | |
| Volatge Resolution | 0.1V | |
| Current Resolution | 0.01A | |
| Frequency Resolution | 0.1Hz | |
| Power Resolution | 0.1W | |
| Effiency | >85% | |
| Response | <2ms | |
| Communication Interface | RS232/485 | |
| LED Display | Voltage,current,power factor,active power,reactive power and display measure(customized) | |
| Protection Function | overcurrent,short circuit,overheat,overload,phase loss,self diagnosis protection and warning device | |
| IP Grade | IP20 or customized | |
| Insulation Reactance | 2500Vsine wave 1minute(power frequency)Flicker free | |
| 500VDC/200MΩ | ||
| Withstand Voltage | 1800VDC/5mA/1minute | |
| Insulation Resistance | 2MΩ | |
| Colling Method | Fan cooling | |
| Working Environment | Noise | <65dB(within 1 meter) |
| Working Temperature | -10 Cto 50degrees Celsius | |
| Humidity(RH) | 0-90%(non-condensation) | |
| Altitude | <1500M | |
| Dimensions(W*D*H) | 600*1320*1370 mm | |
| Remark:Above sheet just normal model,custmized is acceptable. | ||
3 ph
ase power stabilizer
3 phase power stabilizer
Package:Protective case(wooden case or carton for sea or airshipment and express delivery)
Lead time:It will take 15-20 working days once transfer;
Xi'an Jerry Star Instrument Co.,ltd is a high-tech corporation, set up by the power laboratory of University of Electronic Science &Technology and the Military Institute,has been focusing on designing and manufacturing the ACSOON Ac Power Supply.Including AC power frequency converter,power stabilizer,voltage stabilizer,solar power inverter,DC to AC inverter and 400 hz ac power supply for military etc.All the products are for the application of avionics, aviation, aerospace testing, oil and gas industry ,replacement of rotary converters and the testing of electrical goods for export etc.
ACSOON Power Source, Military quality, Excellent performance,your most reliable power source!
3 phase power stabilizer
We are committed to providing the best technical and commercial solution for your power source needs.
Pls feel free to contact with us if you have any questions.Kathy will try the best to provide an excellent service with you forever~
