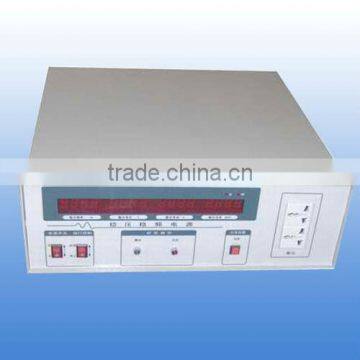

Help Center2KVA Three-phase Voltage and Frequency Stabilizer
Related Products
-
1kva Voltage Regulator and Frequency ConverterUS$ 100 - 500MOQ: 1 Unit -
45KVA 3 Phase Voltage Regulator ac Power SourceUS$ 500 - 600MOQ: 1 Unit
-
400w Power Supply and Voltage RegulatorUS$ 100 - 600MOQ: 1 Unit
-
1KVA Frequency and Igbt Voltage RegulatorUS$ 100 - 500MOQ: 1 Unit
-
500VA Frequency and Automatic Voltage RegulatorUS$ 100 - 500MOQ: 1 Unit
Specifications
nstant output voltage & frequency2.output pure sine wave
3.isolated transformer
4.Double protection
Specification:
| Model | AF50-130002 | ||||||
| Input | voltage | 130V-280VAC | |||||
| Frequency | 30-80Hz | ||||||
| Phase | Single | ||||||
| output | Voltage | 380VAC±1% or as per the customers'request |
|||||
| Capacity | 2000VA | ||||||
| Phase | Three-phase | ||||||
| frequency | 50Hz or 60Hz | ||||||
| frequency stability |
≤±0.01% | ||||||
| response time | < 20ms | ||||||
| Distortion | Clean Sine Wave THD<2% (Measured at full load) | ||||||
| Power factor | 0.8, | ||||||
| effeciency | >90% | ||||||
| protection | Double protection |
over voltage protection,over load protection Thermal Protection,Short Circuit Protection,Alarm System |
|||||
| display accuracy | LED display | digital frequency meter:0.1HZ |
|||||
| Dimention | Approx | 460*440*230mm | |||||
| working condition |
working temperature |
-10°C-55 °C | |||||
| humidity | 0-90% | ||||||
| Noise | < 50dB within 1 meter | ||||||
Remark:input & output voltage or frequency can be adjustable as per the customers' request
Xi'an Jerrystar Instrument Co.,ltd is a professional power supply supplier,the products are environmentally friendly,energy saving,and the high-intelligent power products,advocate and leader.
This product is power electronic equipment to protect the sensitive equipment in the grid power quality,when the grid voltage ,supply frequency instability,severe voltage distortion,voltage quality problems exist flicker,dropping in the case.
Frequency stabilization power supply can solve all the supply problems except the power failure,and can provide the voltage stabilization,frequency stabilization,waveform is standard,and conquer the disadvantages of the UPS can not take the inductive load.The frequency stabilization power supply suitable for any load.
