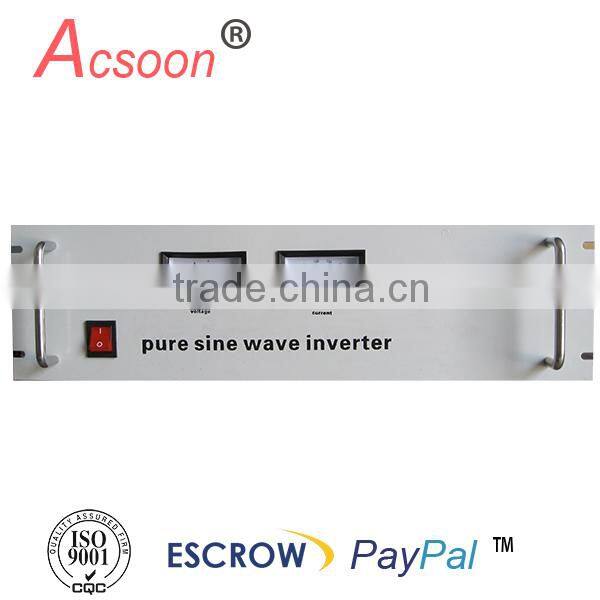

48V to 220V DC to AC Inverter for Communication System

48V to 220V DC to AC Inverter for Communication System thumbnail-1
48V to 220V DC to AC Inverter for Communication System photo-1
US$ 100 - 1,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Acsoon
Model Number:
AND48
Contact Supplier Request Quote Chat Now
Xian Jerrystar Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjing Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Brand Name Acsoon
Model Number AND48
Output Power 1 - 200KW
Output Type Single
Size 490*440*720
Weight 40kg
Input Voltage 48V DC
Output Voltage 220V/380V AC
Type DC/AC Inverters
Output Frequency 50Hz
Output Current 79A

Specifications

1. Pure and Stable sine wave output
2. SPWM/IGBT technology
3.Multiple safety protections
4. Soft start for better reliabilty

Customizing any detail acceptble!

We can offer single phase, triple phase, or combined in one unit for multipurpose.

Customizing is our advantage!   Contact us for your special needs!

 48V to 220V DC to AC inverter for communication system





Quick Links:

  • For 220V single phase input and output, please click here.
  • For 380V triple phase input and output, please click here.

Product Description

Over View

Acsoon AND48 series inverter is a new generation power supply specially developed for communication industry and other applications having vulnerable equipments that are highly sensitive with interferences. Stable, reliable, and non-stop pure AC power supply is critical to these equipments.

Acsoon AND48 series inverter is controlled by high performance micro processors, utiliziing IGBT technique with built-in AC bypass circuit. It's highly adaptive, reliable, pricised and easy to maintenance.

Main Features

  • Pure and Stable sine wave output
  • Thoroughly proven advanced SPWM/IGBT switching power technology
  • Experienced EMI protection
  • Soft start when switched on for higher reliability
  • Seamless shift of bypass circuit
  • Multiple safety protections

Basic Data Sheet

Model (AND48-) 500VA 10001 10002

10003

 10005 10008
Output power ( KVA) 0.5 1 2 3 5 6
Imput
DC 40V - 55V
AC

220V+/-2%, 50Hz+/-3%
Output

Voltage

 220V
Phase Single (1)
Frequency 50Hz+/-3%
Overload Capacity

Auto shift power to bypass circuit when load current of 120% rated lasts more than 10 sec..

Auto return back to inverter after overload vanish.
Power Factor ≥0.8
Shift time of  bypass circuit <4ms
Distortion (THD) ≤3% (messured at full load)
Efficiency ≥0.85
Response ≤2ms
CF 3:0.1
Noise <50dB (meassured at 1-meter distance)
Protective Design Features
Input Fuse Short Circuit
Over Voltage Under Voltage
Thermal Auto Shift to Bypass Circuit on Fault
User Interface
Display LCD or LED optional
Working Environmental
Temperature 0°C-40°C
Humidity 20-90% (non-condensing)



48V to 220V DC to AC inverter for communication system


Our Services



Many thanks for the choice of our products; we are in a position to grant you high quality products, which follow high quality insurance models, UNI EN ISO 9001 and which use the best materials that modern technology is able to offer.

  • OEM/ODM accepted.
  • Input/output parameters can be modified according to your needs.
  • Protection classification can be modified per your local actual environment.
  • Flexible payment: PayPal, Escrow, T/T, L/C.




Packaging & Shipping

 All products are properly and carefully packaged to protect them from humidity, salt fog, and collisions during transportation.
