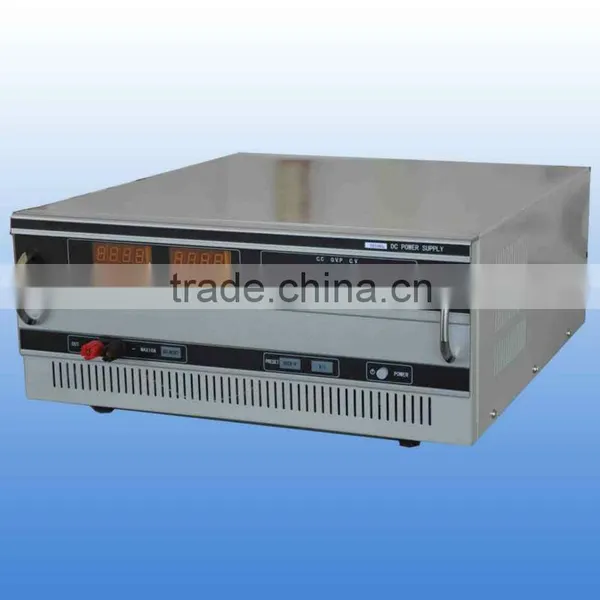

0-12v Switching Adjustable dc Power Supply

Name: 0-12v Switching Adjustable dc Power Supply
Brand: acsoon
SKU: 109354597
Availability: InStock

US$ 100 - 500 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Brand Name:

acsoon

Model Number:

ADC

Xian Jerrystar Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name acsoon

Model Number ADC

Output Power 101 - 200W

Output Type Triple

Size 410*440*135MM

Weight 7.0

Input Voltage 220V

Output Voltage 0-12v

Type Other, AC TO DC

Output Frequency 50HZ

Output Current 0-60A

Specifications

1.AC and DC compatible with the input.
2.Small size,high efficiency.
3.Digital display output voltage and current

Product features:

1.AC and DC compatible with the input,wide input voltage range.

2.The operation is simple and easy to use.

3.Small size,light weight,high efficiency.

4.Digital display the output voltage and current.

5.Full load for a long time reliable and stable operation.

Specifications:

dc and ac compatible with the input	Single-phase: AC 220v±15%, (45-450)HZ, DC(230-330)v.
dc and ac compatible with the input	Three-phase: AC (330-430)v, 50HZ, DC(450-600)v.
Output voltage	0~12v(adjustable)
Output current	0~10A, 0~20A, 0~40A, 0~60A, 0~80A(adjustable)
Voltage regulation	Voltage stability:≤0.2%
Load regulation	Voltage stability:≤1%, constant current:≤2%
Ripple voltage	≤2%
Accuracy rating	±2.%
Digital display	the accuracy of output voltage:±1.5%, the accuracy of output current: ±2.0%
Protection	overvoltage, over current, overload, over temperature and short-circuit, as well as automatic jump protection
Humidity	≤90%
