Portable projector mobile smart projector 1080P supply 8G/16G for choice
Product performance parameters
name |
product type |
a portable intelligent projector |
optical |
Projection technology |
DLP |
Display chip |
0.3DMD+RGBLED |
|
projector features |
interactive |
|
Lamp brightness |
1000 Under the lumens |
|
lamp type |
LEDlamp |
|
uniform brightness |
>85% |
|
contrast ratio |
2000:1 |
|
standard resolution |
WVGA 854*480 |
|
projection |
projection than |
1.19:1 |
projection size range |
30-120 inches |
|
projection distance |
1-5 m |
|
screen width than |
4:3/16:9/16:10 |
|
trapezoidal correction |
vertical: manual, ± 40 degrees |
|
projection method |
positive projection |
|
system parameters |
CPU |
RK3128 |
frequency |
four nuclear ARM Cortex-A7 CPU with up to 1.2GHz |
|
cache |
1G DDR3 |
|
memory |
8GB |
|
operating system |
Android 4.4 |
|
video support |
MPEG-1,MPEG-2,MPEG-4 Real-time video decoder,H.263,H.264,H.265,VC-1,RV,VP6/ VP8,Sorenson Spark,MVC |
|
audio support |
MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
|
picture support |
supports variety of image formats browsing (jpg,png,bmp etc.) |
|
Flash support |
supports flash 11.1 |
|
extended stored |
support the TF card and hard disk |
|
USB |
USB HOST 2.0 |
|
TFcard |
the biggest support 32G |
|
HDMI |
HDMI 1.4 |
|
bluetooth |
BT 4.0 |
|
Wifi |
2.4G/5G Wifi |
|
remote control |
Supports infrared and 2.4 G wireless remote control |
|
power input parameters |
5V-2.5A DC |
|
Input support |
USB, IR |
|
output interface |
HDMI |
HDMI1.4 |
2×USB |
support USB hard disk data read |
|
1× headphone output |
audio output. The 3.5 mm connector (can answer the headset or speaker) |
|
1×5V DC input |
power adapter:DC 5V 2.5A |
|
|
electrical specifications |
machine power consumption |
5W |
power performance |
AC100-240V,50/60Hz |
|
built-in 3.7 V battery |
4200MA |
|
|
other parameter |
Product size |
145×80×17.5mm |
product weight |
// |
|
Other color gamut performance |
>100%NTSC |

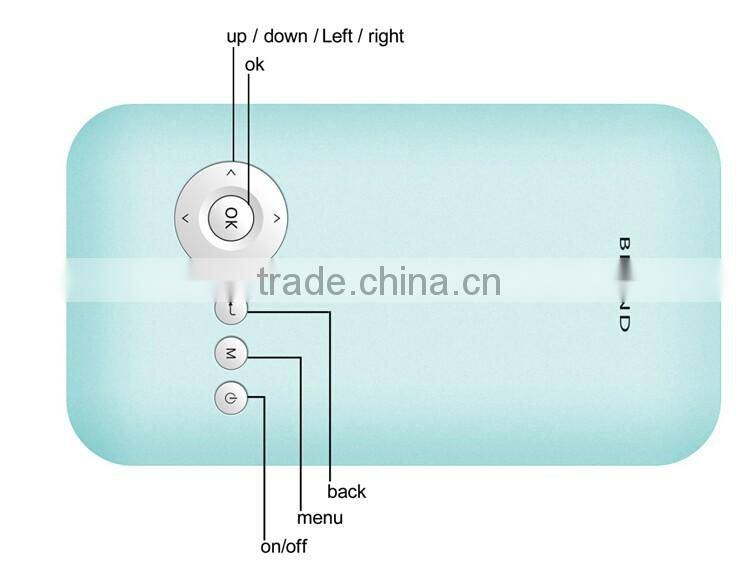

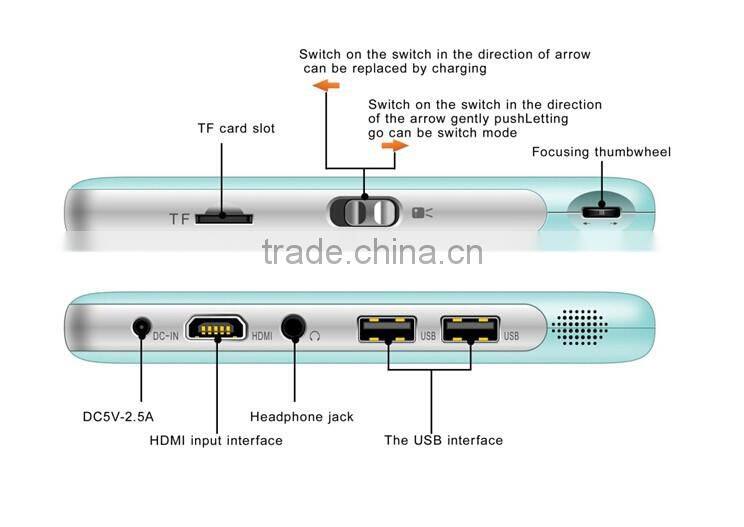

The fuselage interface buttons

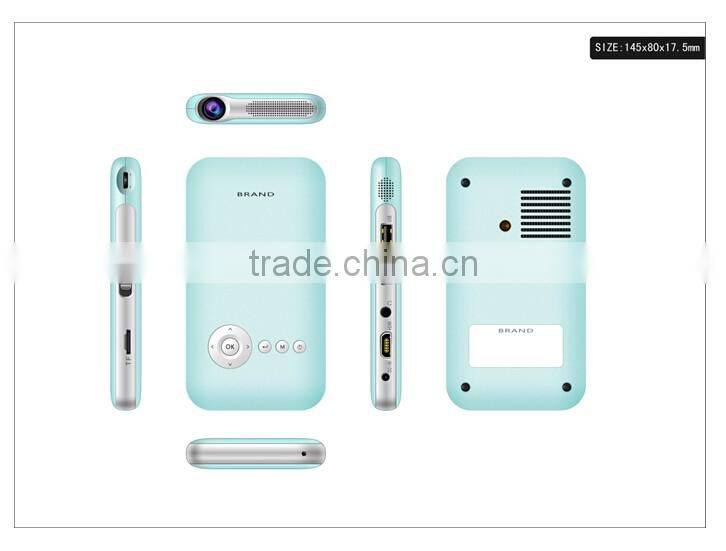

The whole machine size is 145mmx80mmx17.5mm

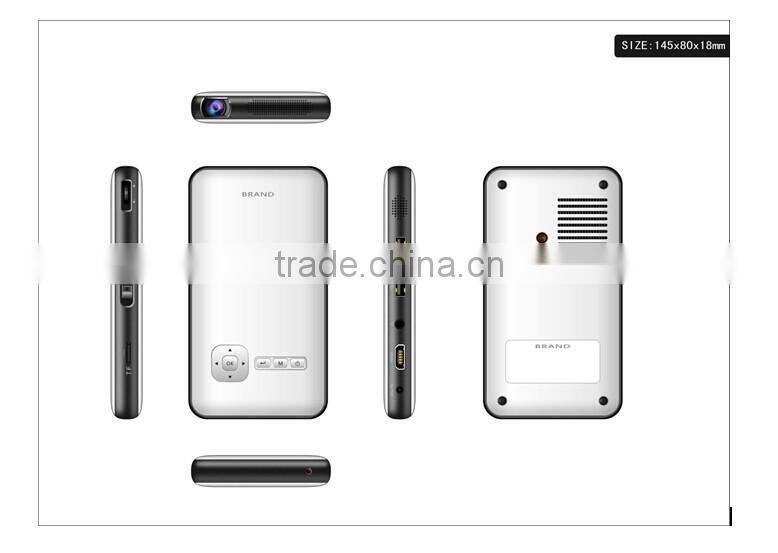

3 Six view that
4 Open

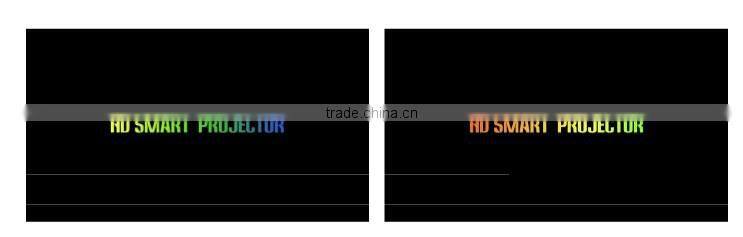

Boot: connected to external power supply, short press the power button shows boot LOGO and automatic operation system, enter the main interface.Turn on thetelevision, the use of TV remote control or the mouse, television menu operation.

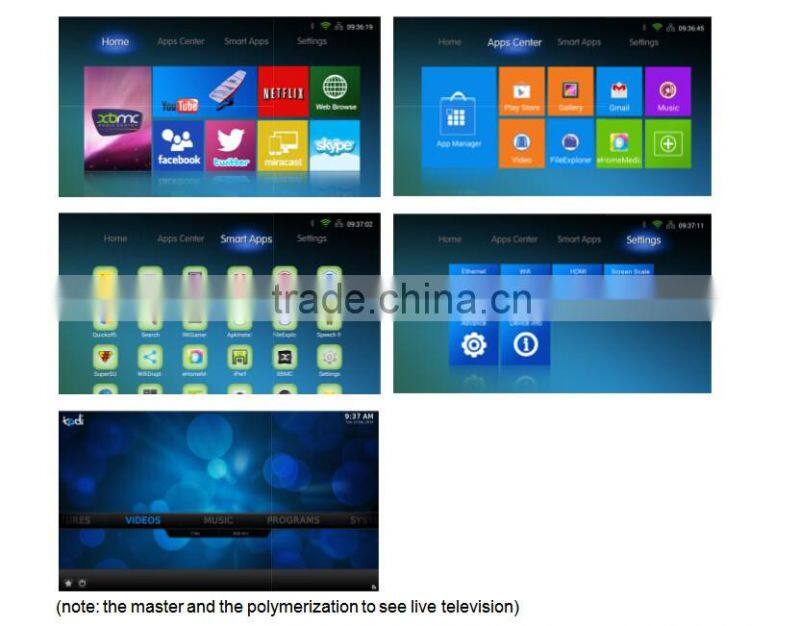

5 The main interface

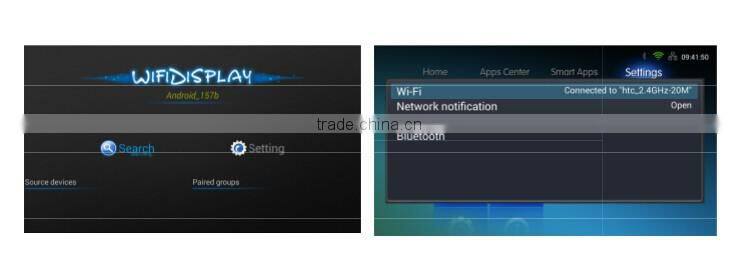

6 To connect to the Internet
1. Open the application in the main interface TAB, click "Settings".
2. Select "wireless network" after checked after the "wifi", click "wifi Settings".
3. Click on the network to connect to connect, if the connected network need password, password is in the network,After input the correct password, WALN show "connected".
4. After the completion of the network Settings, return to the main interface, then, can use the Internet, can be in the browser's address bar enter the required login url.

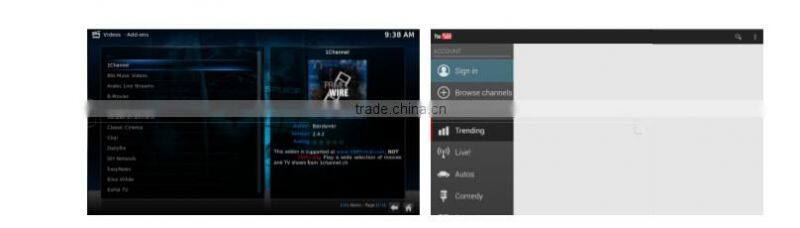

7 Network TV
1. After the success of the network connections, click on the main interface application icon, and enter the multifunctional application bar, click on the web TV interface, all the polymerization and television master can see live on TV.
2. The built-in 500 + TV, can add to the 1000 +, support back function.
Important: supports Full HD 1080P format video decoding/HD broadcast has the strongest video decoding chip, providing 1080P HD video playback capabilities.
8 Video playback
1. The projector itself is embedded in a variety of player APP software, no need to install the software, such as to install the other information Put the device is available to download.
2. Rich and colorful, film and television information, and cooperation resource combining, long-term to provide a stable sources, updated daily.Millions of movie show rich and colorful, just click on the love art, such as youku video player software.
Important note: audio and video can kao into the TF card or mobile hard disk.

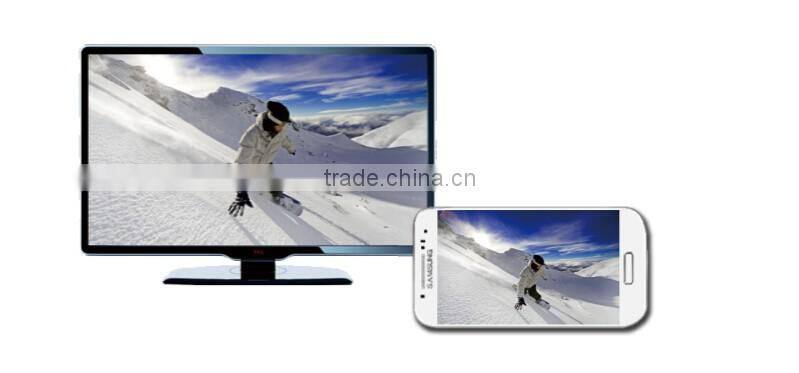

9 Mobile push
1. The pictures on the iphone/ipod and computer video shot into the TV.
2. The iphone/the device will automatically find the TV, without having to install any APP, pictures, video, music can be Pushed to the super on TV.
10 And storage
1. The interface of USB cable, plug in the machine on the right side of the USB interface, the other end of the plug in the computer's USB interface On after connecting, drag down the status bar, click on the "USB connection," tip "USB connected".
2. If the connection is successful, your computer will appear new drive letter.
3. Open "my computer" on the computer desktop, double-click to open have good new mobile disk, can be right Copies of the data in the machine, cut.
Important: click the removable disk arrow icon at the computer screen, after a small pop-up window safely delete removable disk. Security delete files can prevent the damage and loss.

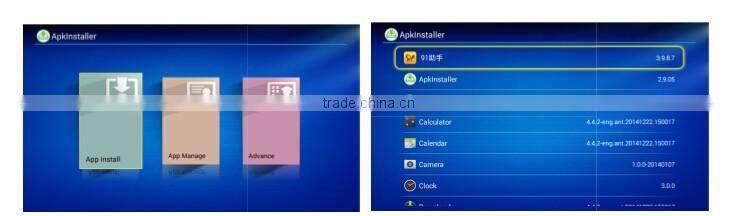

11 Application software
1. The operating system for Android version 4.4, support many commonly used third-party application software format.
2. If you want to install the application, should be *. Apk format copy to your TV box, and then start the TV box, And open the resource manager, click to install *. The apk.
3. Installed applications, will be displayed in the application bar.
4. A shortcut to the installed software ICONS, can be moved to the desktop, method is to long press the icon to move and drag and drop to the desktop page, you can let go.
5. To uninstall software, click "Settings" to enter the Settings menu, click into the"application" column, then click "Manage applications", click you want to uninstall the software, and then click the "uninstall".
12 Failure to improve prompt
A network connection
Test network
Minimum bandwidth requirements: 2 m dedicated broadband recommended in parts of China telecom, China unicom, China railcom,Is not recommended, and the Great Wall broadband local radio and television widescreen and urban villages Shared networking way.
Prepare the router
Routers must be with the function of automatic dial-up Internet access, China telecom and China unicom combined wireless ADSL cats no routing, use PPPOE dial function to surf the Internet.
Wired network connection
Local connection through a router, plug and play, as long as the plug in cable, in set to obtain IP address automatically,Local connection, LAN Shared or online video to watch.
Wireless network connection
Refers to through a router, search the WIFI hotspot signal network connection, realize the online play, LAN to be Shared operations, such as in the use of a wireless connection, need to be set network - choose wireless - search to the player frouter name - type router name - enter the router passwords - the connection is successful.
Lead time
Normally 20days after received deposited. According to real order quantity ,the lead time is different. According to Your special request ,the Lead Time is discussible. We can adjust our production time for your Urgent Order!
Payment:
we accept TT,L/C,Paypal,WU. 30% deposited,70% before shipment. Any other payment if fit for you,we can discuss it!
Product warranty
Warranty Term:12 Months
Return &refund terms
1) The items have 90days warranty. Defective products can be changed during the warranty.
2) Defective products must be returned within 30days from the shipping date, we will change another one for you or refund your money back.
3) A full refund (including shipping and handling charge) will be issued for any defective, damaged, or misrepresented item within 7days.
We are specialised in computer accessories and promotional gifts for more We are specialised in computer accessories and promotional gifts for more than 11 years, there are more than 200 kinds of products in our product line, contact us for more details without any hesitate!!!
