2015 SRCC, EN12975 Solar Keymark Solar Flat Plate Collector

FOB Price

US$ 100 - 1,000 / Set

10 Sets(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Evacuated Tube	Pressure	Pressurized
Circulation Type	Indirect / Closed Loop (Active)	Heating System	Thermosyphon (Passive)
Connection Type	Split	Installation	Freestanding
Housing Material	Stainless Steel	Certification	CE, Other, CE, SABS SRCC Solar Kermark
Capacity	150	Place of Origin	Zhejiang, China
Brand Name	DIYI	Model Number	DIYI-C01

Product Description

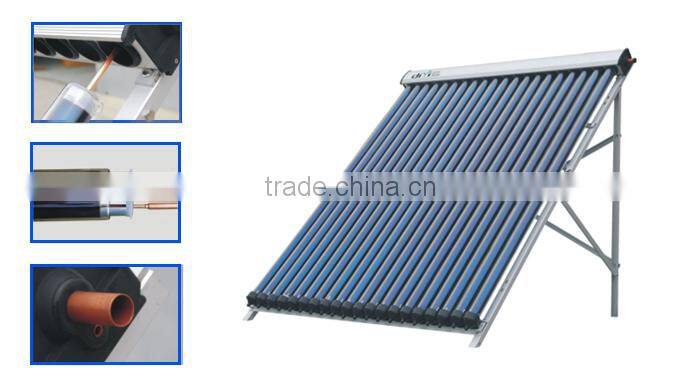

2015 SRCC, EN12975 solar keymark solar flat plate collector

Solar Water Heater Feature:

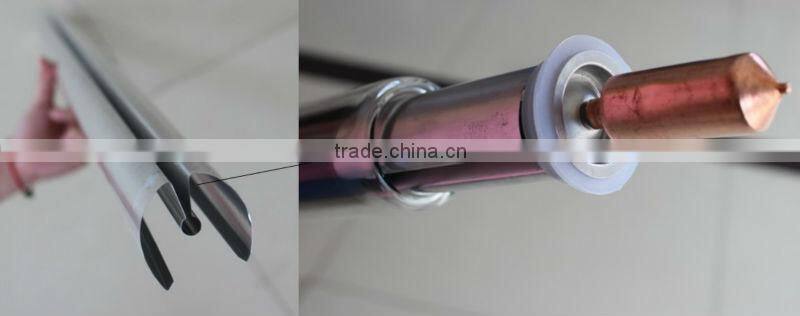

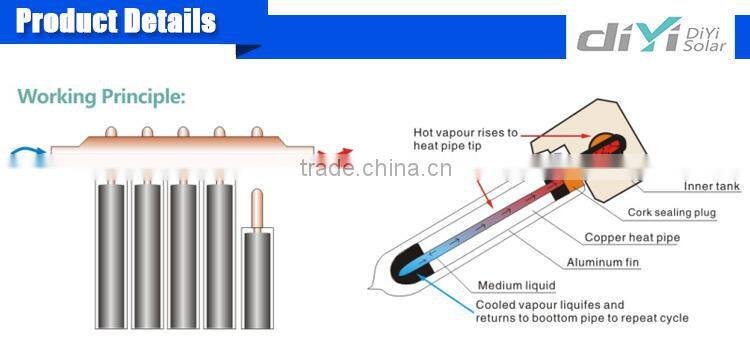

1.All the pipeline is made of red copper and conducted by heat transfer medium liquid. With the heat pipe in

the vacuum tube, so no water will flow in the vacuum tube

2.The manifold uses aluminum alloy for exterior, red copper for interior, also with fashion design

3.Withstand high pressure when it is working

4.It can be combined arbitrarily to meet the demand of large water consumption, and also could be combined

with existing pipeline

5.Each tube can work alone, so the solar collector can work even one tube is broken and easy to change if

necessary

Technical Parameters:

Manifold(interior):Red copper

Manifold(exterior):Aluminum alloy

Aluminium fin:1600 mm full length

Heat pipe: Red copper

Heat insulation layer: High density polyurethane foam 50mm/ Eco-friendly rockwool 50mm

Vacuum tube: 58*1800mm 0-50 degree

Hail resistance: 25mm

Max pressure: 6 bar

Heat pipe: Anti-freezing>-35℃

Daily efficiency:= >55%

Item No.	Solar Vacuum Tube		Absorber Area(m²)	Loading Qty / sets
Item No.	qty / pcs	size / mm	Absorber Area(m²)	20GP	40GP	40HQ
DIYI-C01-10	10	Φ58X1800	1.7X1.12	140	262	323
DIYI-C01-12	12	Φ58X1800	1.7X1.16	134	254	313
DIYI-C01-15	15	Φ58X1800	1.7X1.26	120	245	291
DIYI-C01-20	20	Φ58X1800	1.7X1.64	92	187	222
DIYI-C01-24	24	Φ58X1800	1.7X2.10	82	165	195
DIYI-C01-25	25	Φ58X1800	1.7X2.12	80	163	193
DIYI-C01-30	30	Φ58X1800	1.7X2.38	69	140	166

Installation:

1)Experienced Staff
2)Competitive Price
3)Prompt Delivery
4)Small orders acceptable
5)Superior Service

We hope to cooperate with more customers for mutual development and benefits.
