Promotional Electrical solar collector pipe

FOB Price

USD $150 - $800 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

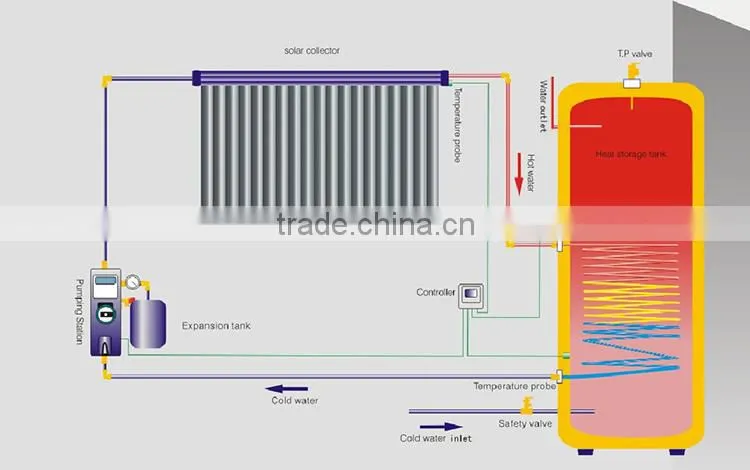

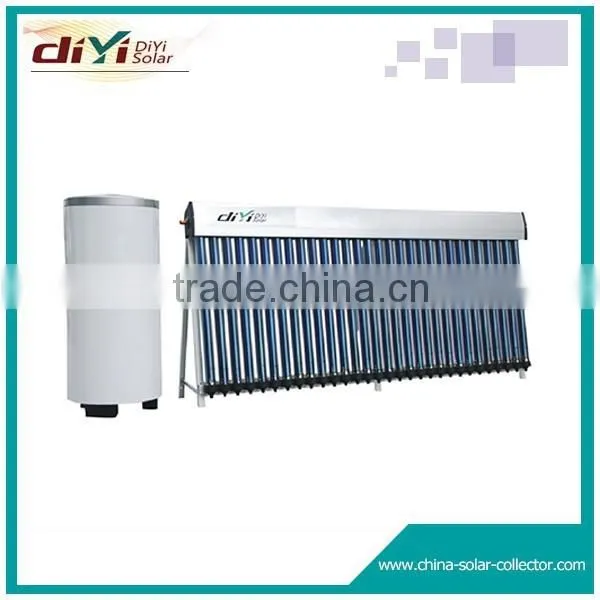

Balcony hanging solar water heater system

Feature and Advantage:

1.It is harmoniously with architecture. Its tank and solar collector are separated, the collector can be put on the balcony and window, wall etc.

2.It can withstand pressure of tap water when it works, working pressure 0.6 mpa .

3.With an intelligent controller and solar working stations, the whole system works automatically .

4.Stable and reliable performance

5.Saving place and being installed easily

6.Fashionable design and engergy-saving

Technical Parameters:

Inner tank:SUS 304-2B/1.5-2.5mm

Outer tank:Galvanized steel/0.5mm

Insulation:high density polyurethane foam 50mm

Vacuum tube: 58*850mm

SS-CU-AIN/ALN coating

Bracket:Aluminum alloy 1.8mm

Accessories:Circulation pump, expansion vessel, piezometer, flowmeter

Tank Capacity:100L,120L,150L

PARAMETER TABLE:

1)Experienced Staff
2)Competitive Price
3)Prompt Delivery
4)Small orders acceptable
5)Superior Service

We hope to cooperate with more customers for mutual development and benefits.
