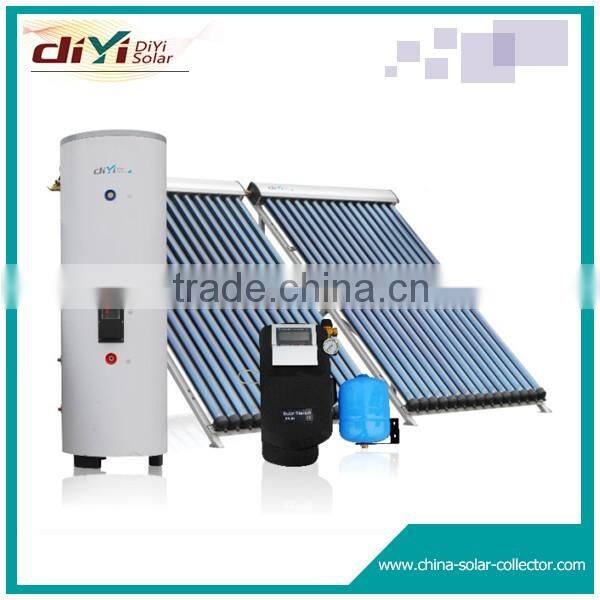

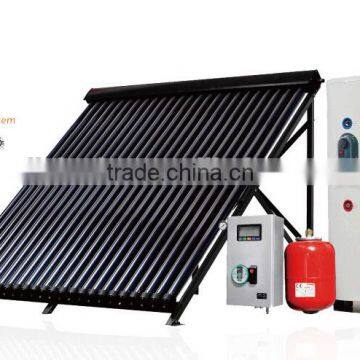

Split Pressurized Solar Water Heater System
Characteristics:
- DIYI-S01-15(150Litre,with 15tubes)

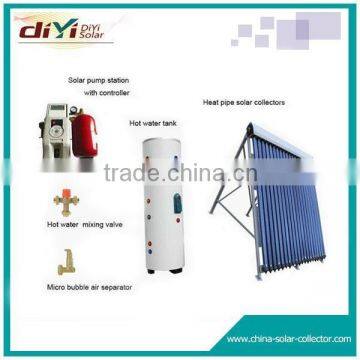

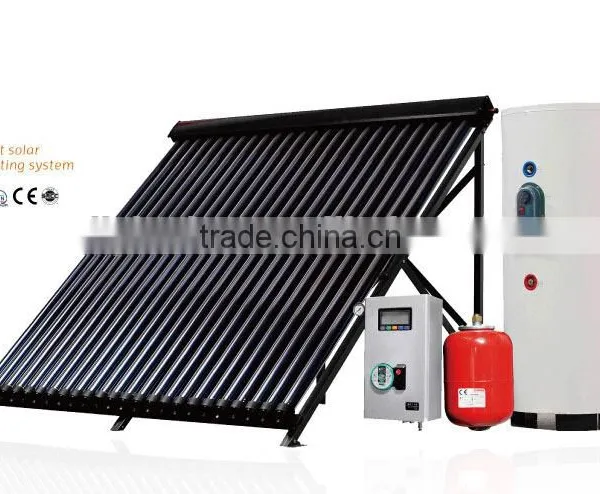

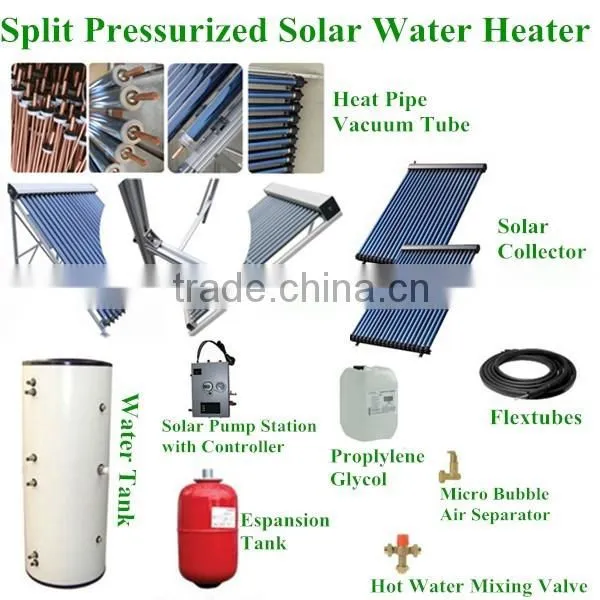

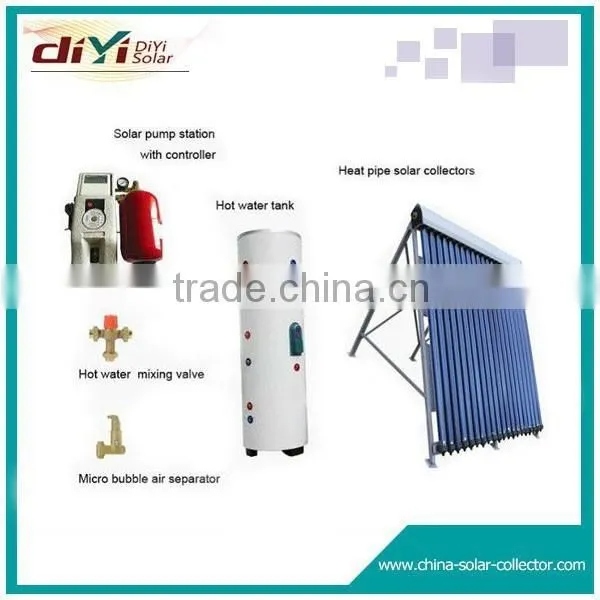

- The split solar water heater is composed by heat collector,storage tank,controller,working station and installation parts
- The tank inside the building, it has higher performance and lower heating loss. Modul design, arbitrary combination, harmony with the building perfectly.
- Collector is separated from storage tank, so the tank can be put in any place of house. And the collector can be put on the inclined or flat roof.
1. The upright tank can make the water temperature to a high level. It can hot the water instantly.
2. The tank inside the building, the hot water loses less energy than the normal one
3. The pressurized solar water heater collector and the water tank is separated, that makes the system combine with the building perfectly, which will reduce the sightseeing for the building and environment around
4. Back up with electric heater so that in the day without sunshine hot water can also be used
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming

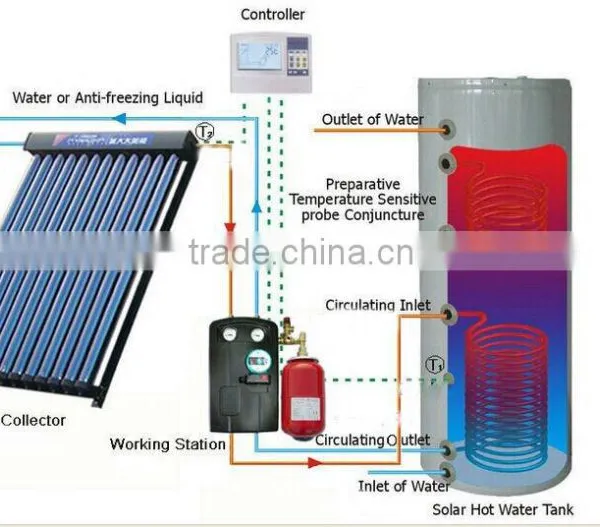

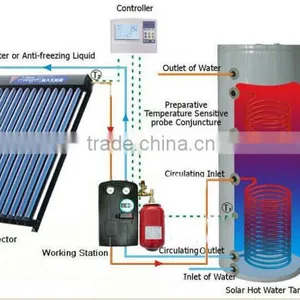

Split solar water heater working principle:
1. The collector absorbs solar energy and transmits it to the water tank through circulation
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
3. The circulation pump makes heat-conducting liquid circulate automatically

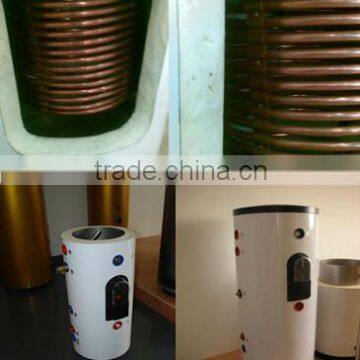

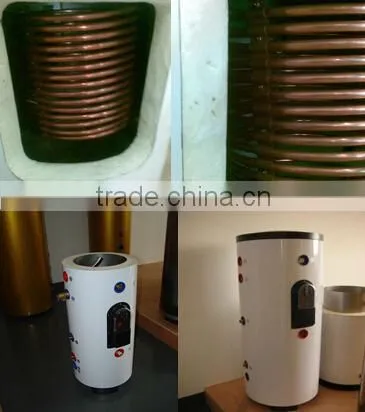

4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and tank doesn't reach the set value, the circulation pump will be shut automatically
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically
Technical Parameters:
- Inner tank: Φ360mm/SUS304-2B/1.5-2.5mm. Outer tank: Φ460mm/Galvanized steel/0.5mm
- It use Eco-friendly rockwool for insulation layer. Heat preservation: 72hours

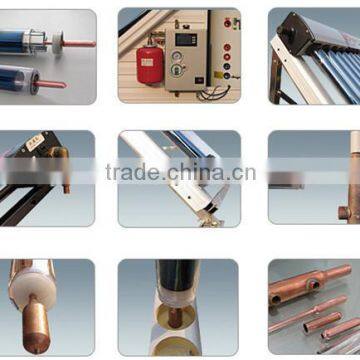

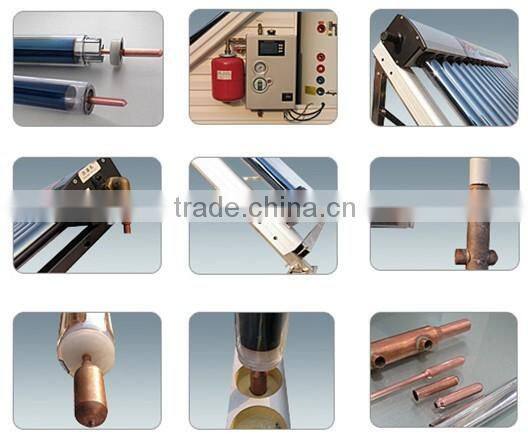

- Vacuum tube: 58x1800mm 1.6mm or 2.2mmthickness ALN-SS-CU coating
- Collector: Aluminum alloy casting and copper pipe channel
- Intelligent control and automatic operation
- No water in the tubes when it works, also the system controller has the anti-freezing function which the temperature circulation will operate while it reached the fixed temperature
- Could work at anytime and use enjoyably
| Type | Area(M2) | Pcs of Vacuum tube | Size of Vacuum tube | Volume(Liter) | 20GP/40GP/40HQ loading Quantity(Sets) |
| DIYI-S01-15 | 1.939 | 15 | 58*1800 | 150 | 29/59/70 |
| DIYI-S01-20 | 2.595 | 20 | 58*1800 | 200 | 22/46/54 |
| DIYI-S01-25 | 3.251 | 25 | 58*1800 | 25 | 20/40/48 |
| DIYI-S01-30 | 3.907 | 30 | 58*1800 | 30 | 18/38/45 |
1)Experienced Staff
2)Competitive Price
3)Prompt Delivery
4)Small orders acceptable
5)Superior Service
We hope to cooperate with more customers for mutual development and benefits.
