solar water heater system

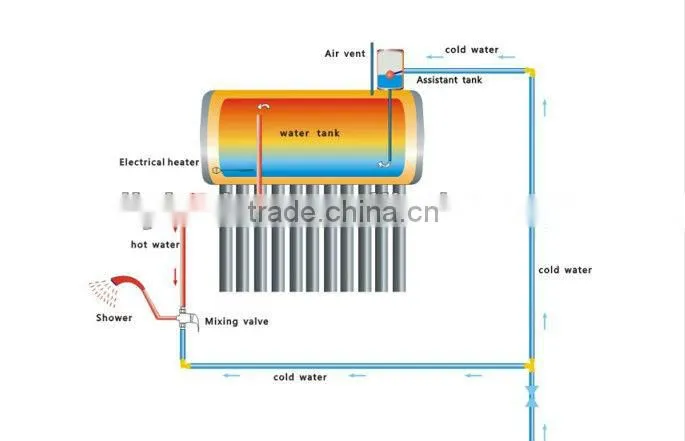

1. Working principle:
2. solar water heater system Feature:
This model solar water heater is one of the most favorite on the international market.It was scientifically and specially designed,is easy to install and operate.The important point is it can feed water automatically and ensure the outlet water as stable temperature,it will always provide you hot water.

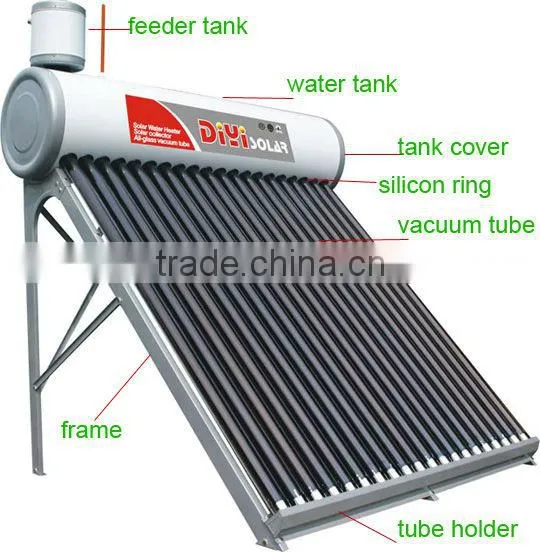

3. solar water heater system Product Detail:
solar water heater system Technical Parameters:
Inner tank: SUS 304-2B/0.41mm
Outer tank: Galvanized steel/0.41mm
Insulation: high density polyurethane foam 50mm
Vacuum tube: 58*1800mm
AL-N-AL coating
Bracket:Galvanized steel 1.5mm
0-50 degree
Accessories:UV stablilized high temperature silicon
Capacity: 100L 150L 200L 250L 300L
Type |
Area(M2) |
Vacuum tube |
Volume(L) |
GrossWeight (KG) |
20GP/40GP/40HQ Loading Qty(sets) |
||
Φ(mm) |
Length(mm) |
Qty(pcs) |
|||||
DIYI-NP01-15 |
1.979 |
58 |
1800 |
15 |
150 |
78 |
53/109/130 |
DIYI-NP01-18 |
2.382 |
58 |
1800 |
18 |
180 |
85 |
48/93/112 |
DIYI-NP01-20 |
2.651 |
58 |
1800 |
20 |
200 |
94 |
40/82/98 |
DIYI-NP01-25 |
3.189 |
58 |
1800 |
25 |
250 |
97 |
30/64/75 |
DIYI-NP01-30 |
3.995 |
58 |
1800 |
30 |
300 |
112 |
25/52/62 |

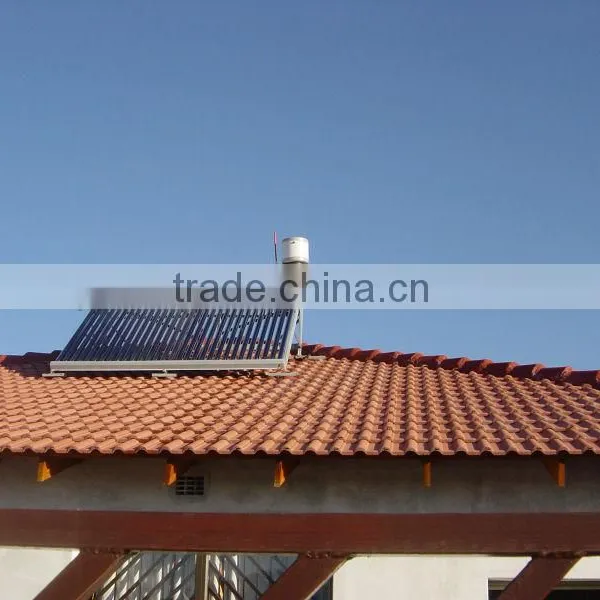

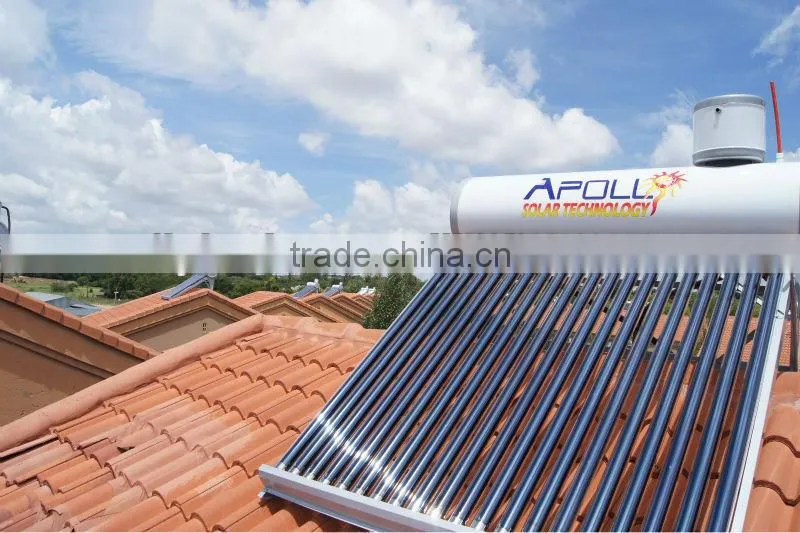

4. solar water heater system Client Installing Photo:
