Tank Capacity 200L, 250L compact non-pressurized vacuum tube solar water heater

FOB Price

USD $90 - $240 / Unit

1 Unit(Min.Order)

Supply Ability 1000 Unit / Units per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Other, Evacuated Tube, DIYI-NP02	Pressure:	Unpressurized	Circulation Type:	Direct / Open Loop (Active)
Heating System:	Thermosyphon (Passive)	Connection Type:	Direct-Plug	Installation:	Freestanding
Housing Material:	Other, Galvanized Steel	Certification:	CE, Other, CE, ISO9001	Capacity:	200
Place of Origin:	Zhejiang, China	Brand Name:	DIYI&OEM	Model Number:	DIYI-NP02

Product Description

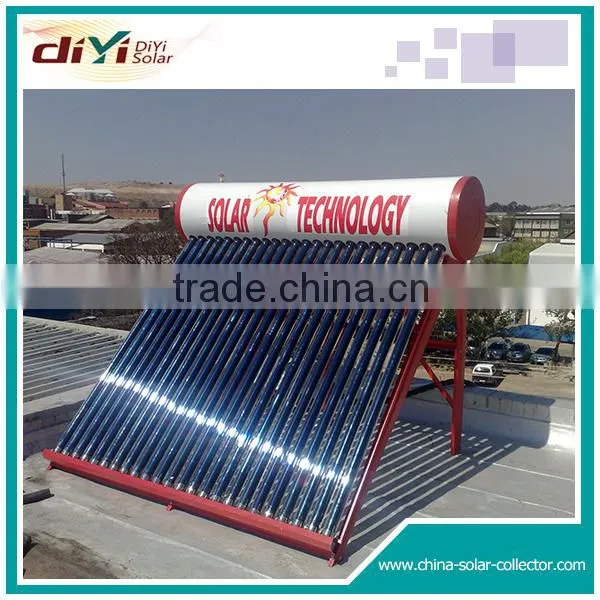

Tank Capacity 200L, 250L compact non-pressurized vacuum tube solar water heater

Solar Water Heater Feature:

This type uses all-glasses evacuated tubes as the solar collector for absorbing and transferring the sun energy into heat energy.The high absorption and low emittance rate of DIYI’ vacuum tube layer coating is unique.Depending on the different density between hot water and cold water,the water flowing cycle is crated in the tube.Hot water flows automatically upwards while the cold water flows down.The water in the storage tank will be heated from this natural circulation.

Technical Parameters:

Inner tank: SUS 304-2B/0.41mm

Outer tank: Galvanized steel/0.41mm

Insulation: High density polyurethane foam 50mm

Vacuum tube:58*1800mm AL-N-AL coating

Bracket:Galvanized steel 1.5mm 0-50 degree

Capacity:150L 180L 200L 250L 300L

Type	Area(m2)	Vacuum tube			Volume(L)	Gross Weight(kg)
Type	Area(m2)	Diameter(mm)	Length(mm)	Quantity(pcs)	Volume(L)	Gross Weight(kg)
DIYI-NP02-15	1.979	58	1800	15	150	78
DIYI-NP02-18	2.382	58	1800	18	180	85
DIYI-NP02-20	2.651	58	1800	20	200	94
DIYI-NP02-25	3.189	58	1800	25	250	97
DIYI-NP02-30	3.995	58	1800	30	300	112

1)Experienced Staff
2)Competitive Price
3)Prompt Delivery
4)Small orders acceptable
5)Superior Service

We hope to cooperate with more customers for mutual development and benefits.
