high pressure solar water heater system with heat pipe vacuum tube   Specification:

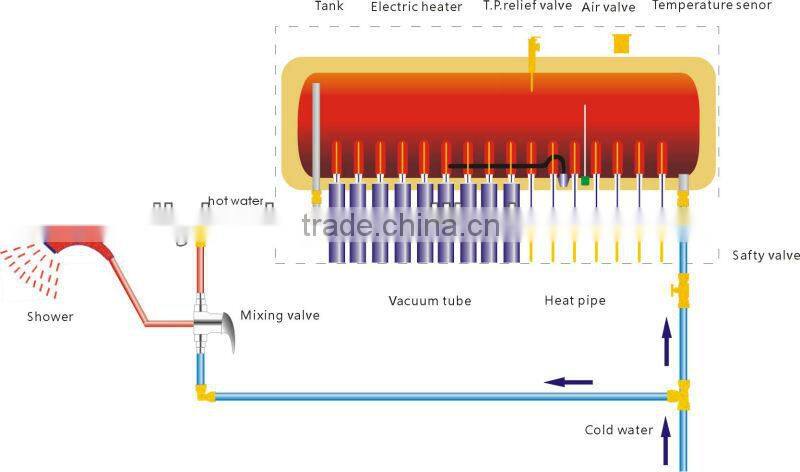

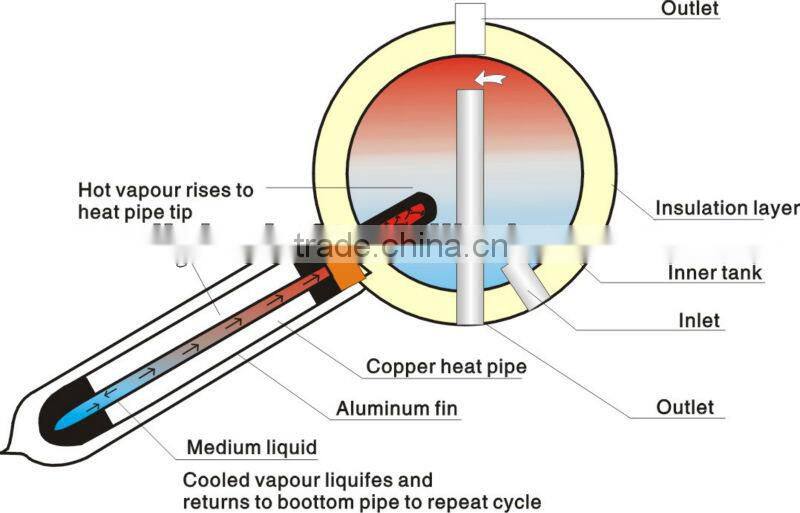

1.  high pressure solar water heater system with heat pipe vacuum tube Working Principle:

  high pressure solar water heater system with heat pipe vacuum tube

 Feature: This solar water heater system works with high pressure,so it can be connected with city water directly. With the heat pipe in the vacuum tube,therefore no water in the tube,each tube can work alone,so the solar colletcor can work even one tube is broken.

1. Highly efficient absorber of high performance with daily average efficiency over 50%
2. Start up quickly,the water is heated rapidly by heat pipe which will transfer the heat energy into the tank
3. Withstand pressure of 6 bar,more comfortable to use

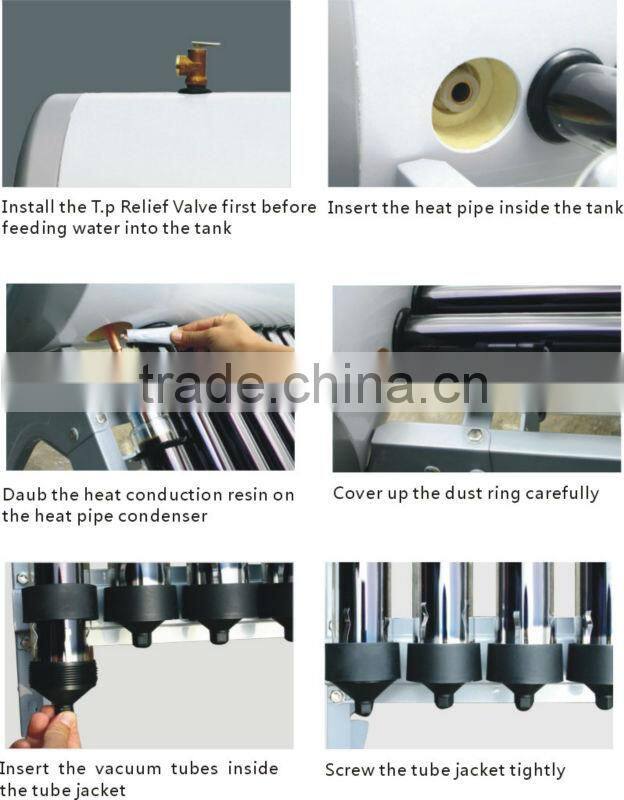

4. Simple structure,easy to assembly and install
5. Can be used all year even in the cold climate area
6. Long service life,can be use over 15 years

2.  high pressure solar water heater system with heat pipe vacuum tube Details:

high pressure solar water heater system with heat pipe vacuum tube Technical Parameters:

high pressure solar water heater system with heat pipe vacuum tube  Inner tank: SUS 304-2B/1.2mm

high pressure solar water heater system with heat pipe vacuum tube  Outer tank: Galvanized steel/0.41mm

high pressure solar water heater system with heat pipe vacuum tube  Insulation: high density polyurethane foam 50mm

high pressure solar water heater system with heat pipe vacuum tube  Vacuum tube: 58*1800mm SS-CU-AIN/ALN coating

high pressure solar water heater system with heat pipe vacuum tube  1.5mm 0-50 degree

high pressure solar water heater system with heat pipe vacuum tube  Max pressure: 6 bar

high pressure solar water heater system with heat pipe vacuum tube  Capacity: 100L 150L 200L 250L 300L

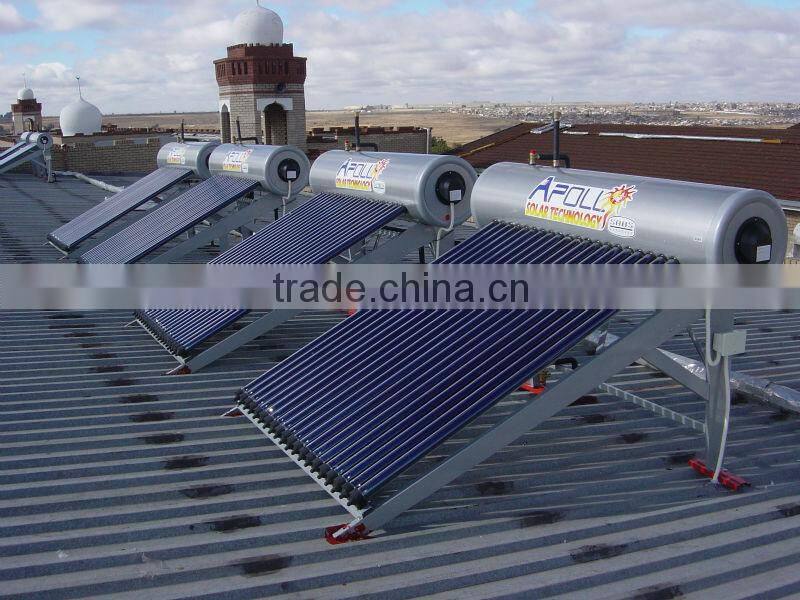

3.  high pressure solar water heater system with heat pipe vacuum tube Client Installing Photo:

  high pressure solar water heater system with heat pipe vacuum tube

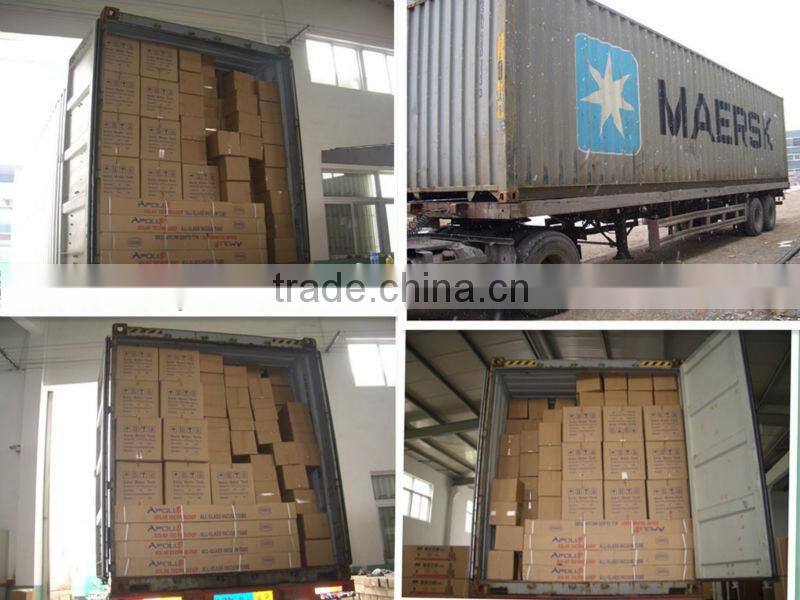

 4.  high pressure solar water heater system with heat pipe vacuum tube Loading Container Photo:
