Full color provide integrative preheat solar water heater

Full color provide integrative preheat solar water heater Feature:

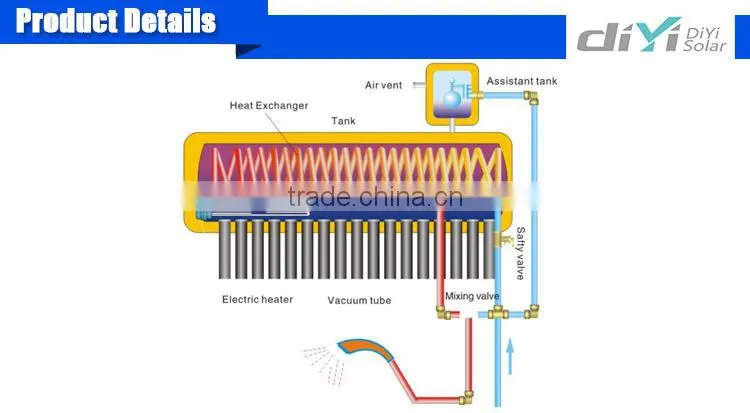

One copper coil inside the tank as the heat exchanger.When water flows into the copper coil,it absorbs the heat of the water in the tank via the copper coil,therefore the water tank is just a heat storage tank.

1. Instant heat exchange and plentiful warm water for use
2. make sure the water quality
3. works with pressure
4. output water temperature is stable,so it is very comfortable and safe to use
5. hot and cold water flow is seperated
6. the copper coil is with high quality and high grade material
7. easy to operate,reliable to use and intelligent to work

Technical Parameters:

Inner tank: SUS 304-2B/0.41mm

Outer tank: Galvanized steel/0.41mm

Copper coil: Φ12mm with thinkness 0.8mm

Insulation:  High density polyurethane foam 50mm

Vacuum tube: 58*1800mm

                                     SS-CU-AIN/ALN or AL-N-AL coating

Bracket:Galvanized steel 1.5mm   0-50degree

Capacity: 200L 240L 300L 360L

1)Experienced Staff
2)Competitive Price
3)Prompt Delivery
4)Small orders acceptable
5)Superior Service

We hope to cooperate with more customers for mutual development and benefits.
