| Automatic operation efficiency of screw jack |
Feature:

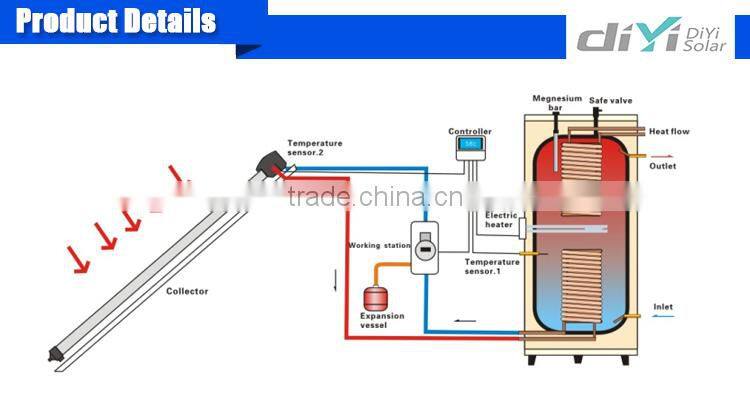

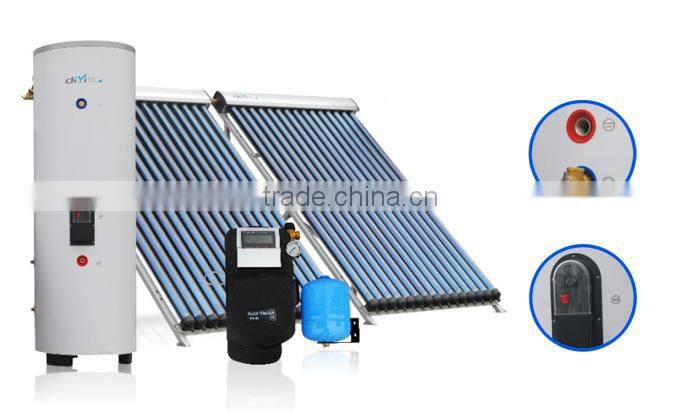

1.The split solar water heater is composed by heat collector, storage tank, controller, working station and installation parts
2.Collector is separated from storage tank, so the tank can be put in any place of house. And the collector can be put on the inclined or flat roof
3.Module design, arbitrary combination, harmony with the building perfectly
4.Intelligent control and automatic operation
5.Anti-freeze: No water in the tubes when it works, also the system controller has the anti-freezing function which the temperature circulation will operate while it reached the fixed temperature
6.Multifunction: bathing, washing, domestic heating etc
7.Could work at anytime and use enjoyably |
Technical Parameters:
Inner tank: SUS 304-2B/1.5-2.5mm
Outer tank: Galvanized steel/0.5mm
Insulation: High density polyurethane foam 50mm
Vacuum tube:58*1800mm SS-CU-AIN-ALN coating
Collector: Aluminum alloy casting and copper pipe channel
Bracket: Aluminum alloy 1.5mm 0-50 degree
Accessories: Circulation pump,expansion vessel, piezometer, flowmeter
Working pressure: 0.7mpa
Capacity: 150L 200L 250L 300L
| Type | Area(m2) | Vacuum tube | Volume(L) | ||
| Diameter(mm) | Length(mm) | Quantity(pcs) | |||
| DIYI-S01-15 | 1.939 | 58 | 1800 | 15 | 150 |
| DIYI-S01-20 | 2.595 | 58 | 1800 | 20 | 200 |
| DIYI-S01-25 | 3.251 | 58 | 1800 | 25 | 250 |
| DIYI-S01-30 | 3.907 | 58 | 1800 | 30 | 300 |
1)Experienced Staff
2)Competitive Price
3)Prompt Delivery
4)Small orders acceptable
5)Superior Service
We hope to cooperate with more customers for mutual development and benefits.
