Easy to change 78% china highest efficiency solar collector

 Easy to change 78% china highest efficiency solar collector

Features:

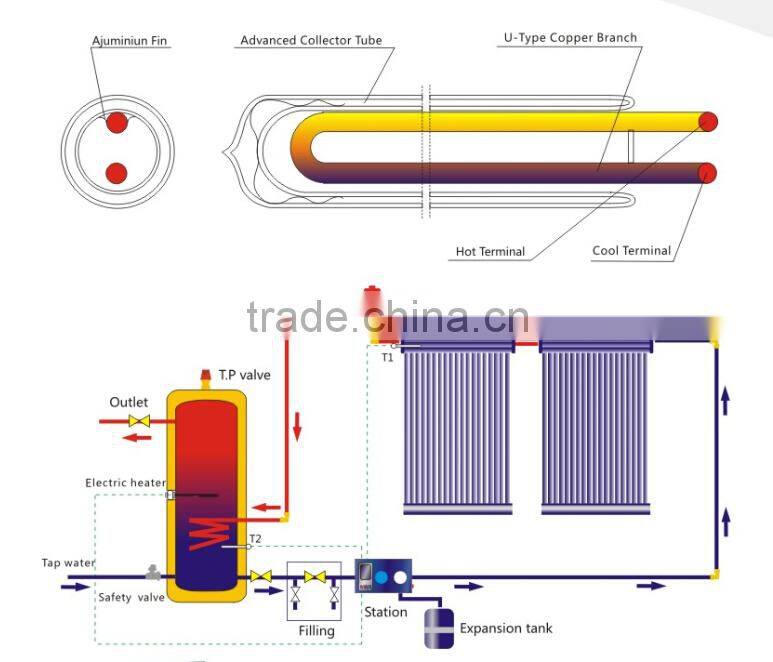

1.All the pipeline is made of red copper and conducted by heat transfer medium liquid.With the heat pipe in the vacuum tube,so no water will flow in the vacuum tube.

2.The manifold uses aluminum alloy for exterior, red copper for interior, also with fashion design;

3.Withstand high pressure when it is working;

4.It can be combined arbitrarily to meet the demand of large water consumption, and also could be combined with existing pipeline;

5.Each tube can work alone, so the solar collector can work even one tube is broken and easy to change if necessary.

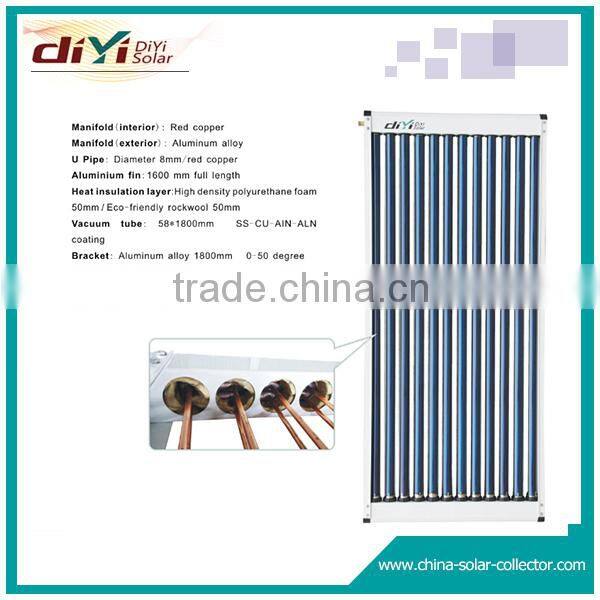

Solar collector Technical parameters:

1.Manifold(interior): red coppper

2.Manifold(exterior): aluminum alloy

3.Aluminum fin: 1600mm full length

4.Heat pipe: red copper

5.Heat insulation layer: high density polyurethane foam 50mm/ eco-friendly rockwool 50mm

6.Bracket: aluminum alloy 1800mm 0-50degree

7.Hail resistance: 25mm

8.Max pressure: 6 bar

9.Heat pipe: anti-freezing >-35°C

10.Daily efficiency: ≥55%
