Compact Copper Coil Heat Exchang Pre Heat Pressure Solar Energy Water Heater Specification:

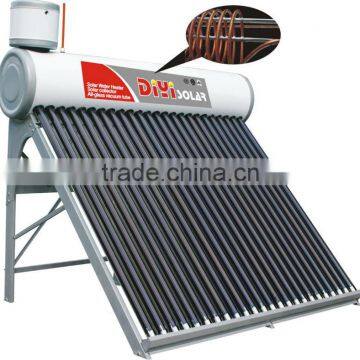

Compact Copper Coil Heat Exchang Pre Heat Pressure Solar Energy Water Heater
Compact Copper Coil Heat Exchang Pre Heat Pressure Solar Energy Water Heater Feature:

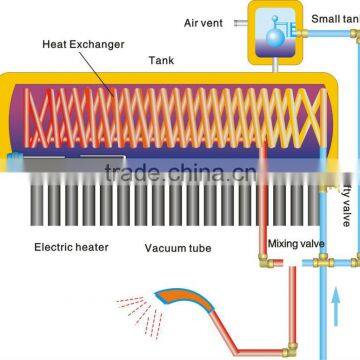

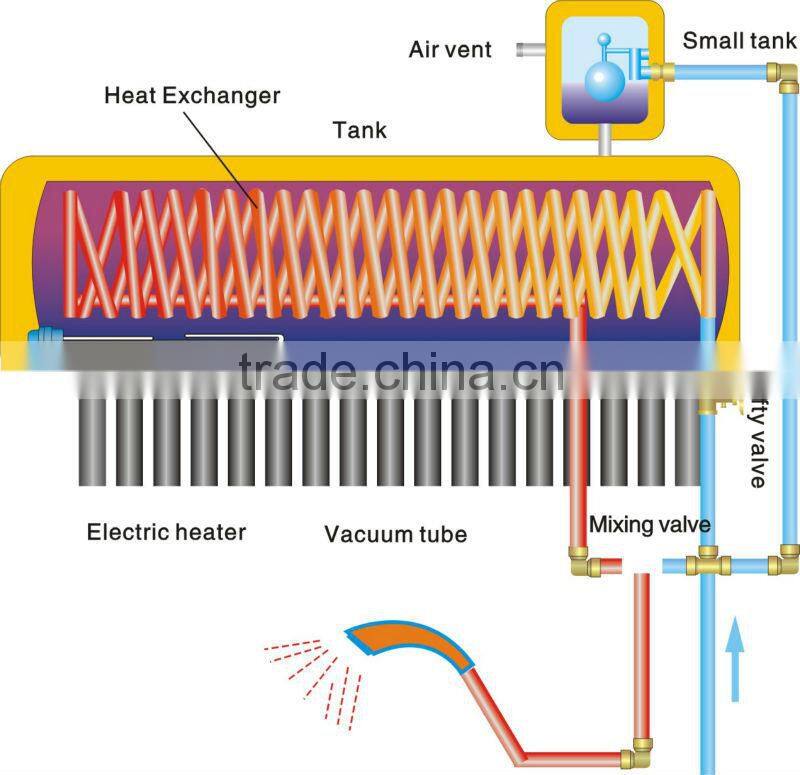

One copper coil inside the tank as the heat exchanger.When water flows into the copper coil,it absorbs the heat of the water in the tank via the copper coil,therefore the water tank is just a heat storage tank.
- Instant heat exchange and plentiful warm water for use
- make sure the water quality
- works with pressure
- output water temperature is stable,so it is very comfortable and safe to use
- hot and cold water flow is seperated
- the copper coil is with high quality and high grade material
- easy to operate,reliable to use and intelligent to work

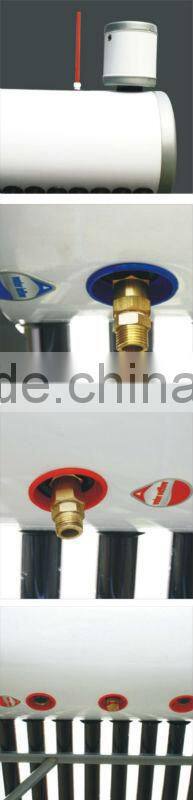

2. Compact Copper Coil Heat Exchang Pre Heat Pressure Solar Energy Water Heater Details:
Compact Copper Coil Heat Exchang Pre Heat Pressure Solar Energy Water Heater Technical Parameters:
Inner tank: SUS 304-2B/0.41mm
Outer tank: Galvanized steel/0.41mm
SUS304-2B/0.41mm

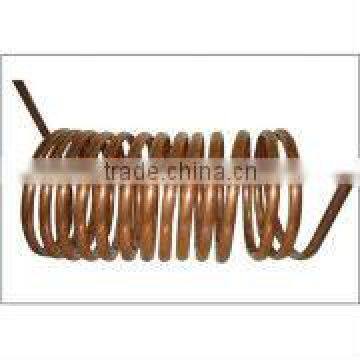

Copper coil: Φ12mm with thinkness 0.8mm
Insulation: high density polyurethane foam 50mm

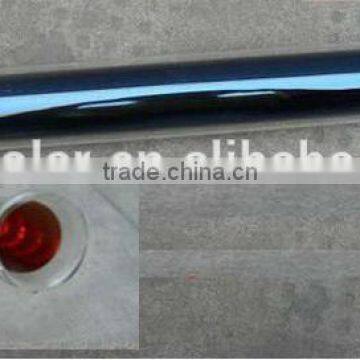

Vacuum tube:58*1800mm
SS-CU-AIN/ALN or AL-N-AL coating
Bracket:Galvanized steel 1.5mm/SUS 201 1.2mm
20/25/38/45/50 degree
Capacity: 210L 240L 300L 360L

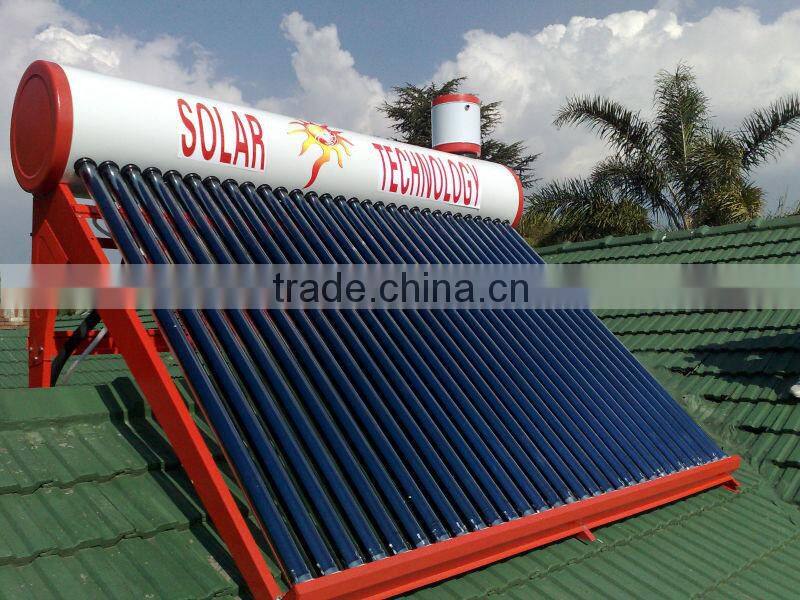

3. Compact Copper Coil Heat Exchang Pre Heat Pressure Solar Energy Water Heater Client Installing Photo:
4. Compact Copper Coil Heat Exchang Pre Heat Pressure Solar Energy Water Heater Loading Container Photo:
Compact Copper Coil Heat Exchang Pre Heat Pressure Solar Energy Water Heater
| Item No. | Solar Vacuum Tube | Collector | Tank Capacity | Absorber Area (m2) | Loading Qty / sets | |||
| qty / pcs | size / mm | 20GP | 40GP | 40HQ | ||||
| DIYI-HP01-10 | 10 | Φ58X1800 | 1 pc | 100 | 1.7x0.80 | 68 | 136 | 165 |
| DIYI-HP01-15 | 15 | Φ58X1800 | 1 pc | 150 | 1.7x1.15 | 53 | 109 | 130 |
| DIYI-HP01-18 | 18 | Φ58X1800 | 1 pc | 180 | 1.7x1.40 | 48 | 93 | 112 |
| DIYI-HP01-20 | 20 | Φ58X1800 | 1 pc | 200 | 1.7x1.55 | 40 | 82 | 98 |
| DIYI-HP01-25 | 25 | Φ58X1800 | 1 pc | 250 | 1.7x1.87 | 30 | 64 | 75 |
| DIYI-HP01-30 | 30 | Φ58X1800 | 1 pc | 300 | 1.7x2.35 | 25 | 52 | 62 |
