Specifications
low pressure vacuum tube solar water heater with Inmetro certification1,high effiencicy vacuum tube
2,more than 10 years use

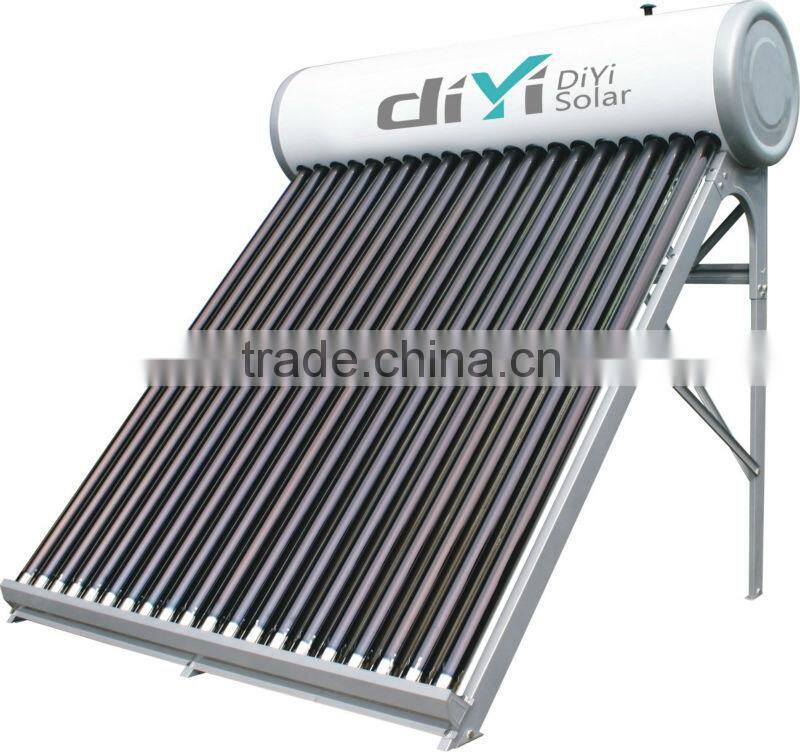

low pressure vacuum tube solar water heater with Inmetro certification
Model: DIYI-NP01
1. Working principle and feature:
This system relies on natural circulation, the water in the vacuum tube will be hot after the coating layer absorbs solar energy. As we know, hot water is lighter and cold water is heavier, so hot water will flow into tank and cold water will flow to vacuum tube bottom, this circulation continues because of different water temperature between the tank and vacuum tube. At last, the water temperature in tank vacuum tube will be the same, and circulation will stop. Then you can get hot water after several hours.
2. low pressure vacuum tube solar water heater with Inmetro certification Specification:
Inner tank: SUS 304-2B/0.5mm
Outer tank: Galvanized steel/0.4mm
Insulation: high density polyurethane foam 50mm

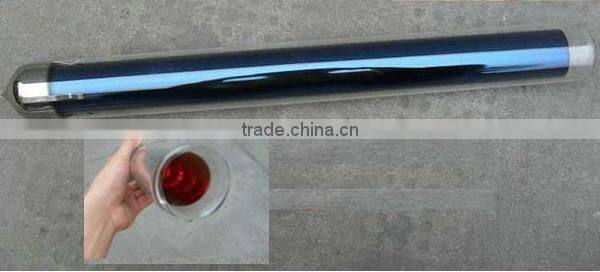

Vacuum tube:SS-CU-AIN/ALN coating, 58*1800mm, thickness, 1.7mm
Bracket:Galvanized steel 1.5mm, 20/25/38/45/50 degree
Capacity:100L 150L 200L 250L 300L
Testing Pressure: 1.0Mpa
Working Pressure: 0Mpa

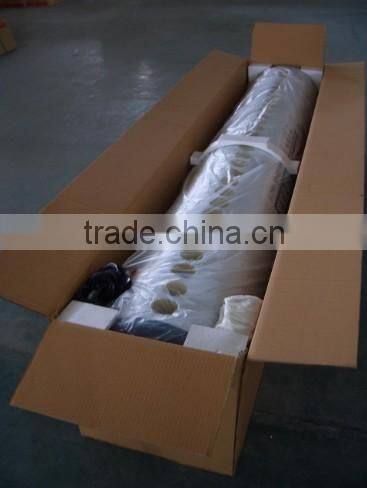

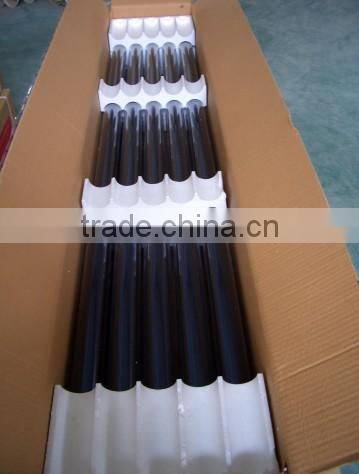

3. Container Loading Information:
| Item No. | Solar Vacuum Tube | Tank Capacity | Absorber Area (m2) | Loading Qty / sets | |||
| qty / pcs | size / mm | 20GP | 40GP | 40HQ | |||
| DIYI-NP01-10 | 10 | Φ58X1800 | 100 | 1.7x0.80 | 68 | 136 | 165 |
| DIYI-NP01-15 | 15 | Φ58X1800 | 150 | 1.7x1.15 | 53 | 109 | 130 |
| DIYI-NP01-18 | 18 | Φ58X1800 | 180 | 1.7x1.40 | 48 | 93 | 112 |
| DIYI-NP01-20 | 20 | Φ58X1800 | 200 | 1.7x1.55 | 40 | 82 | 98 |
| DIYI-NP01-25 | 25 | Φ58X1800 | 250 | 1.7x1.87 | 30 | 64 | 75 |
| DIYI-NP01-30 | 30 | Φ58X1800 | 300 | 1.7x2.35 | 25 | 52 | 62 |

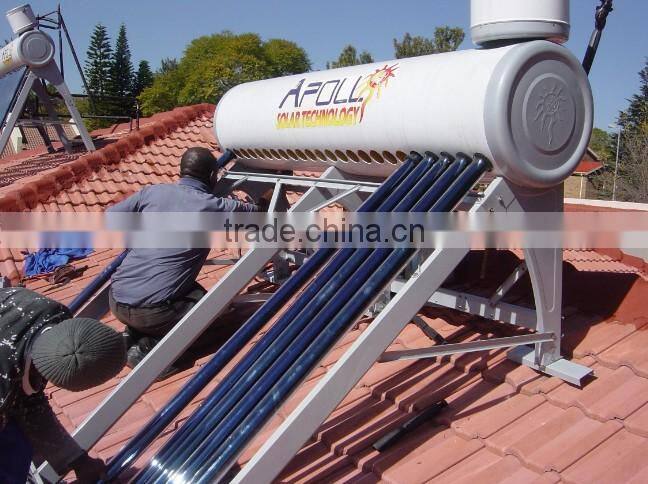

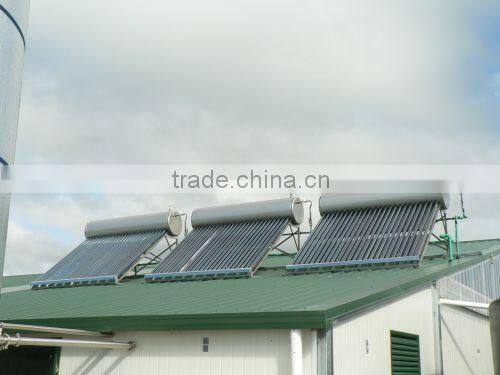

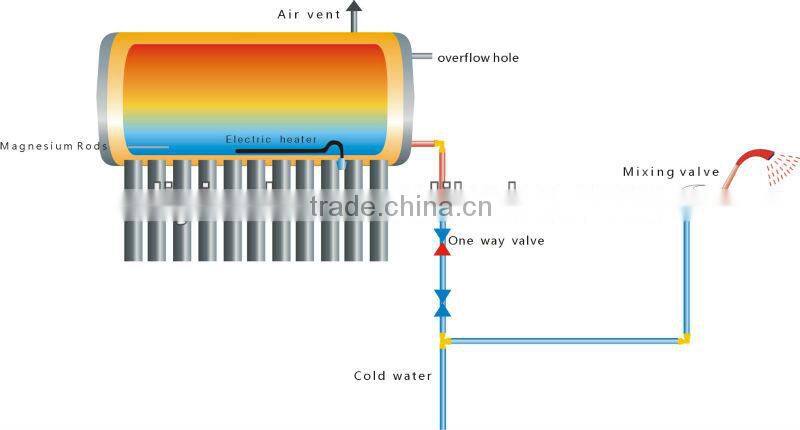

4. low pressure vacuum tube solar water heater with Inmetro certification
installation:
