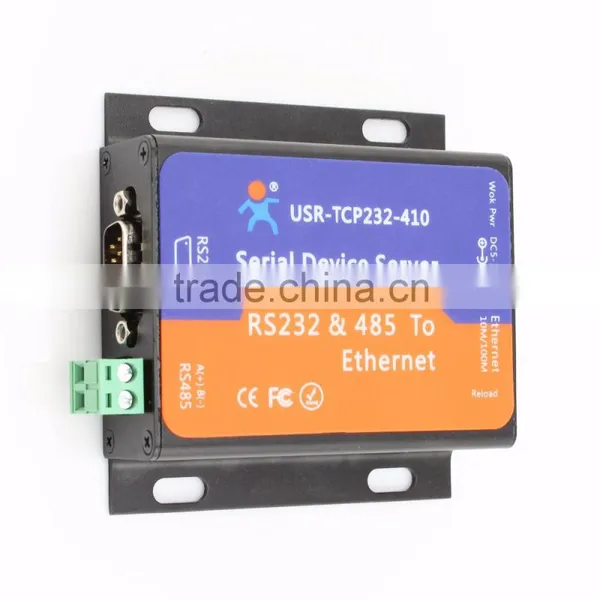

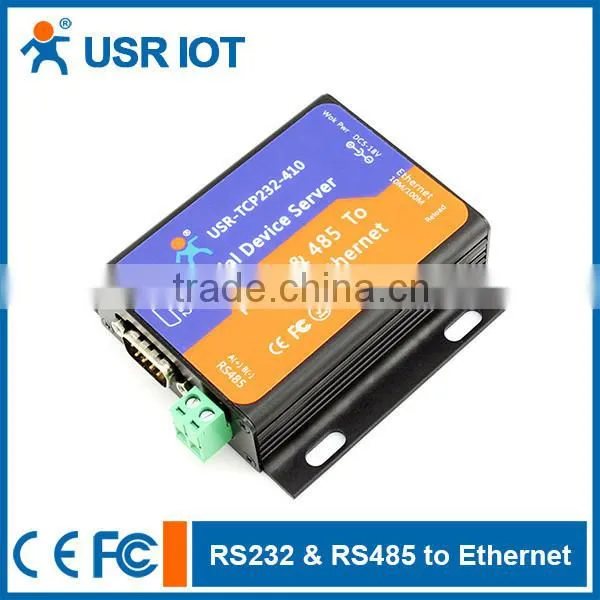

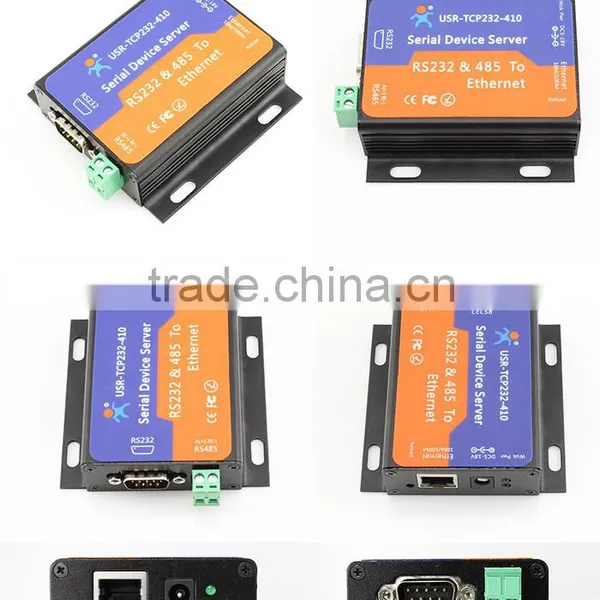

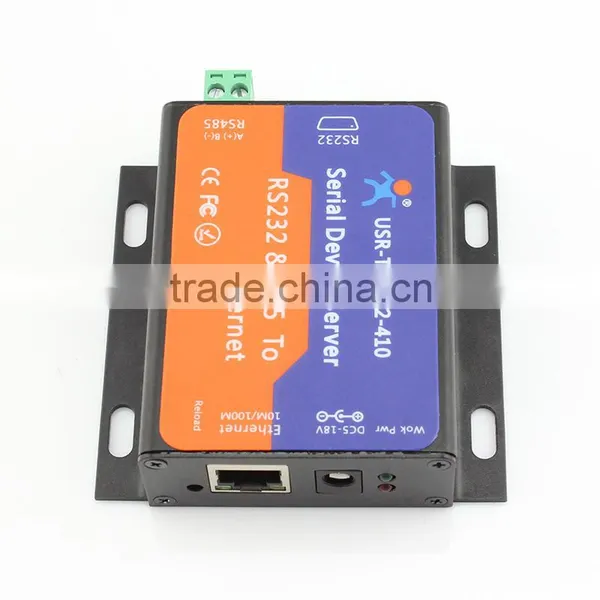

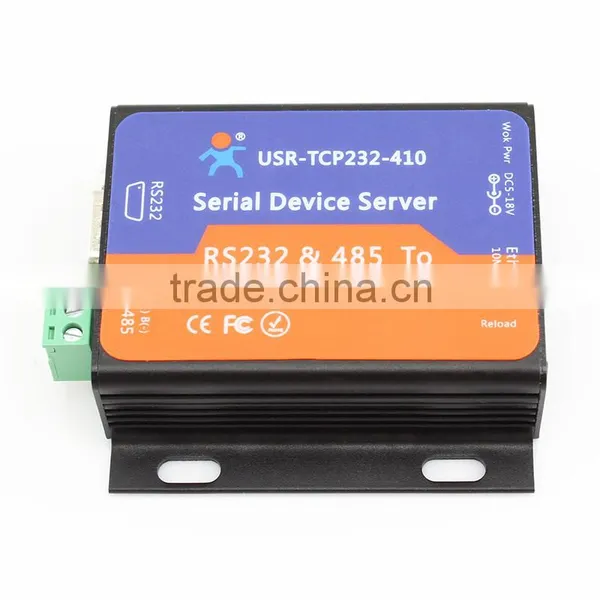

USR-TCP232-410 Serial to Ethernet /RJ45 Converter RS232 RS485 to TCP/IP Server High Quality
US$ 45.60 - 45.60
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
USR
Model Number:
USR-TCP232-410
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
USR-TCP232-24 RS485/RS232 to LAN/ Ethernet Module Virtual Serial Port SupportedUS$ 17.80 - 17.80MOQ: 1 Piece -
USR-TCP232-300 RS232/RS485 to LAN/ Ethernet Converter Server Support Virtual Serial PortUS$ 33.80 - 33.80MOQ: 1 Set
-
USR-TCP232-24 RS485/RS232 to RJ45/ Ethernet Module Support Virtual Serial PortUS$ 17.80 - 17.80MOQ: 1 Piece
-
USR-TCP232-410 Serial to LAN Server RS232 RS485 Ethernet Converter Support Virtual Serial PortUS$ 45.60 - 45.60MOQ: 1 Unit
-
USR-TCP232-E2 Serial UART TTL to TCP/IP Ethernet Module Support Virtual Serial PortUS$ 19.60 - 19.60MOQ: 1 Piece
Place of Origin
Shandong, China
Brand Name
USR
Model Number
USR-TCP232-410
Product Description
Introduction
This is a serial rs485&rs232 to Ethernet server,used for data transparent transmission.USR-TCP232-410 is a dual serial server,which supports rs232 & rs485 working at the same time.It is based on Cortex-M4 solution and its basic frequency is up to 120MHz. And the internal of the serial server integrates TCP/IP protocol stack.
Features
- Cortex-M4 kernel,industrial working temperature range and TCPIP protocol stack.
- Auto-MDI/MDIX,RJ45 port with 10/100Mbps
- TCP Server,TCP Client,UDP Client,UDP Server and HTTPD Client work mode
- Multi-ports can work independently at the same time
- Can distinguish which serial port connects to the device via port number
- Support virtual serial port and provide corresponding software USR-VCOM
- Serial baud rate from 600bps to 230.4K bps; Check bit of None,Odd,Even,Mark and Space
- DNS and DHCP supported
- Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
- Built-in webpage;also can customize webpage for users
- Reload button,one key to restore default settings
- RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation
- The global unique MAC address bought from IEEE (begin with D8-B0-4C);user can define MAC address
- Support upgrade firmware via network
- Support keepalive,rapidly detect dead links
- Support account and password,can be used to page login and network settings
- Support one channel Websocket,realize bidirectional transparent transmission bewteen webpage and serial 0
- Support Modbus RTU to Modbus TCP
- Support UDP broadcast function
Parameter
- Input Voltage: DC 5 ~ 36V
- Certificate: CE, FCC, ROHS
- Size: 90 x 84 x 25 mm
- Operating Temp.: -40 ~ 85°C (industry)
- Storage Temp.: -40 ~ 105°C, 5 ~ 95% RH
- Interface: 1* RS232 & 1* RS485
- Network Protocol: IP, TCP, UDP, DHCP, DNS, HTTP, ARP,ICMP, Web socket, Httpd client

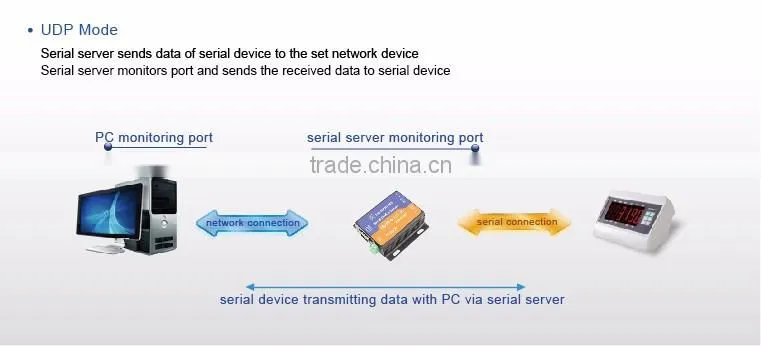

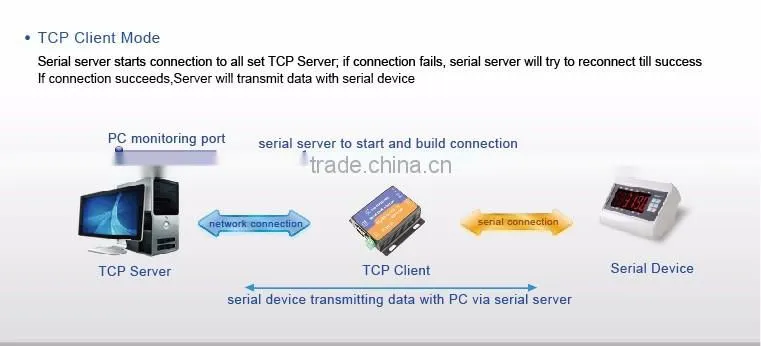

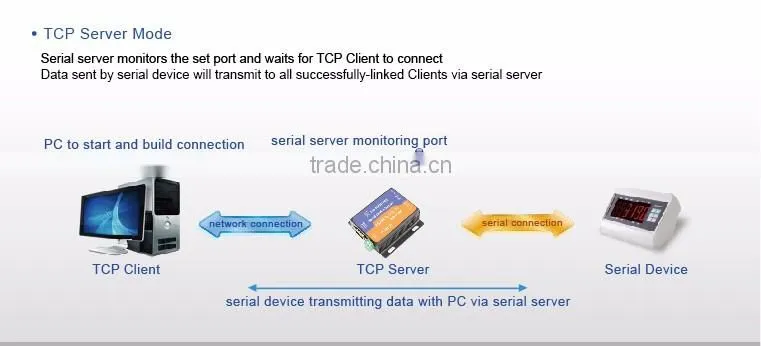

Work Mode
Application
Certificate
Company Information
Jinan USR IOT Technology Limited has been focusing on IOT and M2M field for more than 6 years. We offer networking products
such as serial device server, Ethernet module/server, GPRS DTU, WIFI module and remote relay. We have professional R&D
teams for hardware and software, phone APP and server. And we can provide OEM & ODM service for clients.Our company has
rich experience in system solutions such as smart home system, intelligence fire, agricultural network,temperature and humidity
acquisition, industrial control, attendance, entrance guard system and remote control.
- Service: 2 years guarantee, and professional technical staff help.
- Supply ability: We usually have 3000-5000 units in stock for urgent orders.
- Capacity: 50K/week, can meet the demand of most enterprises application.
- Lifetime: At least 5 years for each device, can still produce just if you need.
- Cooperation: Welcome the cooperation with distributors all over the world.
Our Services
Shipping ways
- Southeast Asia, Mid East and Australia: Egypt, Israel, Pakistan, Turkey, India, Singapore, Thailand, New Zealand ect. We choose DPEX or ARAMEX. It may take 7-15 days.
- Russian Federation: we only send orders by EMS or CPAM. It will take 20-45 days.
- South America: Brazil, Chile, Peru, Argentina, Columbia ect. We choose EMS or CPAM for shipping.It will take 20-45 days. If you really need DHL, please contact us.
-
North America and Most of Europe: We choose DHL, except cities that DHL can not reach. It will take 7-10 days.
Return/refund policy
- If you get a defective item and you do not like the item we send to you, Please contact us within 5 days after you receive your order. item must be returned with its original packaging and accessories.Customer is responsible for shipping charges of returned item.We will refund the money to you when we get the returned item. Or we can send you a new one according to your demand.
- if item is lost in the transportation, we will fully refund to you.
