Rubber Tile making machine quality products hydraulic press for rubber tiles
- QINGDAO
- T/T
You May Like
-
Rubber Tile making machine recyling tile roduction line with ce mark
-
Rubber Tile making machine qingdao supply
-
Rubber Tile making machine rubber macine
-
Rubber Tile making machine hydraulic tile press machine
-
Rubber Tile making machine rubber tiles molding
-
Rubber Tile making machine 2014 rubber floor tile machine for sale
Product Details
| Condition | New | Type | Vulcanizer | |
| Place of Origin | Shandong, China | Brand Name | HUATUO | |
| Model Number | XLB | Voltage | CUSTOM MADE | |
| Power(W) | 3kw | Dimension(L*W*H) | 2200x900x2200mm | |
| Weight | 3600kg | Certification | CE,SGS AS WELL AS ISO9001:2008 | |
| Warranty | 3 YEARS GUARANTEE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Rubber Tile making machine quality products hydraulic press for rubber tiles
Name
quality products hydraulic press for rubber tiles / Rubber Tile machine / Rubber tile Vulcanizing press machine
USE of quality products hydraulic press for rubber tiles
lab use ,rubber & plastic vulcanizing , rubber tiles making , rubber gasket making , conveyor belt and so on
INTRODUCTION of quality products hydraulic press for rubber tiles
1.conching
Put the rubber granulates and stain into the stirring barrel to stir, and then put into the adhesive to stir.this process requires for 4-6 minutes ( because the adhesive is easy to cure, so stir it when use ).
2. Weighing raw materials
weight the rubber granulates stirred, according to the granulates' thickness requirement of the tiles .
3. Paving and pressing
Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.
4. Vulcanization molding
Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 3-8inutes finished. After that, Mold separate automatic, then remove floor tile on the shelves to dry.
5. Inspecting
Inspect the surface of the floor tiles formity, no aberration, no flaw, line with the product quality.
1.this kind machinery has three types of frame type, pillar type, and jaw type. It is economical, advantage of compact structure, high working pressure, high producing efficiency,. Operation is safe and reliable.
2. This series of products have high press in unit area , so that we can ensure the quality .
3.Machine can be equipped with model pulling and pushing device to reduce work strength based on product requirements .Hand control ,electrical control and PLC control is optional.
4.The working layer number can be designed as the request.
5. valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate rubber machine .
6.This type of machine is control by PLC , valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate rubber machine.

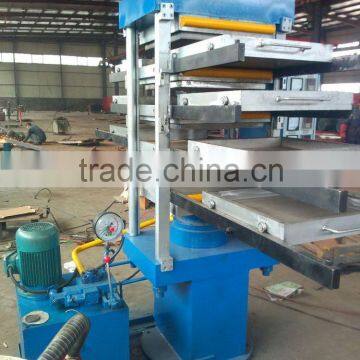

Picture of quality products hydraulic press for rubber tiles
PARAMETERS of quality products hydraulic press for rubber tiles
Model | XLB-D550x550x4 |
Total pressure (MN) | 0.5 |
Plate size (mm) | 550x550x45(Q235) |
Daylight (mm) | 150 |
Daylight no. | 2 |
Piston stroke (mm) | 400 |
Motor power (kw) | 3.0 |
Overall size (mm) | 2200x900x2200 |
Weight (mm) | 3600 |
Qingdao HuaTuo Machinery Co., Ltd. is one of the important backbone enterprises in rubber machinery industry in China and is the member of Shandong machinery union company.
Our company owns powerful technical strength, advanced techniques, the best design and a strict quality guarantee system, and owns a high reputation in Chinese rubber machinery industry.
The main products are plate vulcanizing presses, open rubber mixing mills, Banbury intensive kneaders, extruders and rubber and reclaimed rubber machinery.
The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas. All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.
The combination of three-dimension CAD system and Internet guarantees the synchronization with international advanced technology. The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture. At the same time, our company keeps good contact with several universities and research institutes.
Our company takes "To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time" as management idea, and insists on the principle of "Quality is the first, Reputation is first, Client is the first". We will provide you with the best service.
