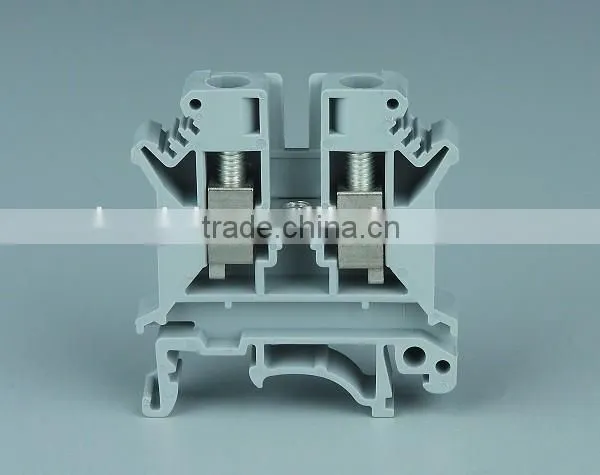

Help CenterUK5N/4mm Din Rail Terminal Block Connector
Related Products
-
Din Rail Adapter Junction BoxUS$ 2.00 - 2.00MOQ: 1 Piece -
Din Rail Mounted Unipolar Branching BoxUS$ 2.00 - 2.00MOQ: 1 Piece
-
Din Rail Phoenix Terminal BlockUS$ 0.10 - 0.10MOQ: 1 Piece
-
Din Rail Phoenix ConnectorUS$ 0.10 - 0.10MOQ: 1 Piece
-
UK2.5 2.5mm Screwed Din Rail Connection TerminalUS$ 0.5 - 1MOQ: 100 Pieces
product description
1. housing plastic part :made from rohs polyamide
cross conductor : full brass
screw : iron with colourful plated or copper
2.Model number:UK5N
3.Certification:ISO9001,CE and ROHS
4.standard colour:grey,other colour can serve according to customer's request
5.feature:durable screw type terminal block used for wire connecting
6.packing:many pcs in one paper box outside,many sets boxes in one paper carton outside
Model Sizes
1>general type din rail terminal block connector
| model number | cross section of conductor |
A / V |
UK1.5N |
1.5mm2 |
32A 800V |
UK2.5B |
2.5mm2 |
32A 800V |
UK3N |
2.5mm2 |
32A 800V |
UK5N |
4mm2 |
41A 800V |
UK6N |
6mm2 |
57A 800V |
UK10N |
10mm2 |
76A 800V |
UK16N |
16mm2 |
101A 800V |
UK35N |
35mm2 |
125A 800V |
UKH50 |
50mm2 |
150A 1000V |
UKH95 |
95mm2 |
232A 1000V |
UKH150 |
150mm2 |
309A 1000V |
UKH240 |
240mm2 |
415A 1000V |

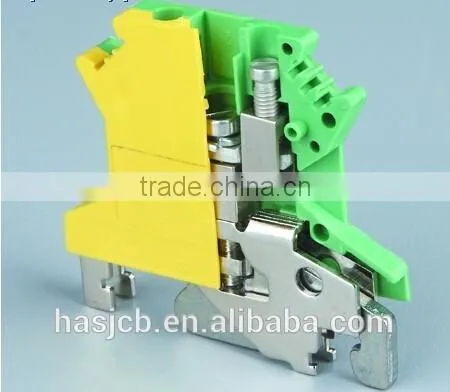

2>din rail grouding terminal block connector
Model number |
Cross section of conductor |
A / V |
USLKG2.5 |
2.5mm2 |
34A 800V |
USLKG3 |
2.5mm2 |
34A 800V |
USLKG5 |
5mm2 |
34A 800V |
USLKG6 |
6mm2 |
37A 800V |
USLKG10 |
10mm2 |
61A 800V |
USLKG16 |
16mm2 |
101A 800V |
USLKG35 |
35mm2 |
125A 800V |
USLKG50 |
50mm2 |
150A 1000V |
accessories
END CAPS FOR URTK/S
END CAPS FOR UK5N 4MM2 TO UK10N 10MM2
END CAPS FOR UK2.5 AND UK3N 2.5MM2

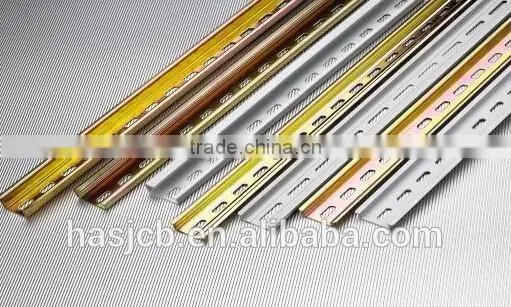

DIN RAIL 35MM

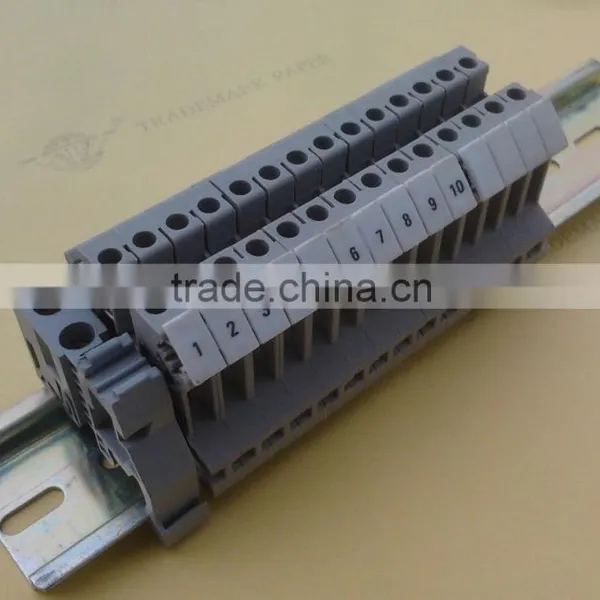

MARKER LAB (INCLUDING NUMBERS AND LETTERS)

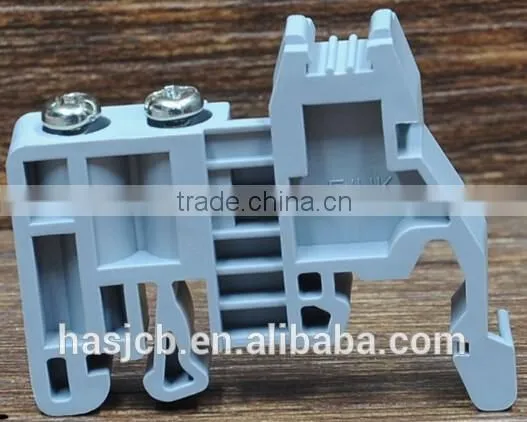

END STOPPER FOR PHOENIX DIN RAIL UK TERMINAL BLOCK

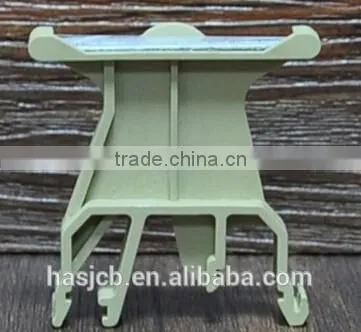

END BRACKET FOR JXB/ASK TERMINAL BLOCK
STRIP TOP JUMPER

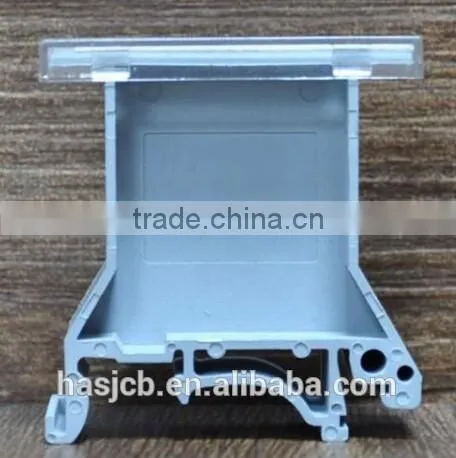

MARKER BASE
