Hot sale Rubber Extruder rubber sheeting extruder
Name :
Introduction of rubber sheeting extruder
Rubber Extruder
USE : Use for rubber & plastic extruding and molding.
Features :
1. Screw is made of best 38CrMoALA, its hardness is higher generally than HRC62 ( 60-65 ), Depth of nitrogen is higher than 0.55-0.7 mm ( 0.4-0.7 )
2. Bush is also made of 38CrMoALA, its hardness is generally higher than HRC66( 65-70 ), Depth of nitrogen is generally higher than 0.55-0.7 mm ( 0.4-0.7 mm )
3. Feeding device is made of feeding roller and feeding barrel, Feeding roller is driven by gears and its structure resembles Italy type. The rubber will never leak out, then it is never impossible for that the rubber enters into the bearing bush.
4.Screw made of special steel is with nitrogen treatment,durable.
5.Jacketed type barrel can be cooled for cooling the rubbers effectively.
6.Double head strainer to be quickly and easily exchanged.
7.Smoothly running and high output.
8.Equipped with die-head auto opening system when electric power is cut off.
Parameter of rubber sheeting extruder
Hot Feed Rubber Extruder
Type | XJ-65 | XJ-120 | XJ-150 | XJ-200 | XJ-250 |
Screw diameter(mm) | 65 | 120 | 150 | 200 | 250 |
Length-diameter ratioof screw(L/D | 4 | 4.6 | 4.43 | 4.35 | 4.5 |
Compression ratio |
|
| 1.34 |
|
|
Rotary speed of screw(r/min) | 5.2-52 | 5.6-55.6 | 20-26 | 22.4-67.2 | 19.7-59.1 |
Motor power(kw) | Electromagnetic speed 7.5kw | Electromagnetic speed 22kw | Frequency control 55kw/motor commutator18.3-55kw | motor commutator 25-75kw | motor commutator 33.3-100kw |
Production capacity(kg | 50-80 | 100-450 | 700-1200 | 1500-2200 | 2000-3200 |
Steam pressure | 0.2-0.3 | 0.2-0.4 | 0.6 | 0.6-0.8 | 0.6-0.8 |
Weight(kg | 1000 | 3000 |
Pin Barrel Cold Feed Rubber Extruder
| model | screw | motor (kw) | ntrol unit | Max.capacity | |||||
diameter (mm) | L/D | Max.speed(r/m) | length (mm) | zones | power | (kg/h) | |||
| XJD-65X12D | 65 | 12 | 80 | 780 | Z4 | 22 | 3 | 2.2*3 | 160 |
| XJD-90X12D | 90 | 12 | 60 | 1080 | Z4 | 45 | 4 | 6*4 | 320 |
| XJD-120X12D | 120 | 12 | 50 | 1440 | Z4 | 75 | 4 | 6*4 | 650 |
| XJD-150X12D | 150 | 12 | 45 | 1800 | Z4 | 160 | 4 | 10*4 | 1500 |
| XJD-200X12D | 200 | 12 | 30 | 2400 | Z4 | 220 | 5 | 12*4 | 2200 |
| XJD-250X12D | 250 | 12 | 25 | 3000 | Z4 | 450 | 4 | 16*4 | 3800 |

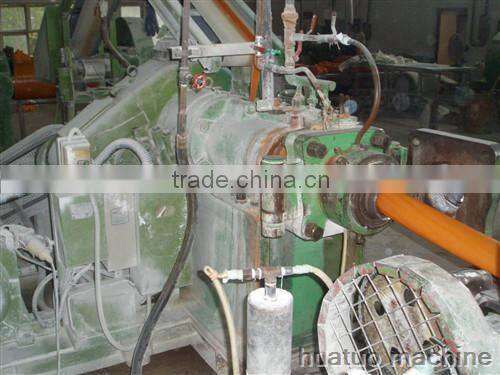

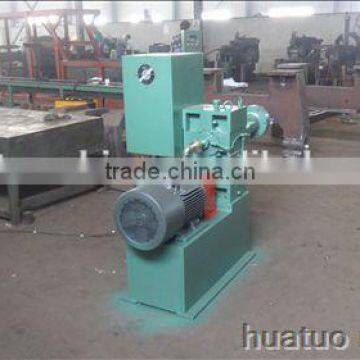

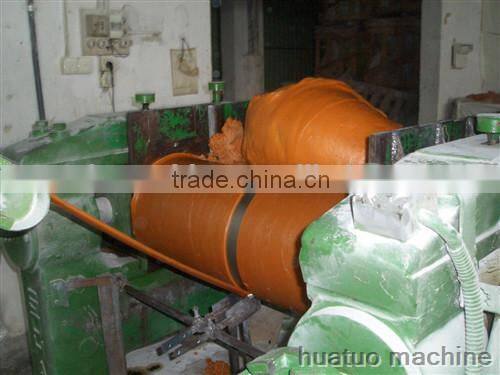

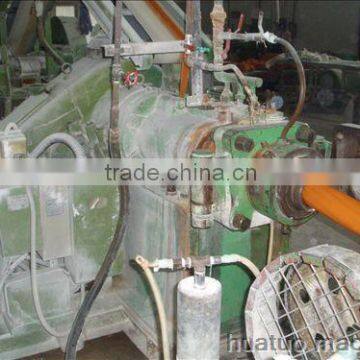

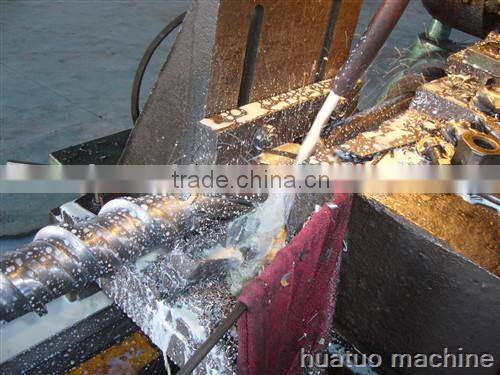

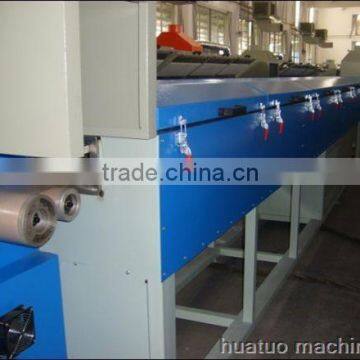

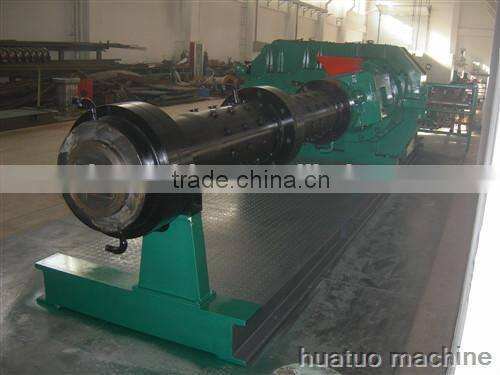

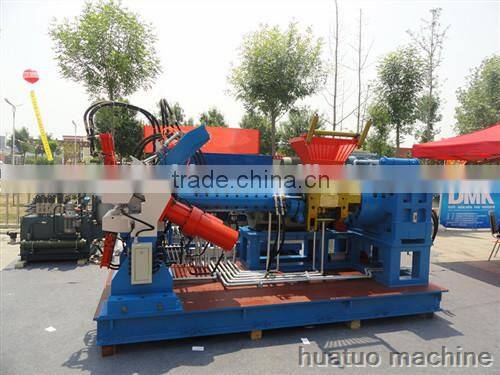

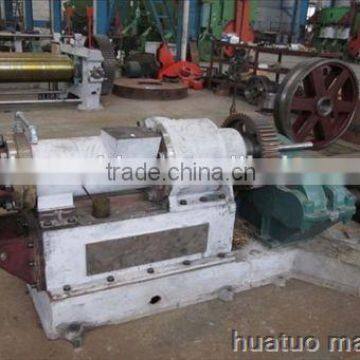

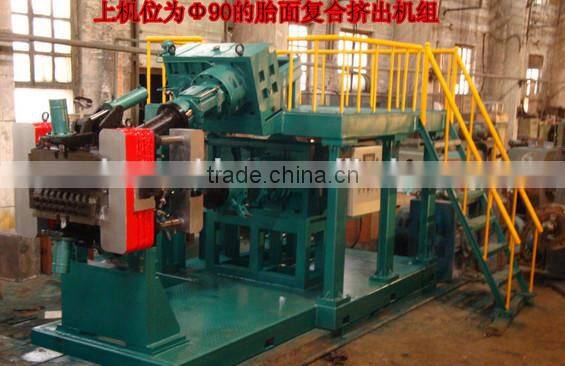

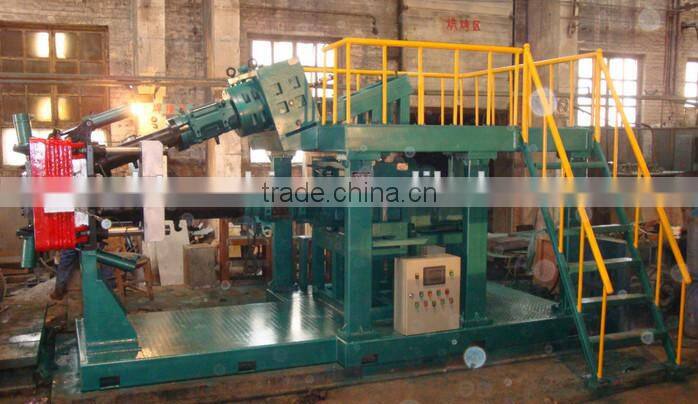

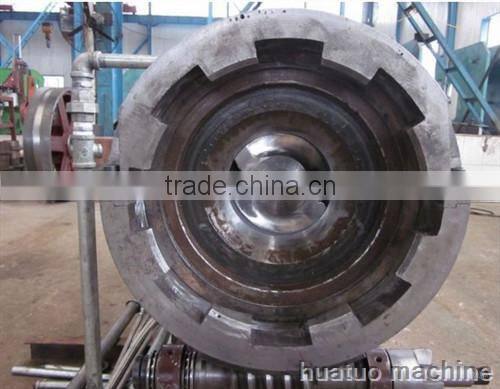

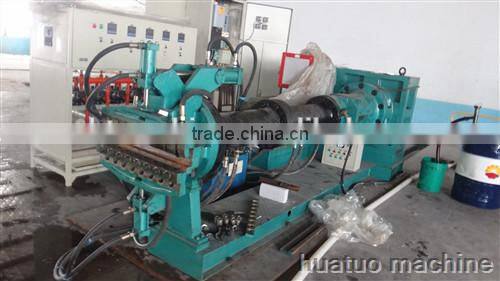

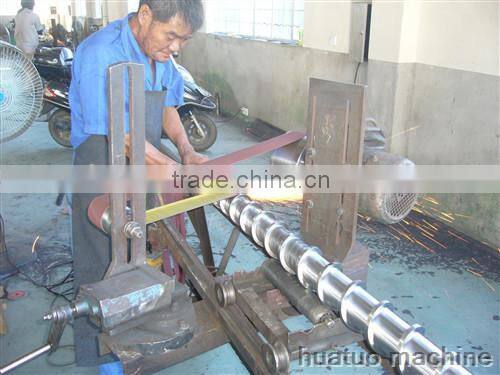

Picture of rubber sheeting extruder
