Our Advantages
1. ISO9001:2000 and TS16949 certificated.
2. OEM available.
3. More than twenty years of sales and manufacture experience.
4.100% test for product appearance before shipment.
5. Long lifespan, competitive price.
6. Good payment term.
7. Fast delivery.
8. Our products are exported to more than 30 countries in the whole world.
9. Our products are showed at international fair, such as Germany, Italy, America, Brazil, Dubai, Russia, Shanghai China fair etc each year.
10. Location advantage: Nearby Ningbo port, the second largest port in China, convenient transportation and low cost, and close to Shanghai, convenient for customers to visit our factory.

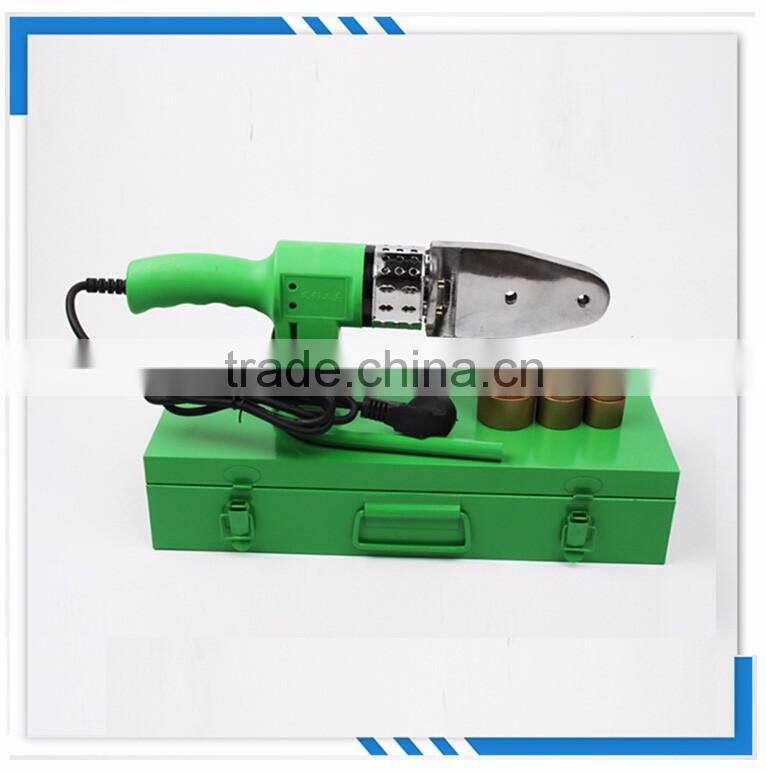

Quick details:
Voltage: 220V
Power: 600W
Frequency: 50HZ
Dimensions: 38cm*18cm*8cm
Weight: 2.4kg
Usage: welding ppr and pipe fittings,PPR PE PB PEX PE-RT
After-sales Service Provided: Engineers available to service machinery overseas
working rate: 20.25.32 MM
working temperature: 240-300°C
warranty: 1 year
Packing Color: can be OEM
MOQ: 1pcs
Sales place: middle east ,European, south east, south America,North America
Technical parameters
Power |
600W |
Voltage |
220V |
Working range |
Dn20.25.32 |
Frequency |
50HZ |
Working temperature |
270°C |
Usage |
PPR PE PB PE-X |
Weight |
2.4 kg |
Packing |
37*17.5*9 cm |
20GP |
4119 |
40GP |
9267 |
40HQ |
10983 |
Color |
orange |
Instruction for use
1. Apply die head
Place the welding machine on the stander, chose die head according to pipe’s diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.
2. Power on

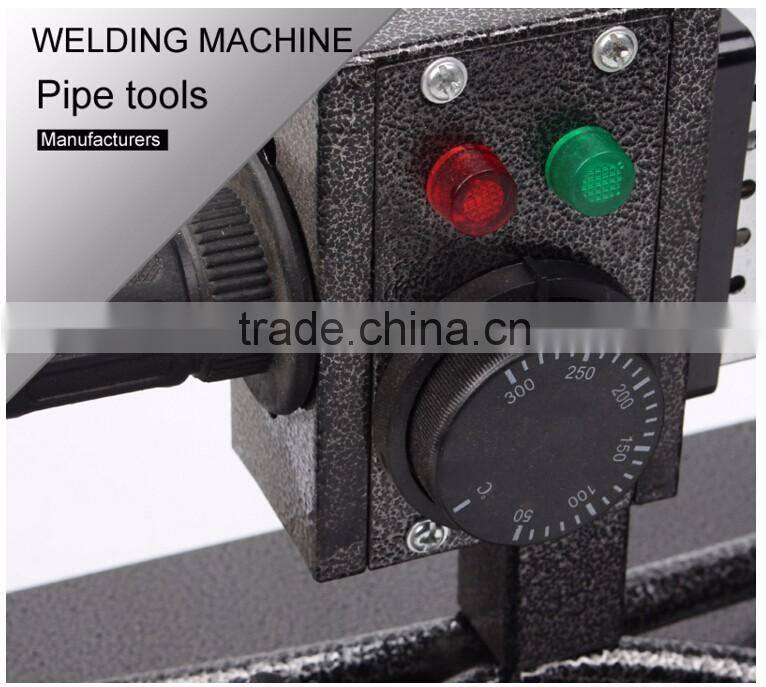

Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.
Note: during the auto temperature control mode, the red and the green light will be on and off alternatively, this indicates that the machine is under control and it will not affect operating.
3. Fusion pipes
Using cutter to cut pipe vertically, push the pipe and fitting into die head without any rotation. Take them off immediately when heating time reached (see the table below) and insert
External diameter |
Heating depth |
Heat time |
Process time |
Cool time |
20 |
14 |
5 |
4 |
3 |
25 |
16 |
7 |
4 |
3 |
32 |
20 |
8 |
4 |
4 |
40 |
21 |
12 |
6 |
4 |
50 |
22.5 |
18 |
6 |
5 |
63 |
24 |
24 |
6 |
6 |

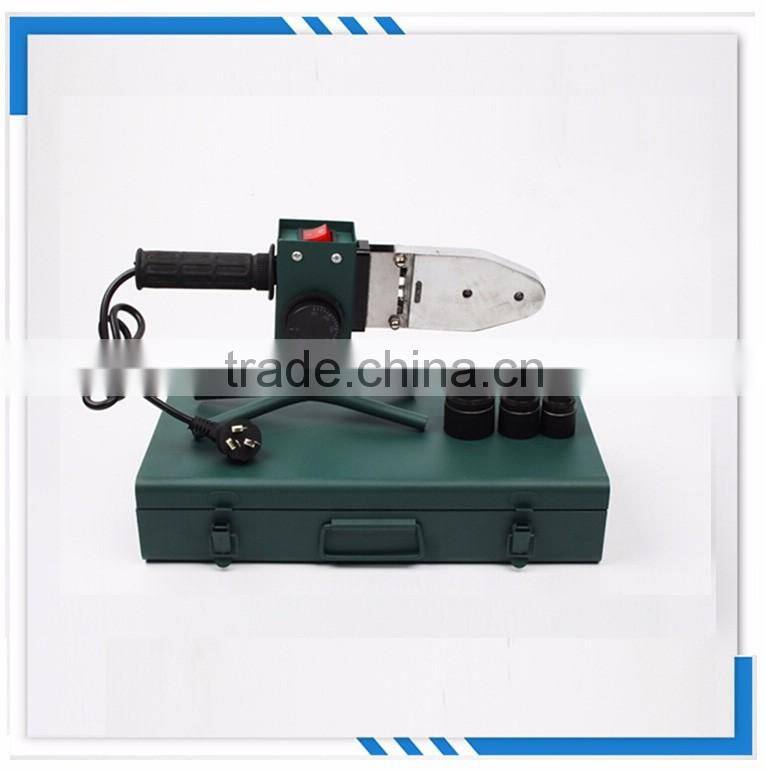

Quick details:
Voltage: 220V
Power: 800W
Frequency: 50HZ
Dimensions: 38cm*17cm*8.2 cm
Weight: 1.45 kg
Usage: welding ppr and pipe fittings,PPR PE PB PEX PE-RT
After-sales Service Provided: Engineers available to service machinery overseas
working rate: 20.25.32.40.50.63 MM
working temperature: 240-300°C
warranty: 1 year
Packing Color: can be OEM
MOQ: 1pcs
Sales place: middle east ,European, south east, south America,North America
Description:
This product has a precise temperature control, high reliability, security, and unique non-stick plastic mold technology
Technical parameters
Power |
800W |
Voltage |
220V |
Working range |
Dn20.25.32. 40.50.63 |
Frequency |
50HZ |
Working temperature |
270°C |
Usage |
PPR PE PB PE-X |
Weight |
1.45 kg |
Packing |
38*17*8.2 cm |
20GP |
3586 |
40GP |
8069 |
40HQ |
9563 |
Color |
orange |
Instruction for use
1. Apply die head
Place the welding machine on the stander, chose die head according to pipe’s diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.
2. Power on
Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.
Note: during the auto temperature control mode, the red and the green light will be on and off alternatively, this indicates that the machine is under control and it will not affect operating.
3. Fusion pipes
Using cutter to cut pipe vertically, push the pipe and fitting into die head without any rotation. Take them off immediately when heating time reached (see the table below) and insert
External diameter |
Heating depth |
Heat time |
Process time |
Cool time |
20 |
14 |
5 |
4 |
3 |
25 |
16 |
7 |
4 |
3 |
32 |
20 |
8 |
4 |
4 |
40 |
21 |
12 |
6 |
4 |
50 |
22.5 |
18 |
6 |
5 |
63 |
24 |
24 |
6 |
6 |
