Specifications
Sunx EX-23 Infrared sensor EX-23-PN Ultra compact photoelectric speed sensorAmplifier Built-in sensor
Sunx EX-23 Infrared sensor EX-23-PN Ultra compact photoelectric sensor
Ultra-Compact Photoelectric Sensor
The EX series of photoelectric sensors is a wide-ranging lineup of 116 different models.
Whatever your application entails, Panasonic has covered it with this series.
Built to IP-67 standards, the Ex series is designed for the most demanding environments.
There are also models that are specifically design for resistance to oil, coolant, or ethanol.
Couple this with high electrical noise resistance and a built in interference prevention function,
and you have one of the most robust sensors on the market.
| model | Sunx EX-23-PN |
| Sensor type | Thru-beam photoelectric sensor |

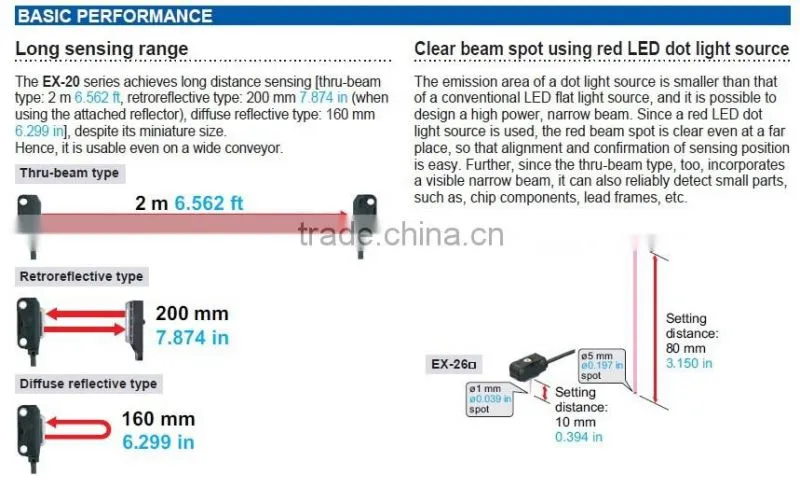

| Sensing range | 2m |
| Sensing object | ∅3mm or more transparent |
| Supply voltage | 12 to 24VDC±10% |
| Output | NPN/PNP output |
| Output operation | Switchable either Light-ON or Dark-ON |
| Response time | 0.5ms or less |
| size | 10.5mm*8.2mm*19mm |
| Protection | IP 67 |
Model Name; Type
EX-21A; Thrubeam, NPN ,Light-On ,
EX-21A-PN ; Thrubeam, PNP Light-On
EX-21B; Thrubeam, NPN,Dark-on
EX-21B-PN; Thrubeam, PNP, Dark-on
EX-23; Thrubeam,NPN,Switchable either Light-on or Dark -on
EX-23-PN ; Thrubeam, PNP,Switchable either Light-on or Dark -on
EX-29A ; Retroreflective, NPN ,Light-On
EX-29A-PN; Retroreflective, PNP ,Light-On
EX-29B; Retroreflective, NPN ,Dark-On
EX-29B-PN; Retroreflective, PNP ,Dark-On
EX-22A;Diffuse refiective, NPN ,Light-On
EX-22A-PN ;Diffuse reflective, PNP ,Light-On
EX-22B;Diffuse reflective, NPN ,Dark-On
EX-22B-PN ;Diffuse reflective, NPN ,Dark-On
EX-24A; Convergent reflective, NPN ,Light-On
EX-24A-PN; Convergent reflective, PNP ,Light-On
EX-24B; Convergent reflective, NPN ,Dark-On
EX-24B-PN; Convergent reflective, PNP ,Dark-On
EX-26A; Convergent reflective, NPN ,Light-On
EX-26A-PN; Convergent reflective, PNP ,Light-On
EX-26B; Convergent reflective, NPN ,Dark-On
EX-26B-PN; Convergent reflective, PNP ,Dark-On
EX-28A; Narrow-view reflective, NPN ,Light-On
EX-28A-PN; Narrow-view reflective, PNP ,Light-On
EX-28B; Narrow-view reflective, NPN ,Dark-On
EX-28B-PN; Narrow-view reflective, PNP ,Dark-On
