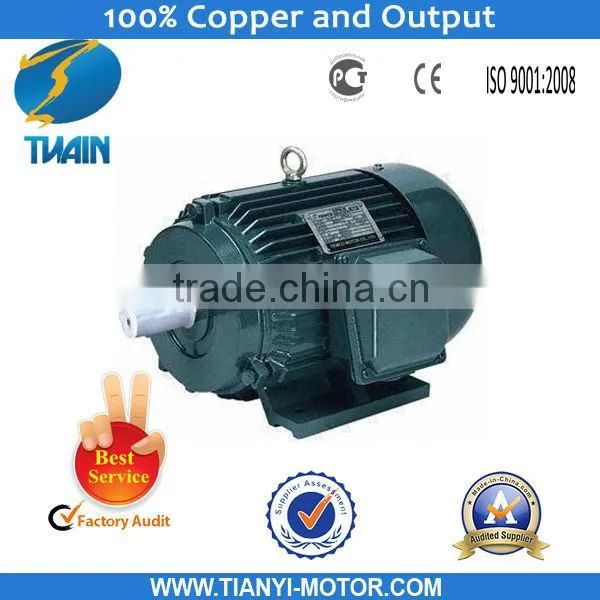

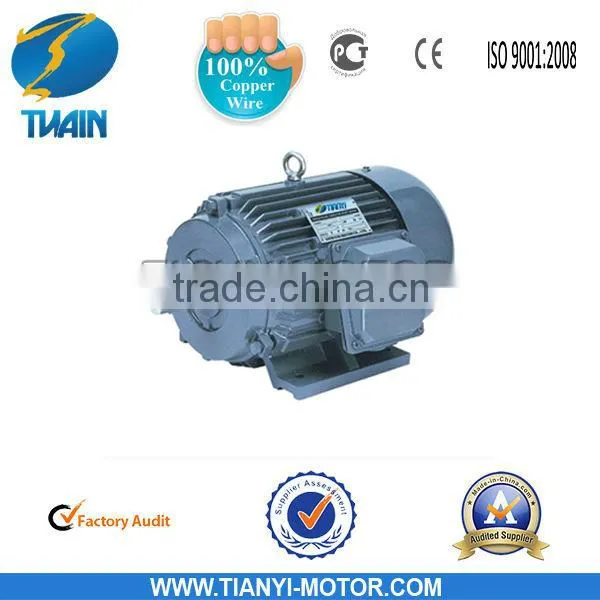

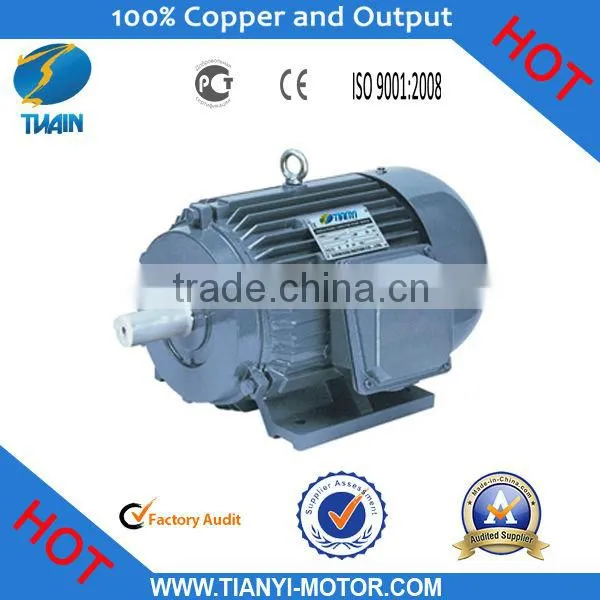

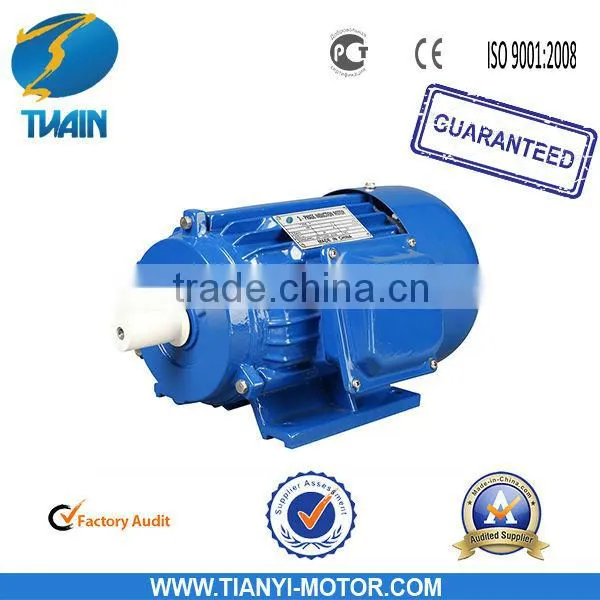

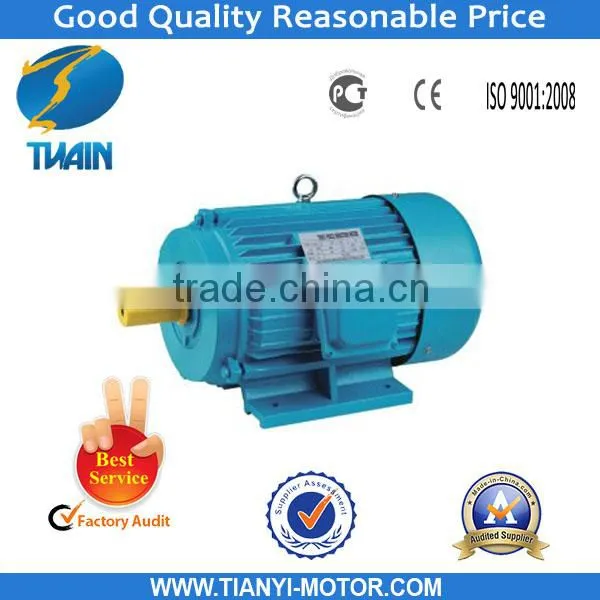

Most Sellable Y Induction Motor 100% Delivery On Time Rate

Specifications

Most Sellable Y Induction Motor 100% Delivery On Time Rate

APPLICATION

1.Y series motors are totally enclosed fan cooled , three phase squirrel cage induction motors , it is newly designed in conformity with the relevant requirements of standards .

2.Y series motor have outstanding performance , such as high sufficiency , energy saving , high staring torque , low noise , little vibration , reliable operation and easy maintenance , etc

3.Y series motor are widely used in places , where there doesnot exist combustible , explosive or corrosive gas , tools ,pumps , fans , transport machinery , mixer , agriculture machinery and food machinery , etc.

OPERATING CONDITIONS

1. Duty: S1(continuous)

2. Insulation class :B/F/H
3. Cooling method :ICO141

4. Altitude:not exceed 1000m

5. Rated Frequency: 50HZ, 60HZ

6. Protection class :IP44/IP54/IP55

7. Rated voltage:380V or any voltage between 220V - 760V

8. Connection: Star-connection for and below to 3KW, Delta-connection for 4KW and above.

MAIN MARKET

Southeast Asia, Middle East, Africa, Europe, America, etc.

OUR ENTERPRISE SPRIIT

The Market is the Core and The Quality is the Life.
We welcome worldwide merchants to join us for common development!

FAQ

Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept samples order to check quality.
Q: Is it all right to make customers’own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: How long is your warranty?
A: One year after receive B/L.
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.

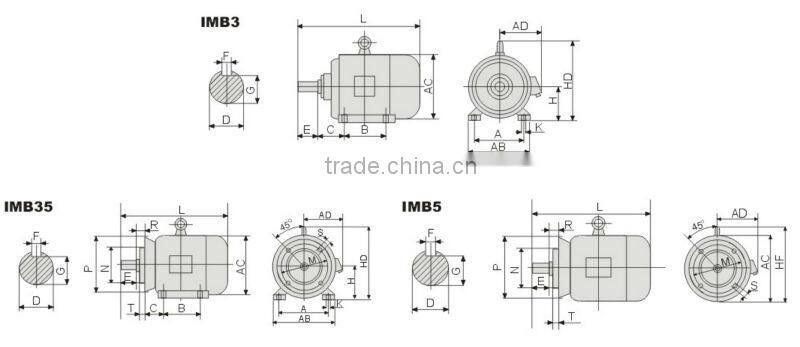

INSTALLATION SIZE & OVERALL DIMENSION
