Hot Rolled Cheap Steel Channel Bars
- tianjin
- T/T
You May Like
Product Details
| Standard | ASTM, DIN, GB | Grade | SS400, GB Q235, GB Q345 | |
| Place of Origin | Hebei, China | Brand Name | RUIGUOTONGSHENG | |
| Model Number | 50mm-300mm | Application | BUILDING |
Product Description
Specifications
Steel Channel bars1. Used widely
2. Competitive price
3. Good quality
4. Fast delivery
Steel channel bars
Size(mm) | DIMENSION(mm) | Weight/M | ||
High(h) | Width(b) | Thickness(d) | ||
5# | 50 | 37 | 4.5 | 5.438 |
6.3# | 63 | 40 | 4.8 | 6.634 |
8# | 80 | 43 | 5 | 8.045 |
10# | 100 | 48 | 5.3 | 10.007 |
12# | 120 | 53 | 5.5 | 12.059 |
14#A | 140 | 58 | 6 | 14.535 |
14#B | 140 | 60 | 8 | 16.733 |
16#A | 160 | 63 | 6.5 | 17.24 |
16#B | 160 | 65 | 8.5 | 19.752 |
18#A | 180 | 68 | 7 | 20.174 |
18#B | 180 | 70 | 9 | 23 |
20#A | 200 | 73 | 7 | 22.637 |
20#B | 200 | 75 | 9 | 25.777 |
22#A | 220 | 77 | 7 | 24.999 |
22#B | 220 | 79 | 9 | 28.453 |
25#A | 250 | 78 | 7 | 27.41 |
25#B | 250 | 80 | 9 | 31.335 |
28#A | 280 | 82 | 7.5 | 31.427 |
28#B | 280 | 84 | 9.5 | 35.823 |
30#A | 300 | 85 | 7.5 | 34.463 |
30#B | 300 | 87 | 9.5 | 39.173 |
32#A | 320 | 88 | 8 | 38.083 |
32#B | 320 | 90 | 10 | 43.107 |
32#C | 320 | 92 | 12 | 48.131 |
36#A | 360 | 96 | 9 | 47.814 |
36#B | 360 | 98 | 11 | 53.466 |
36#C | 360 | 100 | 13 | 59.118 |
40#A | 400 | 100 | 10 | 58.928 |
40#B | 400 | 102 | 12.5 | 65.208 |
40#C | 400 | 104 | 14.5 | 71.488 |
1.Standard: GB /T9787 or JIS G3192
2.Steel Grade: Q235,Q345, ASTM A36, SS400
3.Thickness: 3.8mm to 14.5 mm
4.Size: 50x37x4.5mm to 400x104x14.5mm
5.Length: 5.8m or 6m, 11.8m or 12m
6.Special Length: 7m, 8m,9m, 10m, 11m
7.Weight: on theoretical weight
8.Packing: Mill’s standard packing by wire rod to bundle

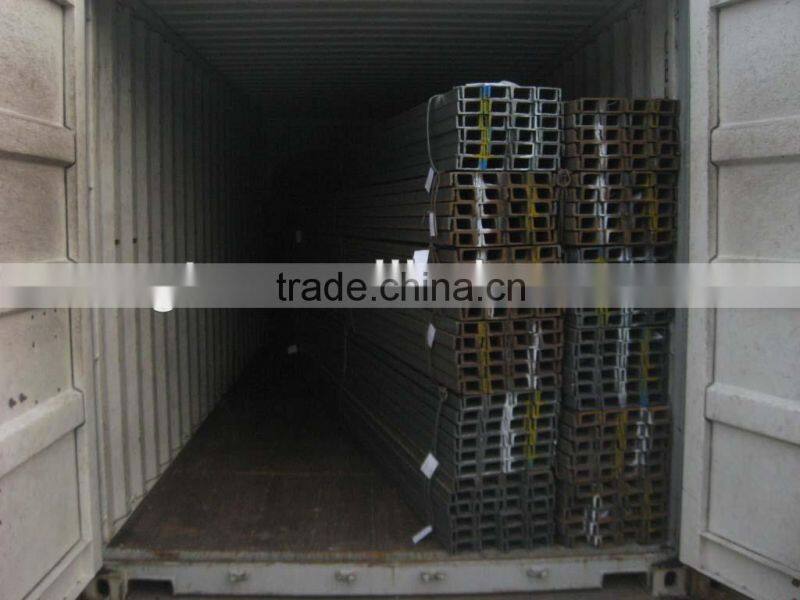

9.Shipping: by container or by bulk vessel
