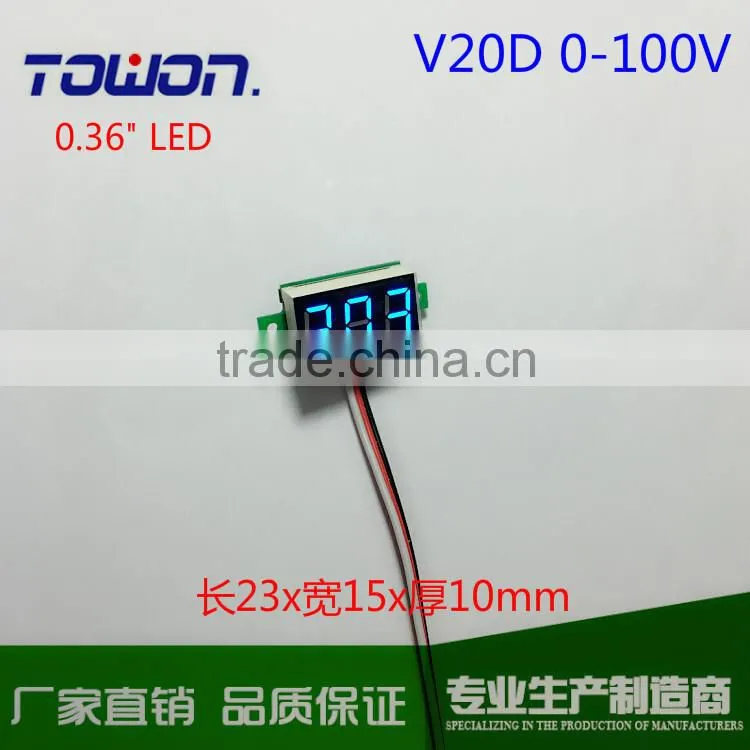

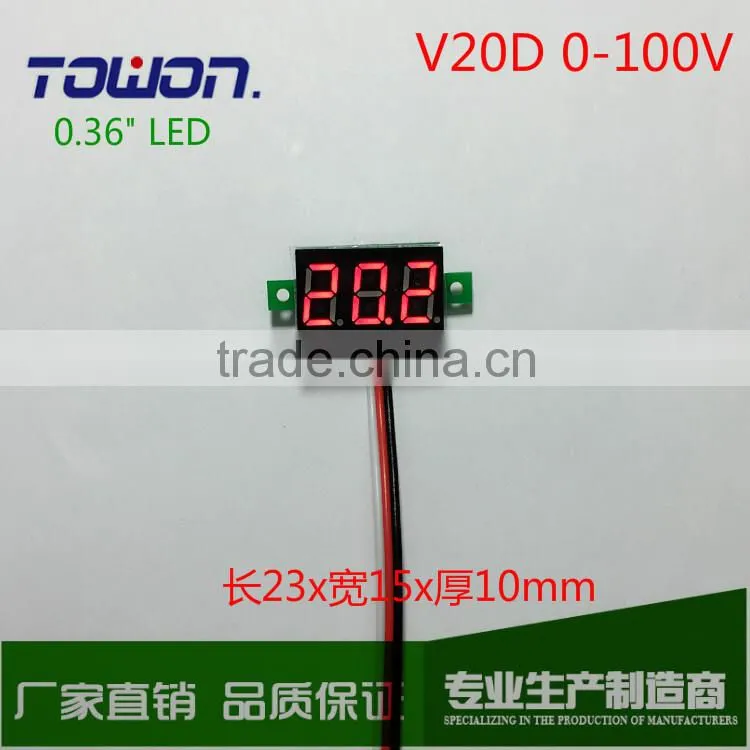

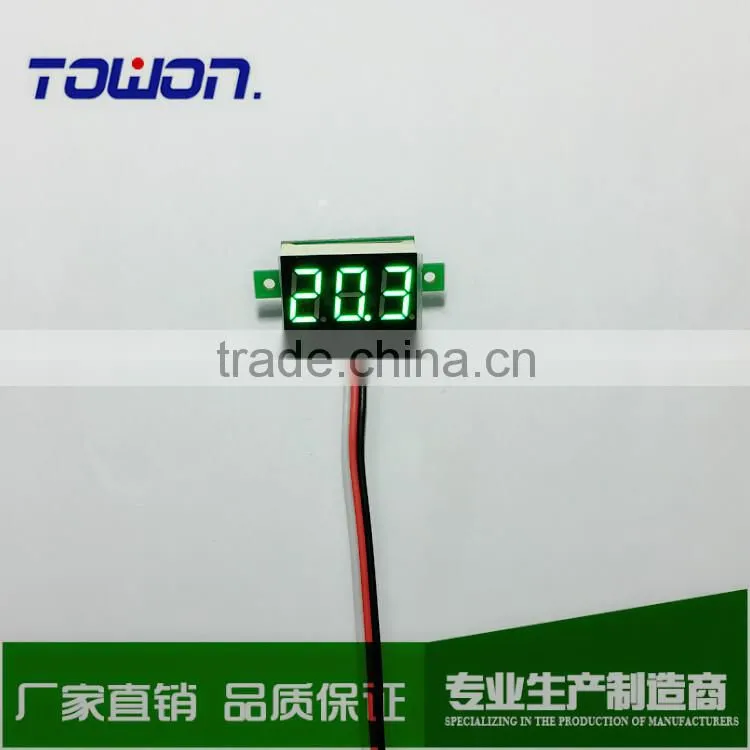

Digital Voltmeter 100V DC Three Bit Red Green Blue 0.36 " LED Voltage Meter With Reverse Connection Protection
US$ 1 - 2
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TOWON
Model Number:
V20D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ningbo wenzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
V18D 3Digits Blue(3-30v) Red(2.5-30V) Green(2.7-30V) LED DC Voltmeter for Battery VoltageUS$ 1 - 2MOQ: 100 Pieces -
0 - 99.9V DC Digital Voltmeter Three Bit Red Green Blue 0.28 "LED 0v to 100v With Reverse Connection ProtectionUS$ 1 - 2MOQ: 1000 Pieces
-
0.56" Green Red Blue LED Waterproof DC Voltmeter 12 Volt Battery Meter 2.5-30V DC Auto Gauge Digital VoltmeterUS$ 2.5 - 3MOQ: 100 Pieces
-
0.56" Green Red Blue LED Waterproof Monitor DC4.5-150V Two Wire Digital Voltmeter for ElectricCarUS$ 3.5 - 4MOQ: 100 Pieces
-
0.4" Waterproof LED Digital Voltmeter 2.5-30V 12V 24V RED Car Motor Motorcycle Panel MeterUS$ 2.2 - 3MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
TOWON
Model Number
V20D
Display Type
Digital Only
Measuring Range
0-100V
Accuracy Class
1%
Operating Temperature
-10~60
Dimensions
23*15*10mm
Descriptions:
Operating: Red:DC0-100V; Blue:DC0-100V;Green:DC0-100V
Installment pitch of holes:28mm
Wire length:15cm
Color:Red,Blue,Green
Temperature:-10centigrade~65centigrade
Hole Size:24*15mm
Net Weight:5g/pcs
Specification:
| Dimension | 23x15x10mm |
| Cutting size | 24x15mm |
| 3-Wire Voltage Measurement Ranage | 0-100V |
| 2-Wire Voltage Measurement Ranage | 3-30V |
| Install Pitch | 28mm |
| Screw dimension | M2.0x12 Self-tapping screws |
| Wire length | 15cm |
| Minimum input | DC 0V |
| Maximum input | DC 100V |
| Display | Three 0.36 "LED digital tube |
| Display color | Red |
| Refresh rate | About 500mS / times |
| Accuracy | 1 %(+/- 1 digit) |
| Operating temperature | -10 °c~ 65 °c |
| Power supply | 3.0-28V |
Wiring:
- Red: Power Supply +
- White: Measure +
- Black: Power Supply -, Measure -
- supports Reverse polarity protectio
-
Wire Diagram 1:
- 3-Wire connection with external power supply
