Hotel Door With Key Card Lock LSD8015

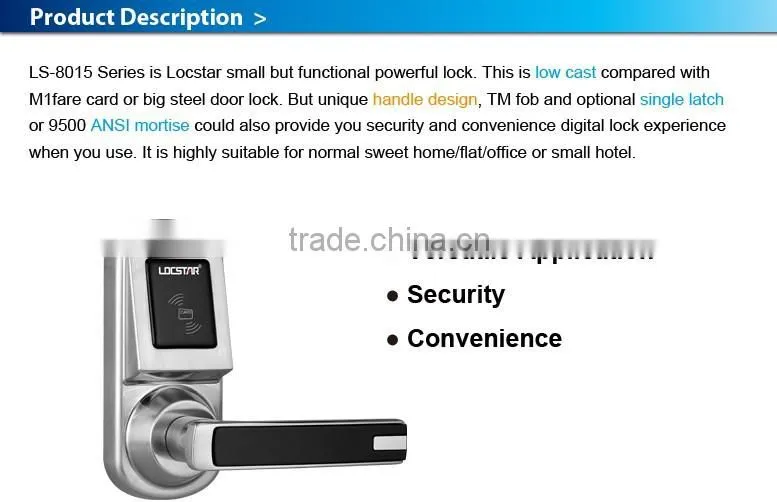

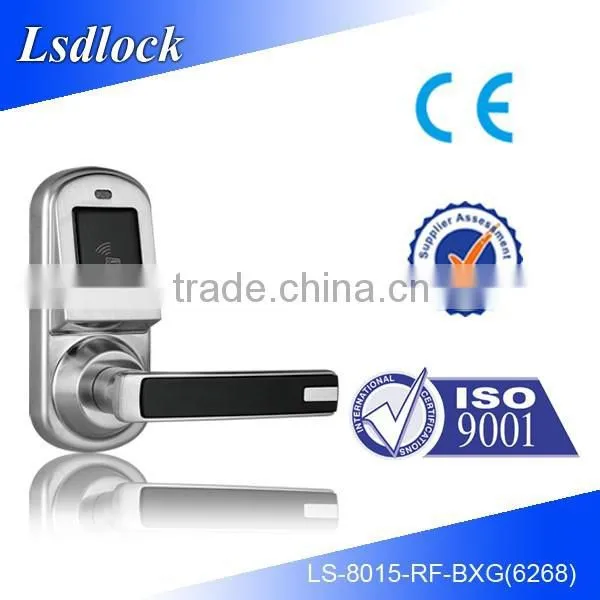

LSD8015-RF Hotel door with key card lock:
1. material: zinc alloy
2. smart design smart card door lock for hotel use
3. smart card / mechanical key unlocking
4. hidden cylinder
5. optional in single latch mortise or 5 latch mortise

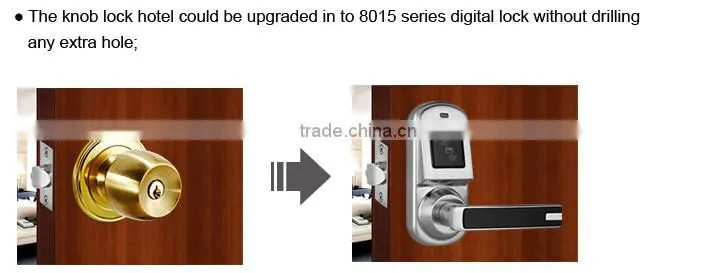

* single latch mortise can replace the tranditional mechanical lock without drilling the door hole
* 5 latch mortise with the function of handle up for double lock
Technical Parameters:
Model No. |
LSD-8015-RF |
Lock type |
Economic Lock for Motel |
Lock open solution |
RF Card (Temic card 125KHz), Mechanical key |
International Standard |
ISO14443-A,ISO11784/785 |
Battery |
4 pieces AA alkaline battery (6V) |
Low voltage alarm |
4.8V(6V power supply) |
Static current |
20~50uA. |
Dynamic current |
70mA. |
Working temperature |
-20°C~55°C |
Storage temperature |
-30°C~70°C |
Working humidity |
15%RH~93%RF |
Average working time of trouble-free |
≥25,000h |
Cylinder |
Hidden cylinder, mechanical key override |
Mortise |
Optional on single latch mortise or 9500# mortise with five latch, deadbolt function |
Mortise size |
Single latch mortise size: 57x94x25.5mm 9500# mortise size: 141x98x22mm |
Lock Panel size |
288x74mm |
Material |
Stainless steel |
Package |
1 piece per box, 6 pieces per carton |
Color |
PVD gold, silver
|
Optional Mortise:
| Single Latch Mortise: | 9500# Mortise |
|
|
Motel Lock System Composition:
Cards Functions
| Cards | Function |
|
1. Authorization card 2. Clock card 3. Room setting card |
These are functions cards for setting the door lock. All new locks must be set by these 3 cards first after installed on the door. |
| 4. Guest card | To open certain guest room, with the time and double locked limit, it's hold by the guest. |
5. Master card |
To open all the doors in one hotel, no limited on deadbolt and time. Kept by the general manager. |
| 6. Building card | To open all the doors in a certain building, limited on deadbolt and time. Kept by the manager. |
| 7. Floor card | To open all the doors in a certain floor ,limited on deadbolt and time. Kept by foremen. |
| 8. Clean up card | To open the locks of the assigned zone, with double-locked and time limit. Kept by house keeper. Before issing clean-up card, have to set up clean up zone first. |
| 9. Emergency card | To open doors with no limits, even when the door is double locked. It can keep lock on long-time unlocking state.Usually General Manager / hotel guard hold this card in case of situation like fire etc. |
| 10. Stop card | To stop the function of the guest card |
| 11. Seal card | To seal the unused rooms. Hold by room Manager. Only Emergency card can open the lock once sealed. |
| 12. Alarm card | To set door ajar funtion, when the lock is not locked well, it will alarm to remind the clients. |
| 13. Don't interrupt card | To set don’t interrupt function in the condition of deadbolt |
| 14. Normally open card | To set the lock in the unlocking state. |
| 15. Check out card | To stop the function of guest room card when guest would like to check out ahead of schedule or the guest room card lost. |
