Home > Construction & Decoration > Lock > Door Lock > Hotel Access Control Door Lock System LSD8098

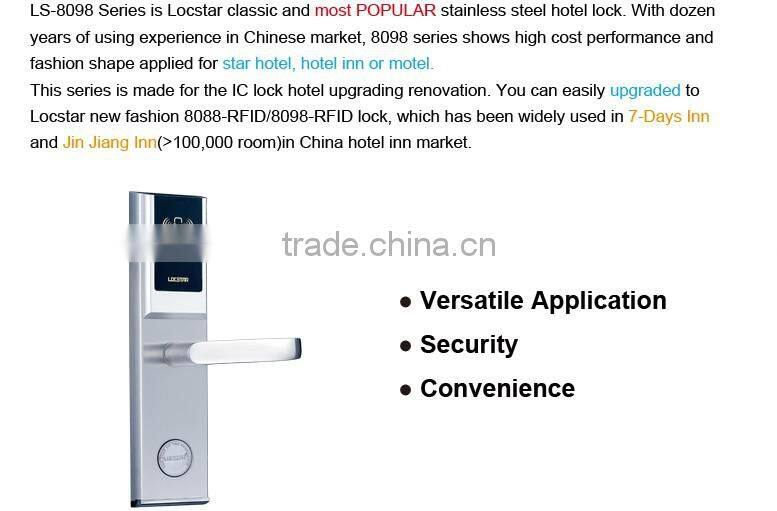

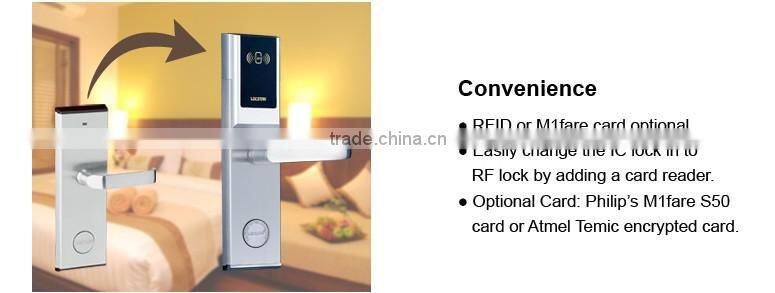

Hotel Access Control Door Lock System LSD8098

Hotel Access Control Door Lock System LSD8098 photo-1

Hotel Access Control Door Lock System LSD8098 photo-2

US$ 20 - 50 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

LSD

Model Number:

LSD-8098-RF

Contact Supplier Request Quote Chat Now

Shenzhen Tong Chuang Xin Jia Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name LSD

Model Number LSD-8098-RF

Start Hotel Door Lock Start Hotel Door Lock Start Hotel Door Lock Start Hotel Door Lock Start Hotel Door Lock

Product Description

Hotel access control door lock system:

Technical Parameters:

Model No.	LSD-8098-RF
Lock type	The durable and convenient Electronic door Lock
Lock open solution	RF Card, Mechanical key
International Standard	ISO14443-A,ISO11784/785
Battery	4 pieces AA alkaline battery (6V)
Low voltage alarm	4.8V(6V power supply)
Static current	20~50uA.
Dynamic current	70mA.
Working temperature	-20°C~55°C
Storage temperature	-30°C~70°C
Working humidity	15%RH~93%RF
Average working time of trouble-free	≥25,000h
Cylinder	Hidden cylinder, mechanical key override
Mortise	ANSI standard mortise
Mortise size	257.3x112.4x28.6mm
Lock Panel size	287x73mm
Material	Stainless steel
Package	1 piece per box, 6 pieces per carton

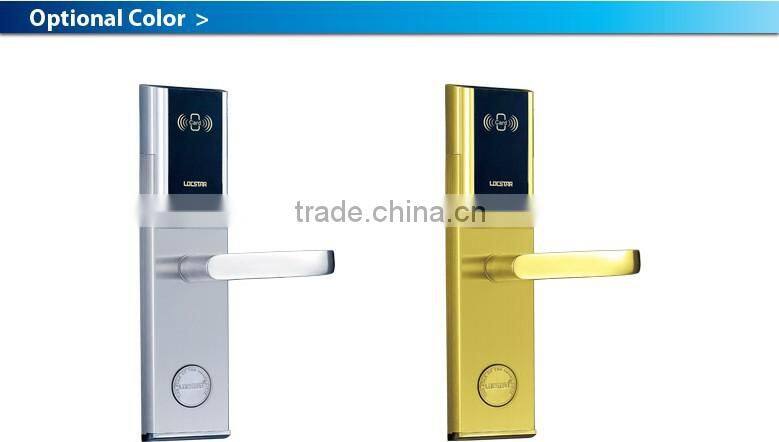

Color	PVD gold, silver

Hotel Access Control Door Lock System Composition:

Cards Functions

Cards	Function
1. Authorization card 2. Clock card 3. Room setting card	These are functions cards for setting the door lock. All new locks must be set by these 3 cards first after installed on the door.
4. Guest card	To open certain guest room, with the time and double locked limit, it's hold by the guest.
5. Master card	To open all the doors in one hotel, no limited on deadbolt and time. Kept by the general manager.
6. Building card	To open all the doors in a certain building, limited on deadbolt and time. Kept by the manager.
7. Floor card	To open all the doors in a certain floor ,limited on deadbolt and time. Kept by foremen.
8. Clean up card	To open the locks of the assigned zone, with double-locked and time limit. Kept by house keeper. Before issing clean-up card, have to set up clean up zone first.
9. Emergency card	To open doors with no limits, even when the door is double locked. It can keep lock on long-time unlocking state.Usually General Manager / hotel guard hold this card in case of situation like fire etc.
10. Stop card	To stop the function of the guest card
11. Seal card	To seal the unused rooms. Hold by room Manager. Only Emergency card can open the lock once sealed.
12. Alarm card	To set door ajar funtion, when the lock is not locked well, it will alarm to remind the clients.
13. Don't interrupt card	To set don’t interrupt function in the condition of deadbolt
14. Normally open card	To set the lock in the unlocking state.
15. Check out card	To stop the function of guest room card when guest would like to check out ahead of schedule or the guest room card lost.
