Specifications
1.Pin code Zwave Lock home automation2.95% lock part self-made
3.Smart lock
4.Deadbolt mortise
5.CE/ISO

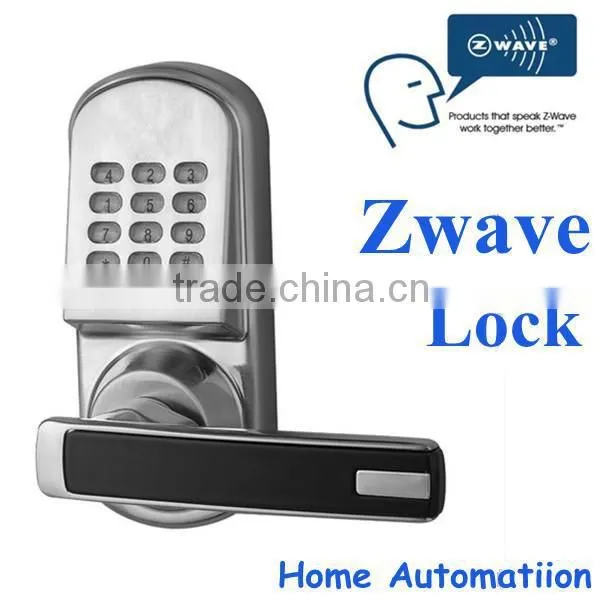

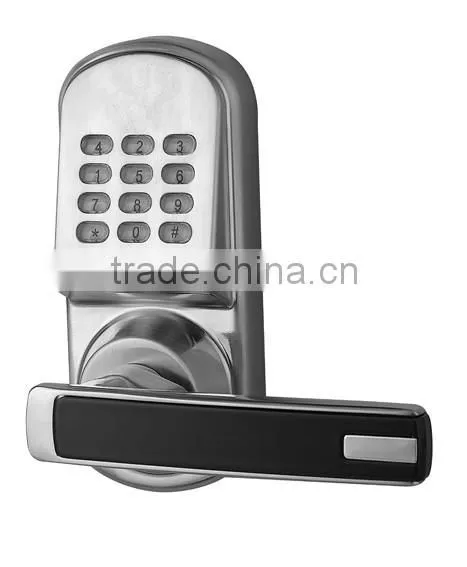

Zwave Lock Model: 8015-Zwave-BXG for home automation
1, Description:
1) Control door lock from anywhere with your smart phone, tablet or internet connected device.
2) Receive notifications when somebody arrive your home security.

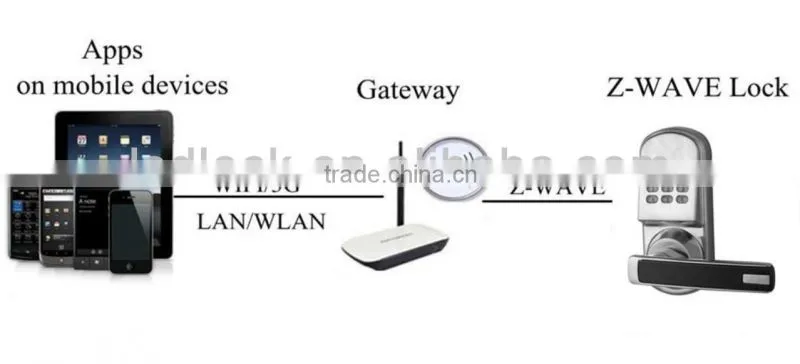

3) Z-WAVE lock system is composed of Z-WAVE lock, Z-WAVE gateway, WIFI.
4) Users: 20 users, add/delete individual users.
5) Certificate: ISO9001/CE/FCC/Z-WAVE Alliance.
2, Technical Parameters:
Model No. |
LS-8015-Zwave |
Lock type |
Z-WAVE Lock |
Key ways |
Zwave/Pin code/Mechanical key |
Z-Wave Frequency |
906.42MHz (US) / 868.42MHz(EU) / 921.42MHz(AU) |
Working Consumption |
<200mA |
Static consumption |
≤20uA |
Working Temperature |
-20°C-55°C |
Battery unlocking lift |
≥10000 times |
Reliability |
≥30000 times |
Mechanical life |
≥500,000 times |
Door Prep |
2-1⁄8" Bore, 1" Edge Bore |
Door Thickness |
1-3/4” (45mm) to 2” (50mm) |
Battery |
4 pieces AA battery (6V) |
Low voltage alarm |
4.8V(6V power supply) |
Panel size |
153.7x67mm |
Mortise size |
141x98x22mm |
Package |
1 piece per box, 6 pieces per carton |
Material |
Zinc alloy |
Finish |
Satin Nickel |

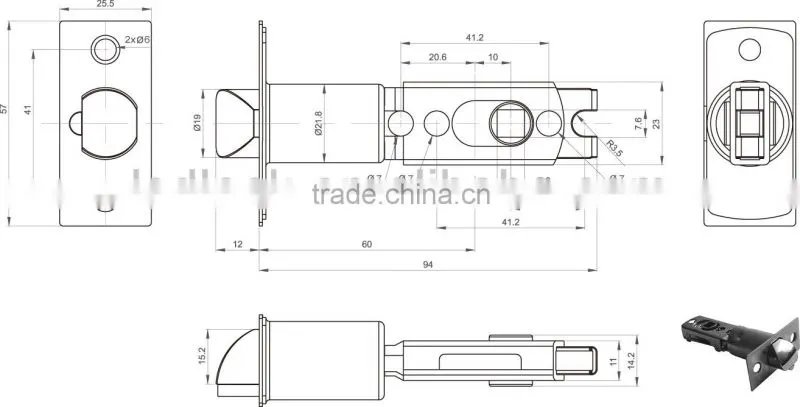

3, Lock panel size: unit:mm

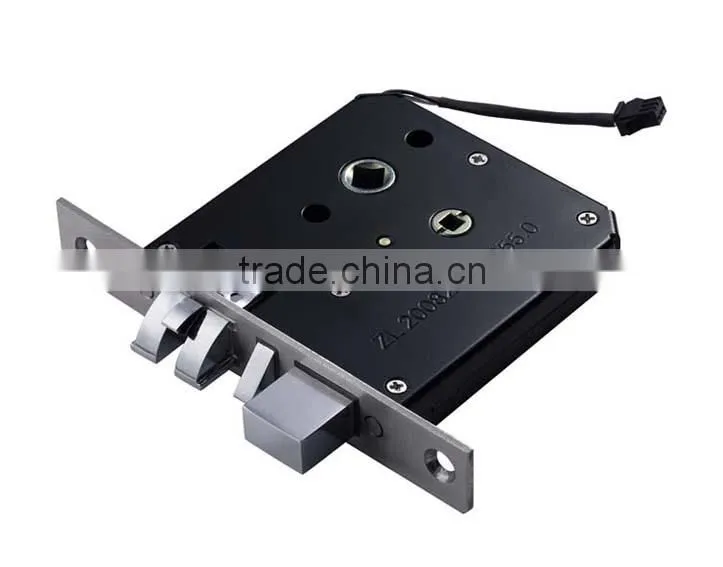

4, Mortise: option with single latch mortise and five latch mortise as follows:
1)Single Latch Mortise:suitable for renovation door without drilling extra hole;
2) Five Latch Mortise:deadbolt function.

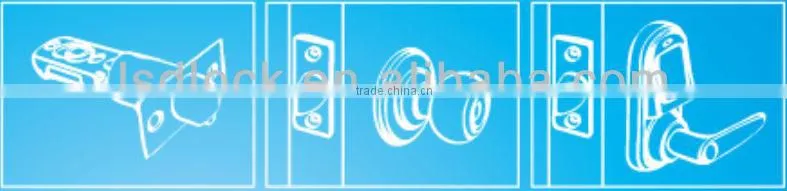

Indoor and outdoor reference:
Factory and US
Pay Term:
30% T/T once orders confirmed.
Balance before shipment.
Delivery terms:
DHL,UPS,EMS,Sea transportation are available.The locks will be shipped within 15 days upon receiving 30% deposit.
Warranty:
1.One-year warranty.
If the lock cannot work within one year period( man-made improper factors are not included). Parts and software solution will be offered with cost price after 1 year warranty.
Why Choose Us?
1. We are electronic lock manufacturer since 1998.
2. Prompt Feedback: within 24 hours.
3. Self-made lock and software, can be adjustble for your special requirements.
4. OEM/ODM Service offered
5. Delivery in time.
6. Resonable price with good after-sale service.
Welcome!
