Specifications
1.LSD8099 WIFI hotel lock device with Z-wave2,Hotel lock system
3,RF card unlock
4,95% lock parts self-made
5,CE/ISO
LSD8099 WIFI Hotel Lock
LSD8099 WIFI Hotel Lock Features:
1.WIFI hotel door lock unlock with WIFI, RF card and mechanical key in emergency;
2.Adopt PHILIPS Mifare card, multi-function with high capacity, is also called one card pass.
The card is not only used as a room card, but also can be used for parking, dining, shopping and so on.
3.Smart hotel key card lodging system, promote the hotel room management efficiency and reduce its costs ;
4.ANSI mortise and EURO mortise, five latch, deadbolt function, high security;
5.Cast steel lock body, weatherproof, suitable for coast area, rain-belt;
6.4 pcs AA battery(6V). Low battery alert function, when the battery is below 4.8V, the lock will alarm;
7.Popular finishes in silvery&PVD gold, fadeless;
8.Mechanical key in emergency;
9.Door thickness requirement: above 35mm;
10. Hotel management software free of charge, the software can be used for different country wth different language.
11.External power interface;
12.LCD display.

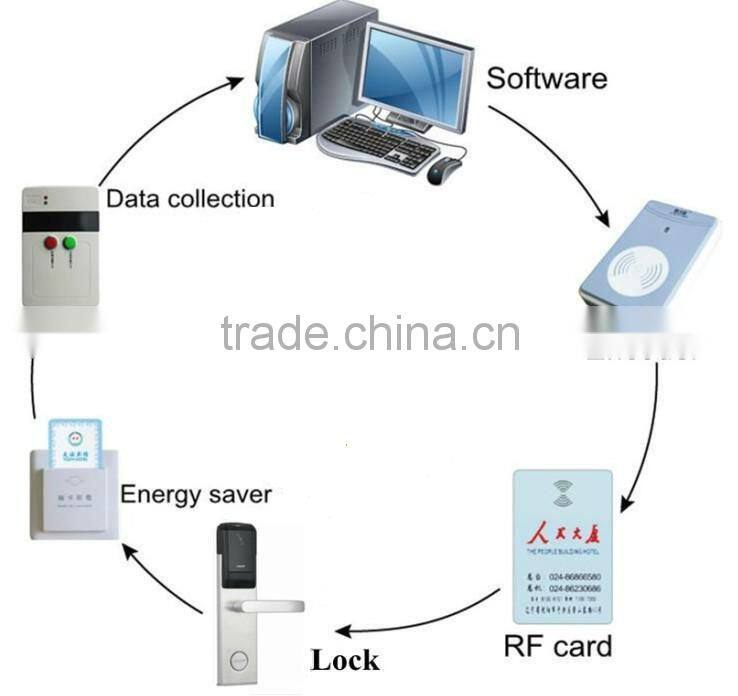

WIFI Hotel Lock System:
Normally,this system is composed of the bellowing parts:
1.Electronic Lock: the quantity is same as the hotel guest room quantity;
2.Encoder: used to issue RF card, such as guest room card. One piece encoder is enough for a hotel;
3.Energy Saver Switch: used to get power with card in guest room. The quantity is same as the guest room quantity;
4.RF proximity Cards: used to unlock room door, the quantity is 3 times of guest room.
5.Data collector(optional): used t collect unlock record.
it is helpfur for hotel to check the unlock record. One piece data collector is enoughfor a hotel;
6.Hotel management software:hotel door lock management system. We provide 1 disk to customer with customer's language, free of charge.
WIFI Hotel Lock Solution With Mifare Card:
Mifare card is designed to satisfy the increasing demand of the hotel in modernization of the
information system, especially for all-in-one card system which can be used not only as the key-card for the door lock, but also can act as the debit card for consuming in different premises in hotel
such as restaurant, café, shopping arcade,SPA, and car parking…
WIFI Hotel Lock Software Interface:
Technical Parameters:
Lock type |
WIFI RFID Hotel Lock |
|
|
Electronic key |
NXP |
ATMEL |
MF S50 |
T5557 |
|
Mifare intelligent card |
Intelligent card |
|
|
International standard |
ISO14443-A ISO11784/785 CE |
|
Encrypting |
48 bits card special logic key encrypting and system data DES encrypting |
|
Elements |
32 bits card special logic key encrypting and system data DES encrypting |
|
Working consumption |
<200Ma working<0.2seconds |
|
Working temperature |
0°C-70°C |
|
Battery |
4 Pieces of AA Batteries |
|
Battery unlocking lift |
>10000times |
|
Reliability |
>30000times |
|
Mechanical life |
>10000times |
|
Low voltage alarm level |
4.8V(6 V Power Supply) |
|
Static consumption |
<25μA <15μA |
|
Mortise Size & Lock Size:
Installation:
Hotel Projects:
Factory and us:
Door Opening Direction:
Delivery terms:
DHL,UPS,EMS,Sea transportation are available.The locks will be shipped within 15 days upon receiving 30% deposit.
Warranty:
1.One-year warranty.
If the lock cannot work within one year period( man-made improper factors are not included). Parts and software solution will be offered with cost price after 1 year warranty.
Why Choose Us?
1. We are electronic lock manufacturer since 1998.
2. Prompt Feedback: within 24 hours.
3. Self-made lock and software, can be adjustble for your special requirements.
4. OEM/ODM Service offered
5. Delivery in time.
6. Resonable price with good after-sale service.
Welcome to LSD!
