Specifications
1.Home automation Zwave WIFI system unlock phone lock2.Zwave lock
3.Lock factory
4.Deadbolt mortise
5.CE/ISO
Zwave Lock- home automation, for better life!
Z-wave Door Lock Description:
1) Z-wave door lock can be integrated into home automation and controlled remotely.
2) Z-wave door lock system is composed of Z-wave lock, Z-wave gateway, WIFI, Phone/Ipad/Computer;
3) Three unlock way:
a, Z-wave unlock: you can unlock your door with Phone/Ipad/Computer via WIFI/3G from anywhere;
b, Pin code unlock, 6 digits, up to 20 pin code users;
c, Mechanical key unlock in emergency, hidden cylinder, mechanial key override;
4) Check door lock status with your Phone/Ipad/Computer conveniently and timely;
5) Check unlock record with your Phone/Ipad/Computer conveniently;
6) Alarm function, when somebody unlock your door illegally, the lock will alarm you;
7) Receive notifications when somebody arrive your home security;
8) Auto re-lock function, high security;
9) 4pcs AA battery(6V), when battery power is lower than 4.8V, it will alarm you to change new battery;
10) Sealed PCB, finishes in satin nickel, waterproof gasket override;
11) Option in two kinds of mortise as follows:
a, Single latch mortise, suitable for renovation door, without drilling extra hole;
b, Five latch mortise, deadbolt, high security;
12) Easy to use, install and program;
13) Certificate: ISO9001/CE/FCC/Z-WAVE Alliance.

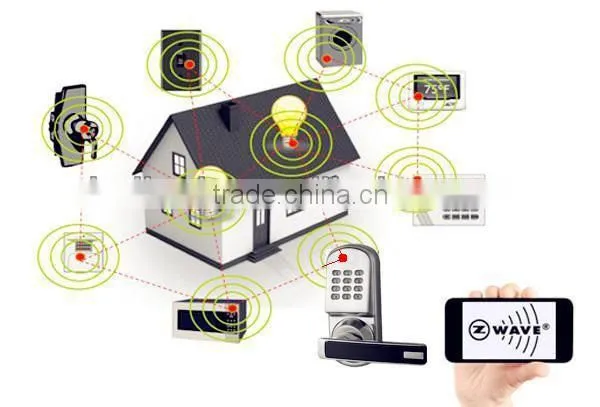

Z-wave is a wireless communications protocol designed for home automation, specifically to remotely control applications in residential and light commercial environments. The technology uses a low-power RF radio embedded or retrofitted into home electronics devices and systems, such as lighting, residential access control, entertainment systems and household appliances.
Z-wave Door Lock Technical Parameters:
Model No. |
LS-8015-Zwave |
Lock type |
Z-WAVE Lock |
Key ways |
Zwave/Pin code/Mechanical key |
Z-Wave Frequency |
906.42MHz (US) / 868.42MHz(EU) / 921.42MHz(AU) |
Working Consumption |
<200mA |
Static consumption |
≤20uA |
Working Temperature |
-20°C-55°C |
Battery unlocking lift |
≥10000 times |
Reliability |
≥30000 times |
Mechanical life |
≥500,000 times |
Door Prep |
2-1⁄8" Bore, 1" Edge Bore |
Door Thickness |
1-3/4” (45mm) to 2” (50mm) |
Battery |
4 pieces AA battery (6V) |
Low voltage alarm |
4.8V(6V power supply) |
Panel size |
153.7x67mm |
Mortise size |
141x98x22mm |
Package |
1 piece per box, 6 pieces per carton |
Material |
Zinc alloy |
Finish |
Satin Nickel |
Z-wave Door Lock panel size: unit:mm

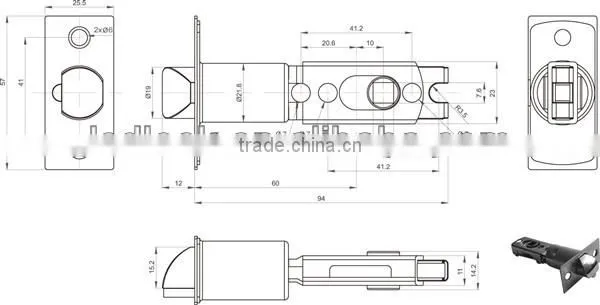

Mortise: option with single latch mortise and five latch mortise as follows:
1)Single Latch Mortise:
suitable for renovation door without drilling extra hole.

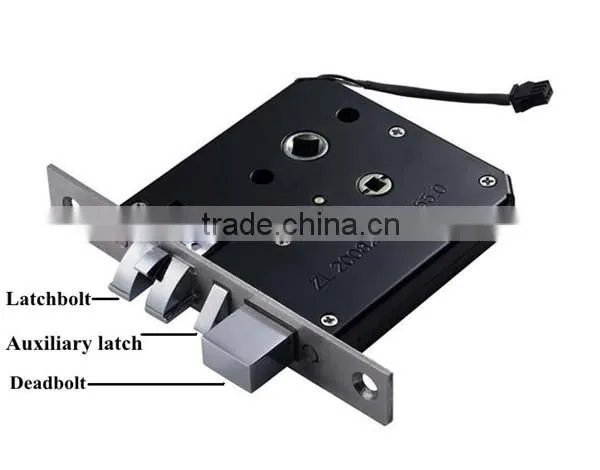

2) Five Latch Mortise:deadbolt function, high security.

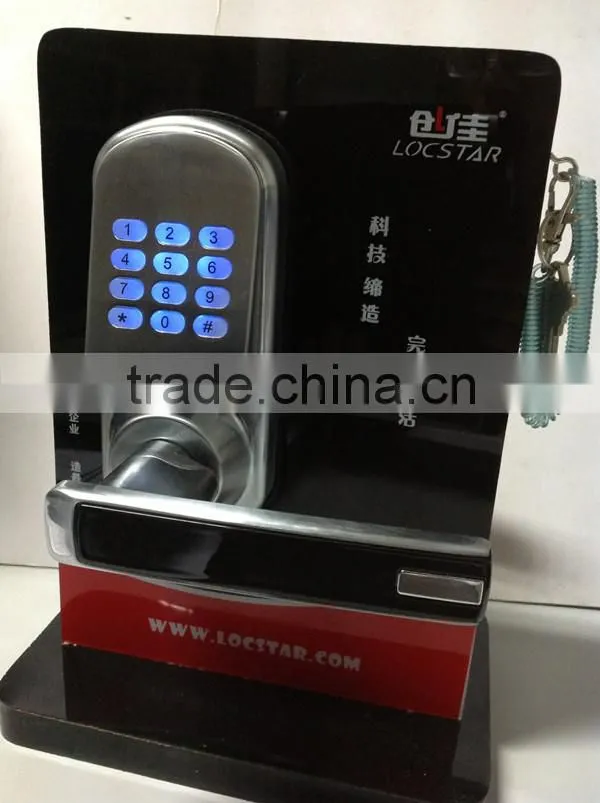

Z-wave Door Lock Display:
Zwave Alliance Certificate:

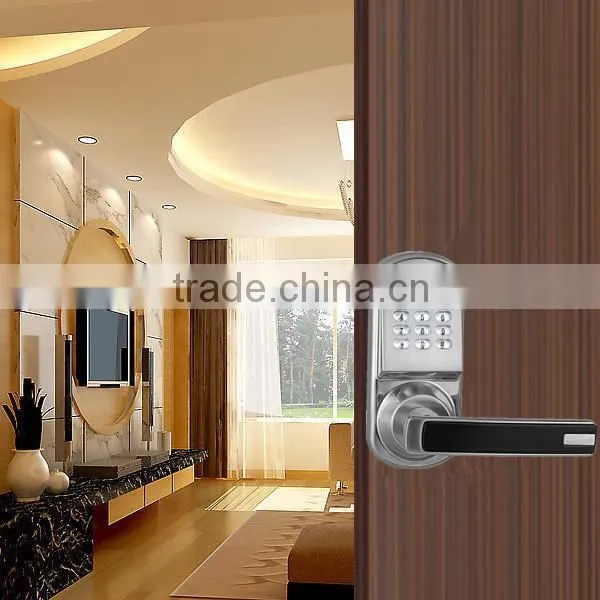

Indoor and outdoor reference:
Pay Term:
30% T/T once orders confirmed.
Balance before shipment.
Delivery terms:
DHL,UPS,EMS,Sea transportation are available.The locks will be shipped within 15 days upon receiving 30% deposit.
Warranty:
1.Two-year warranty.
If the lock cannot work within two year period( man-made improper factors are not included). Parts and software solution will be offered with cost price after 2 years warranty.
Why Choose Us?
1. We are electronic lock manufacturer since 1998.
2. Prompt Feedback: within 24 hours.
3. Self-made lock and software, can be adjustble for your special requirements.
4. OEM/ODM Service offered
5. Delivery in time.
6. Resonable price with good after-sale service.
Welcome!
