LSD602 Classic Hotel Mortise Lock

US$ 28 - 68 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

LSD

Model Number:

LSD602 Hotel Mortise Lock

Contact Supplier Request Quote Chat Now

Shenzhen Tong Chuang Xin Jia Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name LSD

Model Number LSD602 Hotel Mortise Lock

Specifications

1,LSD602 hotel mortise lock manufacture
2,Key card lodging system
3,Adopt RF card
4,95% lock parts self-made
5,Award ISO

LSD602 Hotel Mortise Lock

Lock Features

( LSD-602LY) Hotel electronic door lock with smart card

1	British style
2	Stainless Steel
3	American Temic T5557 Card
4	Time Control Function
5	Low Battery Alarm
6	Door Ajar Alarm
7	None-Disturb Function
8	Suitable for >35mm door
9	Hidden cylinder

Technical Parameters:

1	Lock Type	RFID card lock
2	Unlocking way	ATMEL T5557 smart card
3	Standard	ISO11784/785
4	Approach Distance	>2cm
5	Working consumption	<200mA working <0.2seconds
6	Working Temperature	-20°C--55°C
7	Battery unlocking Cycle	>10000times
8	Working Voltage	4AA Alkaline Batteries 6V
9	Low Voltage Alarm	4.8V
10	Static Consumption	<35uA
11	Weight	about 2.6kg

Indoor and out door reference:

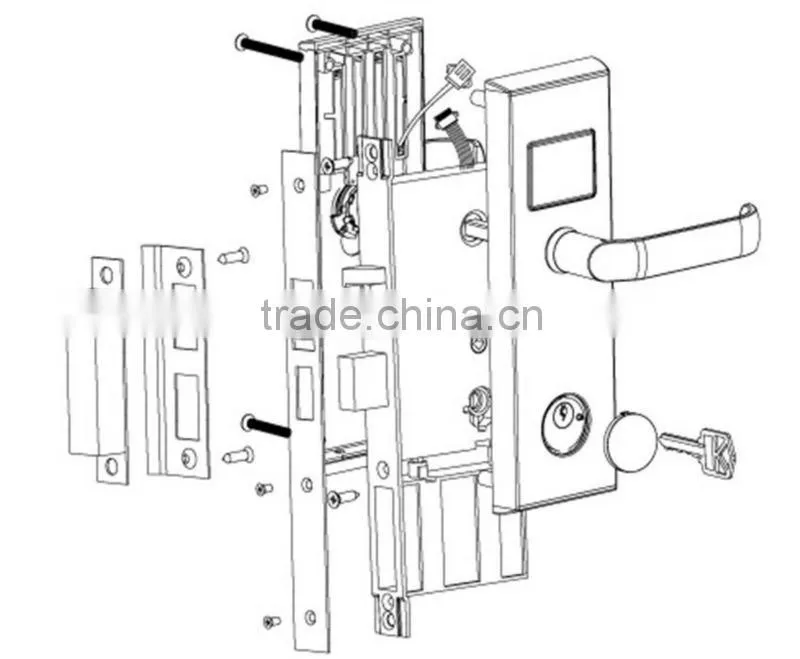

Lock Installation & Size:

Mortise:

Hotel Lock Set:

Normally,this system is composed of the bellowing parts:
1. Lock (qty = guest room)	For open the door
2. Reader (1pcs/hotel )	For issuing all kinds of cards
3. Switch (qty = guest room)	To get the power
4. RF Cards (qty = 3 times of guest room)	For open the lock
5. Data collector (1pcs/hotel, optional by customers	For getting the time and times of the entrance information from the lock
6. Self developed software 1 disk, optional with customer's language, free	For setting the program the whole system.

Card instructions:

Card Function
1.Authorization card 2.Clock card 3.Room setting card	are basic setting cards ,all new locks after installation on door must be set by this three cards first.
4.seal card:	seal the unused rooms.
5.stop card:	stop the function of guest room card
6.check-out card:	stop the function of guest room card when guest would like to check out ahead of schedule or the guest room card lost.
7.Frequency open card:	Set the lock in the long unlocking state.
8.Alarm card:	set alarm funtion,when the lock in the condition of false locking and uncompleted locking.
9.Don’t interrupt card:	set don’t interrupt function in the condition of deadbolt
10.Master card:	Can open all the doors in one hotel ,don’t limited on deadbolt and time.Usually ,the general manager hold this card.
11.Emergency card:	open the door in the emergency condition and keep lock on the long-unlocking state.Usually ,the manager hold this card
12.Building card:	Can open all the doors in a certain building ,limited on deadbolt and time.Usually,the manager hold this card.
13.Floor card:	Can open all the doors in a certain floor ,limited on deadbolt and time. Usually ,the foremen hold this cards.
14.Multi –room card:	can open all the doors in a certain clean -rooms.Usually,the clean staff hold this card.
15.Guest room card:	open the certain guest room.guest hold this card.

Software interface

Self made Software system can be compatibility with customer's hotel PMS. E.G. Can be compatibility to the Fidelo software of star hotels and hotel chain.

Hotel Projects:

Factory and US:

Pay Term:

30% T/T once orders confirmed.

Balance before shipment.

Delivery terms:

DHL,UPS,EMS,Sea transportation are available.The locks will be shipped within 15 days upon receiving 30% deposit.

Warranty:

1.One-year warranty.

If the lock cannot work within one year period( man-made improper factors are not included). Parts and software solution will be offered with cost price after 1 year warranty.

Why Choose Us?

1. We are electronic lock manufacturer since 1998.

2. Prompt Feedback: within 24 hours.

3. Self-made lock and software, can be adjustble for your special requirements.

4. OEM/ODM Service offered

5. Delivery in time.

6. Resonable price with good after-sale service.

Welcome to LSD!
