viscometer astm d445

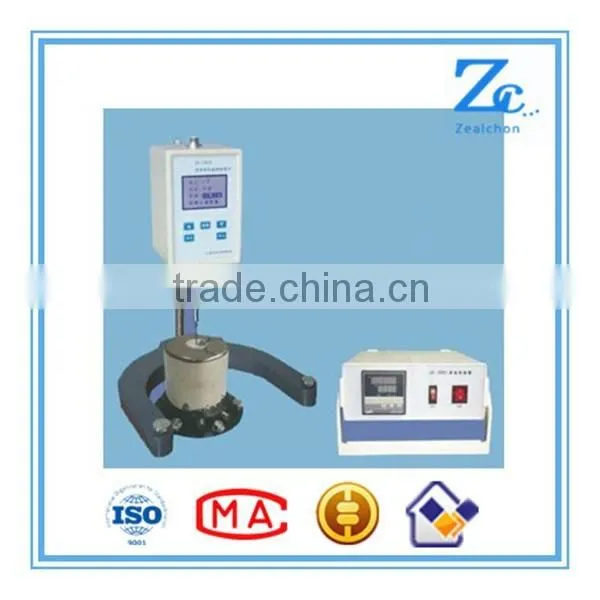

Using rotary process to test the apparent viscosity of asphalt road in the temperature range above 45 °C, by milli-Pascal seconds (MPa. s).
According to the measurement results, we can find out the recommended mixing and compaction construction temperatures.
According to the measurement results, we can find out the recommended mixing and compaction construction temperatures. Compared with
similar products, with high accuracy, stable viscosity value display, easy to read, easy to operate, good anti-jamming performance advantages.
Specially used to measrue apparent viscosity of the asphalt road. Also used to measure the viscosity of hot melt adhesive, wax,
polymer and other fluids
| Main Technical Indicators | |
| Parameter Names | Details |
| Measuring range | 100mPa.s ~ 200000mPa. S |
| Rotor Size | 27 # rotor (21 #, 28 #, 29 # rotor is optional) |
| Rotor Speed | 5 r/ min, 10 r/ min, 20 r / min, 50 r/ min |
| Measuring modes | Manual, automatic |
| measurement error | ± 3% F.S |
| Temperature range | RT +20 °C ~ 200 °C |
| Temperature accuracy | ± 0.1 °C |
| Power supply | Voltage 220V ± 10V, frequency 50Hz ± 10Hz |
| Net weight | 2.5 kg (not including the base form at the top) |
| Boudary Dimensions | 105mm × 120mm × 160mm (Do not include the base) |
replacement warranty:1 year
1. Supplied to visit the factory and study technical training.
2. Support 24-hour technical e-mail
3. Provide laboratory construction program design guidelines
4. Provide customized special requirements
