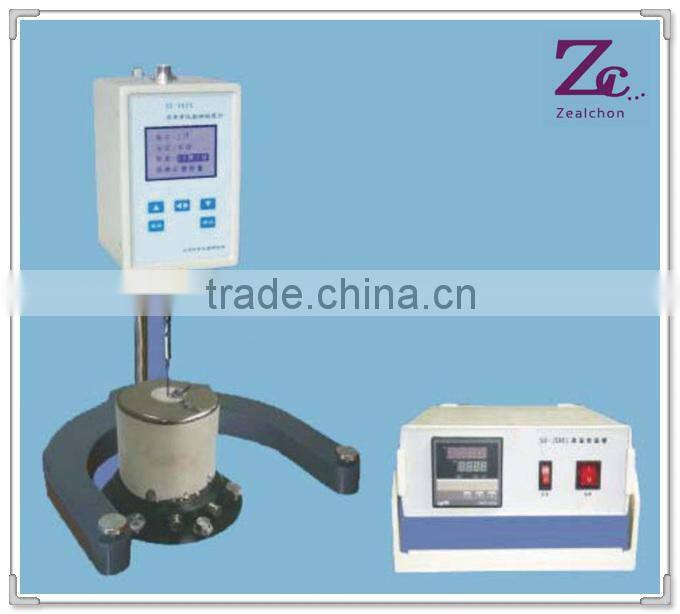

A21 Asphalt brinell rotational viscometer YSD - 062,Rotational viscometer,digital rotational viscometer,High temperature digital
Technical parameters
| Item number | A021 |
| Measuring range | 100mPa.s ~ 200000mPa. S |
| Rotor Size | 27 # rotor (21 #, 28 #, 29 # rotor is optional) |
| Rotor Speed | 5 r/ min, 10 r/ min, 20 r / min, 50 r/ min |
| Measuring modes | Manual, automatic |
| measurement error | ± 3% F.S |
| Temperature range | RT +20 °C ~ 200 °C |
| Temperature accuracy | ± 0.1 °C |
| Power supply | Voltage 220V ± 10V, frequency 50Hz ± 10Hz |
| Net weight | 2.5 kg (not including the base form at the top) |
| Boudary Dimensions | 105mm × 120mm × 160mm (Do not include the base) |
Usage
Using rotary process to test the apparent viscosityof asphalt road in the temperature range above 45 °C, by milli-Pascal seconds (MPa. s)
According to the measurement results, we can find out the recommended mixing and compaction construction temperatures.
Compared with similar products, with high accuracy, stable viscosity value display, easy to read, easy to operate, good anti-jamming performance advantages.
Specially used to measrue apparent viscosity of the asphalt road. Also used to measure the viscosity of hot melt adhesive, wax, polymer and other fluids.
1. Our company is committed to provide products and service of the highest quality and greatest value to our customers.
2. We provide one-year free warranty and lifetime maintenance for our products by email.
3. If you have any technical questions, please feel free to contact us.
