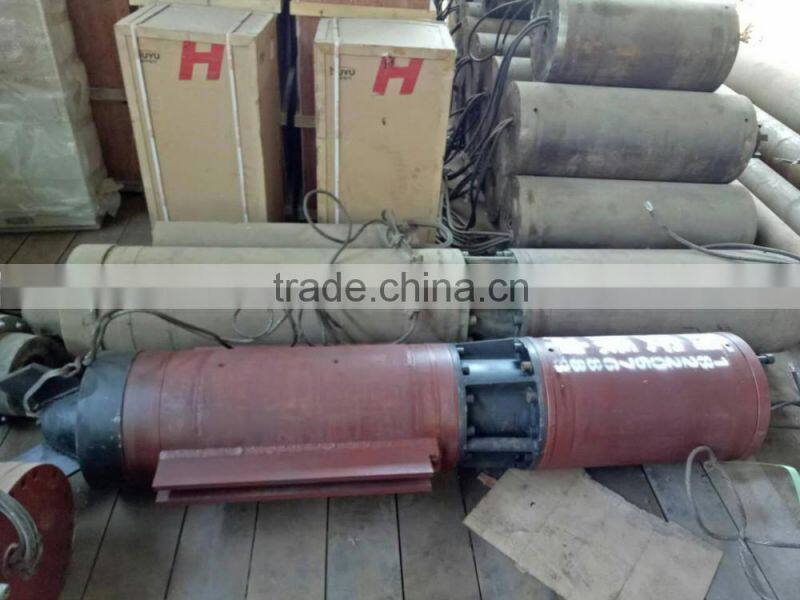

ZCQ130 Vibroflotation Mechanical Stone Columns
US$ 15000.00 - 15000.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Zealchon
Model Number:
ZCQ130
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZCQ300 Vibro-replacement Stone Columns Has a VibratorUS$ 20000.00 - 20000.00MOQ: 1 Set -
Stone and Concrete Column Construction Hydraulic VibroflotUS$ 10,000 - 41,000MOQ: 1 Piece
-
ZCQ300 Vibroflot Soil CompactorsUS$ 20000.00 - 20000.00MOQ: 1 Set
-
Ground Improvement by Electric Vibroflotation Quality ChoiceUS$ 10,000 - 20,000MOQ: 1 Piece
-
ZCQ100 Earth Tech Vibro Replacement -stone Columns Vibroflot EquipmentUS$ 20000.00 - 20000.00MOQ: 1 Roll
Place of Origin
Shaanxi, China
Brand Name
Zealchon
Model Number
ZCQ130
After-sales Service Provided
Engineers available to service machinery overseas
Vibroflotation mechanical
| Name:Vibroflotation mechanical Product Code:zcq Model:zcq30,zcq45,zcq55,zcq75,zcq100,zcq130,zcq150,zcq180 Updated: Products Unit:Xi’an Vibroflotation mechanical Co., Ltd. Views:512 More Images: |
Details
Model Data | ZCQ 45 | ZCQ 55 | ZCQ 75 | ZCQ 100 | ZCQ 130 | ZCQ 150 | ZCQ 180 | ||
Electrical machinery | Nominal capacity | kw | 45 | 55 | 75 | 100 | 130 | 150 | 180 |
Rotational speed | r/mim | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | |
Nominal current | A | 80 | 100 | 150 | 190 | 250 | 290 | 350 | |
Vibrated mechanism | frequency | HZ | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
Brake torque | N.m | 47 | 56 | 69 | 78 | 88 | 96 | 106 | |
Rated force | kN | 110 | 130 | 160 | 180 | 200 | 225 | 250 | |
Amplitude when empty | mm | ≥10 | ≥9.8 | ≥9.5 | ≥9.2 | ≥9.0 | ≥8.8 | ≥8.5 | |
Current when empty | A | ≤35 | ≤40 | ≤50 | ≤60 | ≤70 | ≤80 | ≤90 | |
diameter | mm | 360 | 390 | 426 | 426 | 426 | 426 | 426 | |
length | mm | ≤2230 | ≤2465 | ≤2600 | ≤2750 | ≤2860 | ≤3000 | ≤3150 | |
Gross weight | kg | 1000 | 1350 | 1800 | 1950 | 2200 | 2350 | 2600 | |
