Home > Products > Hotel Lock > shenzhen electronic lock wifi lock lsd 606
shenzhen electronic lock wifi lock lsd 606
- 4000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | LSD | |
Model Number | LSD-606XJ |
Product Description
Specifications
1. Zinc Alloy2. Wireless, powered by batteries
3. Free Software with Optional Languages
4. 1 Year Warranty
Sercurity Features

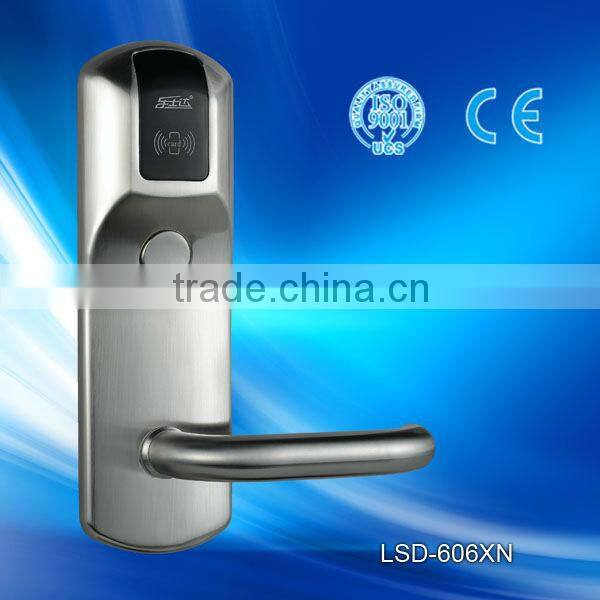

( LSD-606XN: Silver Finish) hotel access card lock and software system
1 | Features |
2 | British style |
3 | Zinc Alloy Casting with electroplating treatment |
4 | American Temic T5557 Card |
5 | Time Control Function |
6 | Low Battery Alarm |
7 | Door Ajar Alarm |
8 | None-Disturb Function |
9 | Suitable for >35mm door |
10 | Hidden cylinder |
Applications
- Suitable for small to very large scale hotels or hotel inns
- Easily replaces existing mechanical or electronic door locks
- Access control for guest rooms, main entrance and common areas
- High security
- Emergency access: Emergency keycard, mechanical key
- Operates with a completely sealed contactless reader
- Batteries last up to 1 years
- Low battery indicator alerts staff
- Lock programming and audit are not erased during battery replacement
- Wear resistant construction and finish
Technical Parameters:
1 | Lock Type | RFID card lock |
2 | Unlocking way | ATMEL T5557 smart card |
3 | Standard | ISO11784/785 |
4 | Approach Distance | >2cm |
5 | Working consumption | <200mA working <0.2seconds |
6 | Working Temperature | -20°C--55°C |
7 | Battery unlocking Cycle | >10000times |
8 | Working Voltage | 4AA Alkaline Batteries 6V |
9 | Low Voltage Alarm | 4.8V |
10 | Static Consumption | <35uA |
11 | Weight | about 2.6kg |

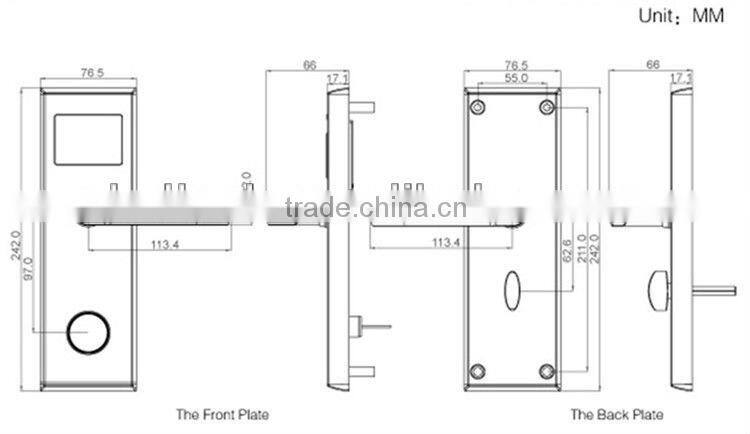

Lock size:
Hotel lock Set:
Normally,this system is composed of the bellowing parts: | |
1. Lock (qty = guest room) | For open the door |
2. Reader (1pcs/hotel ) | For issuing all kinds of cards |
3. Switch (qty = guest room) | To get the power |
4. RF Cards (qty = 3 times of guest room) | For open the lock |
5. Data collector (1pcs/hotel, optional by customers | For getting the time and times of the entrance information from the lock |
6. Self developed software 1 disk, optional with customer's language, free | For setting the program the whole system. |
Card instructions:
Card Function |
|
1.Authorization card 2.Clock card 3.Room setting card | are basic setting cards ,all new locks after installation on door must be set by this three cards first. |
4.seal card: | seal the unused rooms. |
5.stop card: | stop the function of guest room card |
6.check-out card: | stop the function of guest room card when guest would like to check out ahead of schedule or the guest room card lost. |
7.Frequency open card: | Set the lock in the long unlocking state. |
8.Alarm card: | set alarm funtion,when the lock in the condition of false locking and uncompleted locking. |
9.Don’t interrupt card: | set don’t interrupt function in the condition of deadbolt |
10.Master card: | Can open all the doors in one hotel ,don’t limited on deadbolt and time.Usually ,the general manager hold this card. |
11.Emergency card: | open the door in the emergency condition and keep lock on the long-unlocking state.Usually ,the manager hold this card |
12.Building card: | Can open all the doors in a certain building ,limited on deadbolt and time.Usually,the manager hold this card. |
13.Floor card: | Can open all the doors in a certain floor ,limited on deadbolt and time. Usually ,the foremen hold this cards. |
14.Multi –room card: | can open all the doors in a certain clean -rooms.Usually,the clean staff hold this card. |
15.Guest room card: | open the certain guest room.guest hold this card. |
Software interface
Self made Software system can be worked alone or used with customer's own PMS system.E.G. Can be compatible to the Fidelo software of domestic star hotels or hotel chain.

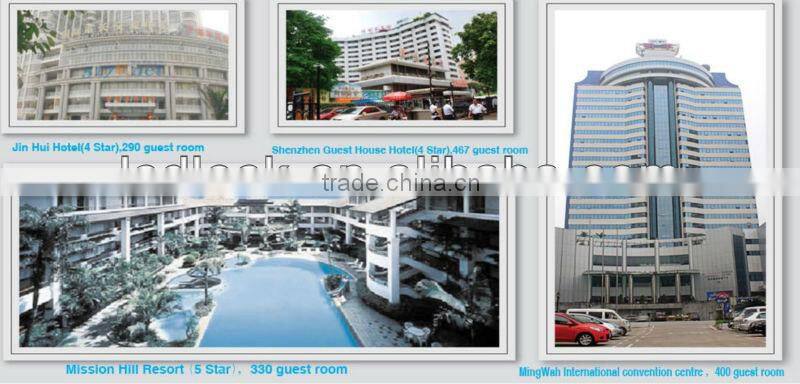

Hotel Projects
Factory and US
Pay Term:
30% T/T once orders confirmed.
Balance before shipment.
Delivery terms
DHL,UPS,EMS,Sea transportation are available.The locks will be shipped within 15 days upon receiving 30% deposit.
Warranty
1.One-year warranty.
If the lock cannot work within one year period( man-made improper factors are not included). Parts and software solution will be offered with cost price after 1 year warranty.
Why Choose Us?
1. We are electronic lock manufacturer since 1998.
2. Prompt Feedback: within 24 hours.
3. Self-made lock and software, can be adjustble for your special requirements.
4. OEM/ODM Service offered
5. Delivery in time.
