Specifications
1.mortise lock card key software2.for hotel
3.2.5KG
4.card and key unlocking
5.ce
Lock Features

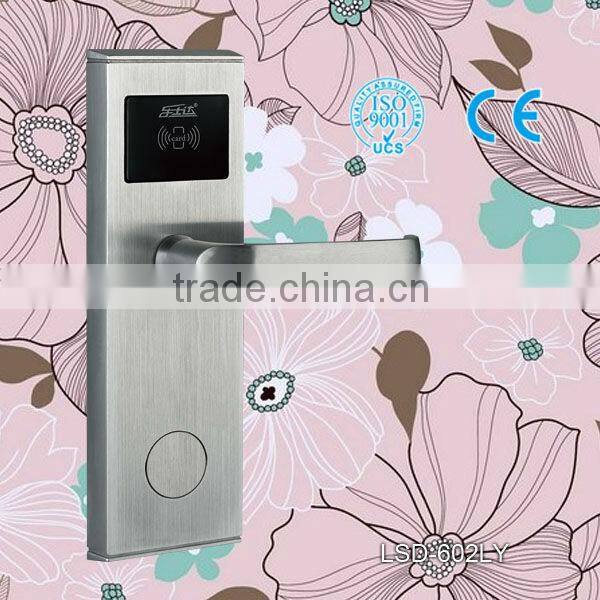

( LSD-602LY) Hotel electronic door lock with smart card
| 1 | British style |
| 2 | Stainless Steel |
| 3 | American Temic T5557 Card |
| 4 | Time Control Function |
| 5 | Low Battery Alarm |
| 6 | Door Ajar Alarm |
| 7 | None-Disturb Function |
| 8 | Suitable for >35mm door |
| 9 | Hidden cylinder |
Technical Parameters
| 1 | Lock Type | RFID card lock |
| 2 | Unlocking way | ATMEL T5557 smart card |
| 3 | Standard | ISO11784/785 |
| 4 | Approach Distance | >2cm |
| 5 | Working consumption | <200mA working <0.2seconds |
| 6 | Working Temperature | -20°C--55°C |
| 7 | Battery unlocking Cycle | >10000times |
| 8 | Working Voltage | 4AA Alkaline Batteries 6V |
| 9 | Low Voltage Alarm | 4.8V |
| 10 | Static Consumption | <35uA |
| 11 | Weight | about 2.6kg |
Indoor and out door reference
Lock Size
Mortise Lock Set
| Normally,this system is composed of the bellowing parts: | |
| 1. Lock (qty = guest room) | For open the door |
| 2. Reader (1pcs/hotel ) | For issuing all kinds of cards |
| 3. Switch (qty = guest room) | To get the power |
| 4. RF Cards (qty = 3 times of guest room) | For open the lock |
| 5. Data collector (1pcs/hotel, optional by customers | For getting the time and times of the entrance information from the lock |
|
6. Self developed software 1 disk, optional with customer's language, free |
For setting the program the whole system. |
Card instructions
Card Function |
|
|
1.Authorization card 2.Clock card 3.Room setting card |
are basic setting cards ,all new locks after installation on door must be set by this three cards first. |
4.seal card: |
seal the unused rooms. |
5.stop card: |
stop the function of guest room card |
6.check-out card: |
stop the function of guest room card when guest would like to check out ahead of schedule or the guest room card lost. |
7.Frequency open card: |
Set the lock in the long unlocking state. |
8.Alarm card: |
set alarm funtion,when the lock in the condition of false locking and uncompleted locking. |
9.Don’t interrupt card: |
set don’t interrupt function in the condition of deadbolt |
10.Master card: |
Can open all the doors in one hotel ,don’t limited on deadbolt and time.Usually ,the general manager hold this card. |
11.Emergency card: |
open the door in the emergency condition and keep lock on the long-unlocking state.Usually ,the manager hold this card |
12.Building card: |
Can open all the doors in a certain building ,limited on deadbolt and time.Usually,the manager hold this card. |
13.Floor card: |
Can open all the doors in a certain floor ,limited on deadbolt and time. Usually ,the foremen hold this cards. |
14.Multi –room card: |
can open all the doors in a certain clean -rooms.Usually,the clean staff hold this card. |
15.Guest room card: |
open the certain guest room.guest hold this card. |
Factory and US
Payment Term
30% T/T once orders confirmed.
Balance before shipment.
Delivery terms
DHL,UPS,EMS,Sea transportation are available.The locks will be shipped within 15 days upon receiving 30% deposit.
Warranty
1.One-year warranty.
If the lock cannot work within one year period( man-made improper factors are not included). Parts and software solution will be offered with cost price after 1 year warranty.
Why Choose Us?
1. We are electronic lock manufacturer since 1998.
2. Prompt Feedback: within 24 hours.
3. Self-made lock and software, can be adjustble for your special requirements.
4. OEM/ODM Service offered
5. Delivery in time.
6. Resonable price with good after-sale service.
