Specifications
1.Shenzhen hotel locks system software supplier2,Five latch mortise
3,RF card unlock, contactless
4,Lock factory
5,CE
Hotel Door Lock, Suitable for Economic Hotel
LSD8002 Hotel Door Lock Features:
1.Electronic hotel door lock, unlock with RF card, touchless&keyless;
2.Adopt two kinds of RF card:
1) American ATMEL Temic card, it is used as a room card, suitable for basic hotel room management;
2) PHILIPS Mifare card, multi-function with high capacity, it is also called one card pass.
The card is not only used as a room card, but also can be used for parking, dining, shopping and so on.
3.Smart hotel key card lodging system, promote the hotel room management efficiency and reduce its costs ;
4.ANSI mortise and EURO mortise, five latch, deadbolt function, high security;
5.Stainless steel lock body, weatherproof, suitable for coast area, rain-belt;
6.4 pcs AA battery(6V). Low battery alert function, when the battery is below 4.8V, the lock will alarm;
7.Popular finishes in silvery&PVD gold, fadeless;
8.Mechanical key in emergency
9.Door thickness requirement: above 35mm;
10. Hotel management software free of charge, the software can be used for different country wth different language.

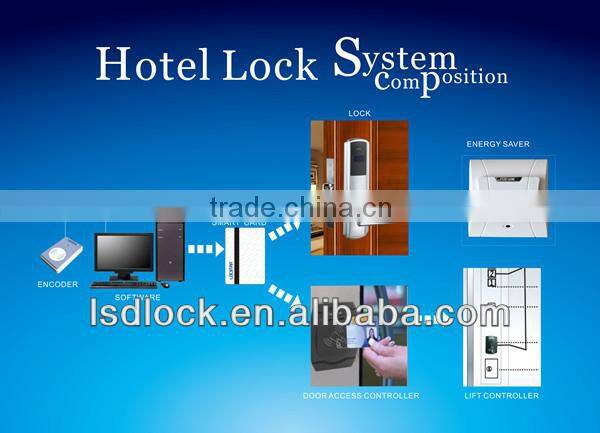

Hotel Door Lock System:
Normally,this system is composed of the bellowing parts:
1.Electronic lock: used for guest room, unlock with RF card;
2.Encoder: used to issue/read RF card
3.Energy saver switch: used to get power with card in guest room;
4.RF cards: used to unlock room door;
5.Data collector(optional): collect unlock record;
6.Hotel management software:hotel door lock management system.
7.Door access control(optional): used for hotel gate door, unlock with RF card;
8.Elevator control(optional): used for elevator.
Technical Parameters:
Model No. |
LSD-8002-RF-BXG/PVD |
Lock type |
Hotel Lock |
Lock open solution |
RF card, Mechanical key |
International Standard |
ISO14443-A,ISO11784/785 |
Encrypting Elements |
48 bits card special logic key encrypting and system data DES encrypting 32 bits card special logic key encrypting and system data DES encrypting |
Working Consumption |
≤200mA working ≤0.2 seconds |
Static consumption |
≤25u A,≤15u A |
Working Temperature |
0°C--70°C |
Battery unlocking lift |
≥10000 times |
Reliability |
≥30000 times |
Mechanical life |
≥500,000 times |
Battery |
4 pieces AA battery (6V) |
Low voltage alarm |
4.8V(6V power supply) |
Cylinder |
Hidden cylinder, mechanical override |
Mortise |
ANSI mortise, five latch, deadbolt function |
Mortise size |
202.3x106.1x28.6mm |
Panel size |
242x76.5mm |
Package |
1 piece per box, 6 pieces per carton |
Material |
Stainless steel |
Color |
PVD gold&silvery |

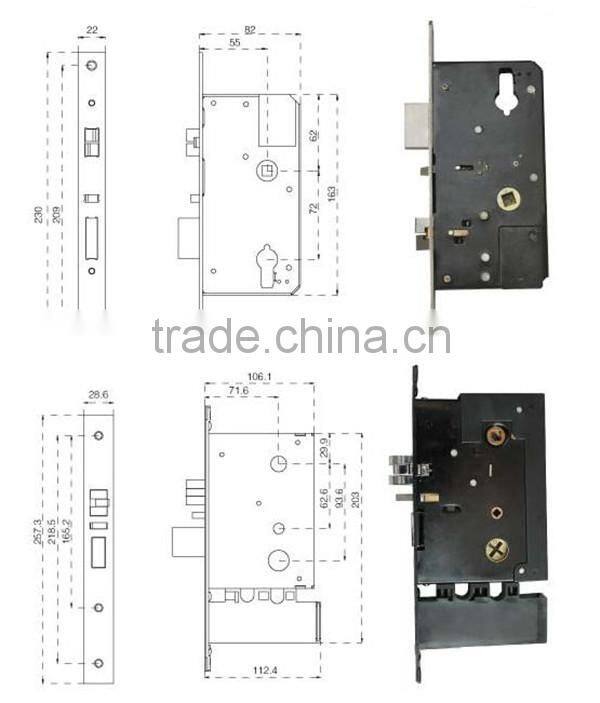

EURO&ANSI Mortise Size:
Hotel Door Lock Installation:

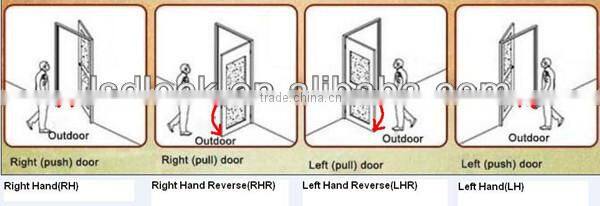

Door Swing Direction:
Please confirm your door swing direction as follows:
Hotel Projects:
Factory and us:
Delivery terms:
DHL,UPS,EMS,Sea transportation are available.The locks will be shipped within 15 days upon receiving 30% deposit.
Warranty:
1.One-year warranty.
If the lock cannot work within one year period( man-made improper factors are not included). Parts and software solution will be offered with cost price after 1 year warranty.
Why Choose Us?
1. We are electronic lock manufacturer since 1998.
2. Prompt Feedback: within 24 hours.
3. Self-made lock and software, can be adjustble for your special requirements.
4. OEM/ODM Service offered
5. Delivery in time.
6. Resonable price with good after-sale service.
