C124 Coarse (fine) Aggregate Packing Density Tightness Test Apparatus

C124 Coarse (fine) Aggregate Packing Density Tightness Test Apparatus thumbnail-1
C124 Coarse (fine) Aggregate Packing Density Tightness Test Apparatus photo-1
US$ 200 - 800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Zealchon
Model Number:
C124 coarse (fine) aggregate packing density tightness test apparatus
Contact Supplier Request Quote Chat Now
Xian Zealchon Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Brand Name Zealchon
Model Number C124 coarse (fine) aggregate packing density tightness test apparatus
Power Electronic
Usage Auto Testing Machine

Product Description

1. Test the accumulation degrees, tightness and void fraction of the sand when it’s piled up naturally;

2. Test volume density of coarse aggregate (sand) , including natural accumulation state, pounding the condition the clearance rate of packing density and accumulation condition.



                                Technical Parameters
Parameter   Names Details
Sand volume tube metal plate size
Inner diameter 108 mm
The clear height 109 mm
Thickness 2 mm
The tube bottom thickness 5 mm
Volume 1L

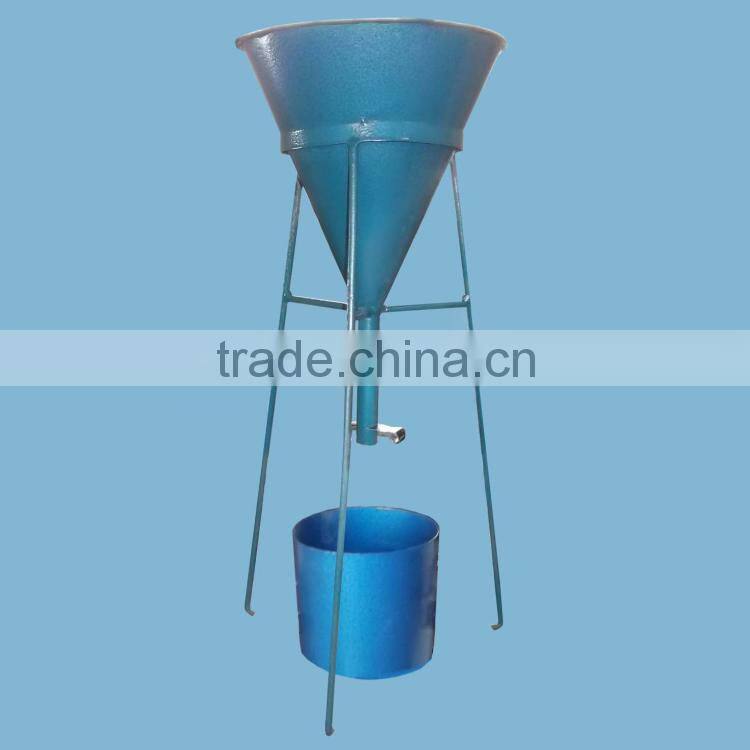

The standard hopper size
Total height 5.4 mm
Hopper opening 2-¢20aperture
Leakage length diameter ¢20 mm
Funnel upper diameter ¢200mm
Length 225 mm
Lower part smooth 60 °



Technical Parameters
Parameter   Names Details
Vibration table
Plane 0.5 m²
Voltage 220V±5V
Power 0.75W
Frequency 3000times/min±200times/min
Amplitude 0.35 mm
Vib amplitude 0.5 mm
Tamper ¢16 mm 600 mm long



Capacity of the tube: specifications mm
Volume L The inner diameter mm Clear height The bottom thick mm Wall thickness mm
mm
≤4.75mm 3 155±2 160±2 5 2.5
9.5mm—26.5mm 10 205±2 305±2 5 2.5
31.5mm—77.5mm 15 255±5 295±5 5 3
≥53mm 20 355±5 305±5 5 3



C124 coarse (fine) aggregate packing density tightness test apparatus


Packaging & Shipping
Packaging Detail: YS C049 - A  Rock triaxial compression tester  is packed by standard wooden case
Delivery Detail: 20 days after payment confirmed

Company Information

Xi’an Zealchon Electronic Technology Co.,Ltd adhering to the "professional,  honest, and providing the best service" business philosophy, with the guidance of professors and researchers from the Well-known institutions in China,      developed a series of leading domestic and international standards, Technology class detecting instrument for asphalt and asphalt mixture, Road, bridge deck, geotechnical, structural, etc and OEM designed 12 series more than 100 kinds of laser productswith high power and long service time.

 C124 coarse (fine) aggregate packing density tightness test apparatus



Our Services

 24 hours after sale
