Help CenterTurkey Security Door Locks
Related Products
Specifications
1.turkey security door locks2.for building
3.2.5KG
4.Waterproof function
5.ce certification

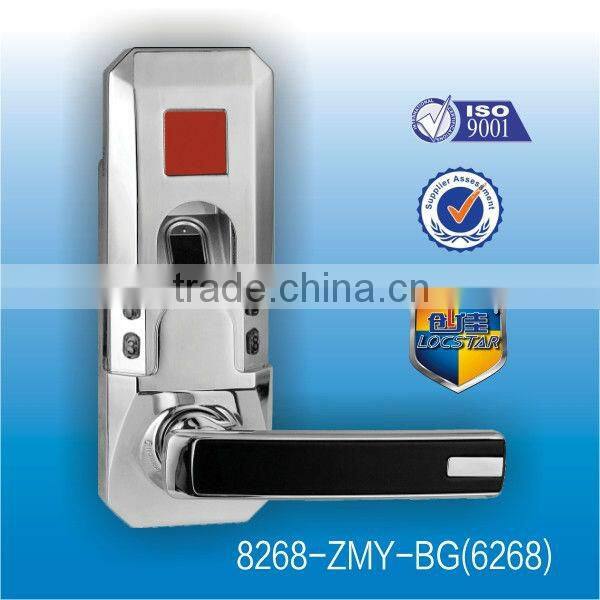

Building turky security door locks Photo
Lock Features
( LS8268) building keypad door lock with smart card
| 1 | America style |
| 2 | Brush and silver color optional |
| 3 | biometric & code & card unlocking |
| 4 | Time Control Function |
| 5 | Low Battery Alarm |
| 6 | Door Ajar Alarm |
| 7 | None-Disturb Function |
| 8 | Suitable for >35mm door |
| 9 | Hidden cylinder |
Technical Parameters
| 1 | Lock Type | LSD8268-ZWM |
| 2 | Unlocking way | fingerprint / code /key |
| 3 | Standard | ISO11784/785 |
| 4 | Approach Distance | >1.5cm |
| 5 | Working consumption | <200mA working <0.2seconds |
| 6 | Working Temperature | -20°C--55°C |
| 7 | Battery unlocking Cycle | >10000times |
| 8 | Working Voltage | 4AA Alkaline Batteries 6V |
| 9 | Low Voltage Alarm | 4.8V |
| 10 | Static Consumption | <30uA |
| 11 | Weight | about 2.5kg |

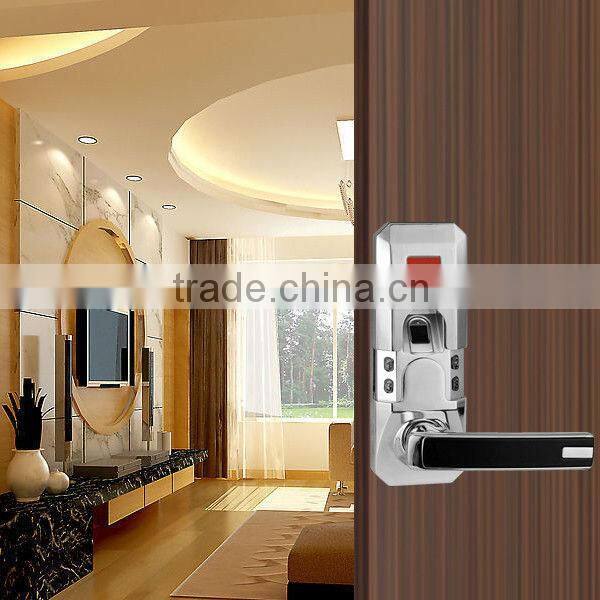

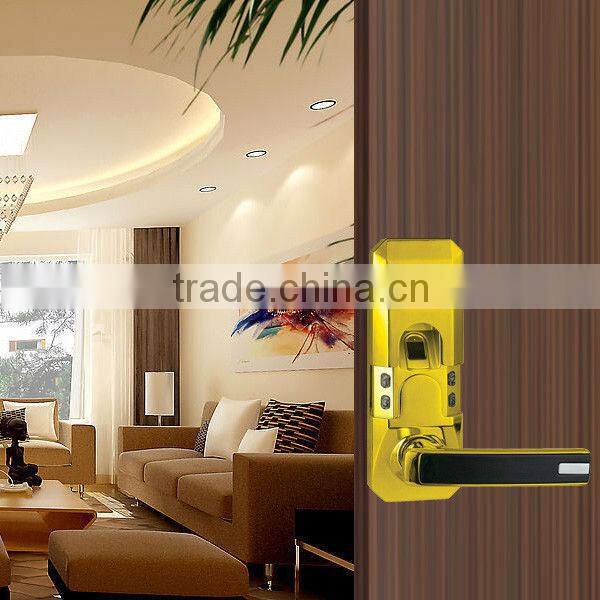

Indoor and out door reference

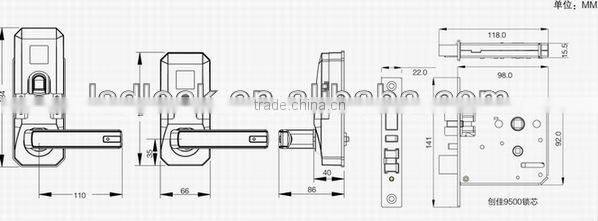

Lock Size
single latch & double latches optional
Hole diagram of single latch model

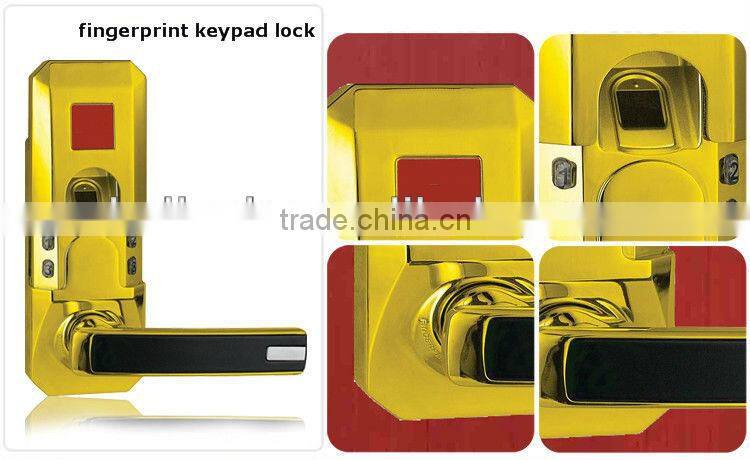

Keypad & buttons photos
Digital biometric lock Set
| Normally,this lock has the following functions | |
| 1. Multiple users | Up to 110 fingerprints,10 pin codes with 8 digital |
| 2. Easy installtion | Stadard cylinderical latch with 60-70mm backset suits door thickness 35-50mm |
| 3. Easy operation | Convenient keypad programming,simple to use |
| 4. Battery life | 4 AA standard 1.5V alkaline batteries.Battery life=up to 20,000 cycles |
| 5. Low battery warning | When batteries voltage gets below 4.5V,after entering a valid code the red LED will flash and lock will beep five times.Replace all 4 batteries |
| 6. Override key+keypad+card unlocking | Three ways to unlocking:key,keypad,fingerprint |
Tools required
-Pencil
-Tape
-Square
-Drill
-Drill bits
-Hammer
-Cutter
-Screwdriver
-Chisel
Domestic Projects:
Factory and US
Payment Term
30% T/T once orders confirmed.
Balance before shipment.
Delivery terms
DHL,UPS,EMS,Sea transportation are available.The locks will be shipped within 15 days upon receiving 30% deposit.
Warranty
1.One-year warranty.
If the lock cannot work within one year period( man-made improper factors are not included). Parts and software solution will be offered with cost price after 1 year warranty.
Why Choose Us?
1. We are electronic lock manufacturer since 1998.
2. Prompt Feedback: within 24 hours.
3. Self-made lock and software, can be adjustble for your special requirements.
4. OEM/ODM Service offered
5. Delivery in time.
6. Resonable price with good after-sale service.
Welcome to LSD!
