Home > Construction & Decoration > Lock > Door Lock > Electronic Fingerprint Indoor Door Lock

Electronic Fingerprint Indoor Door Lock

US$ 150 - 260 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

LSD

Model Number:

LSD8105 Indoor Door Lock

Contact Supplier Request Quote Chat Now

Shenzhen Tong Chuang Xin Jia Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name LSD

Model Number LSD8105 Indoor Door Lock

Specifications

1.Electronic fingerprint indoor door lock
2.Apartment lock
3.Semi-conductor fingerprint model
4.Smart Lock factory
5.CE/ISO

LSD8105 Touch Screen Fingerprint Digital Lock For Villa, Apartment

Fingerprint digital Lock Feature:

1)Unlock way:

a, Unlock with code, one master code (4-8digits), it has scamble code, you can input 20 digits, only if the last 4-8 digits master code is right, you can unlock the door;

b, Unlock with fingerprint, semi-conductor biometric fingerprint module, 100 fingerprint users;

c, Wireless remote control unlock;

d, Mechanical key in emergency;

2)Wireless Video Doorphone: fingerprint lock integrate with wireless doorphone,

visual intercom, remote control.

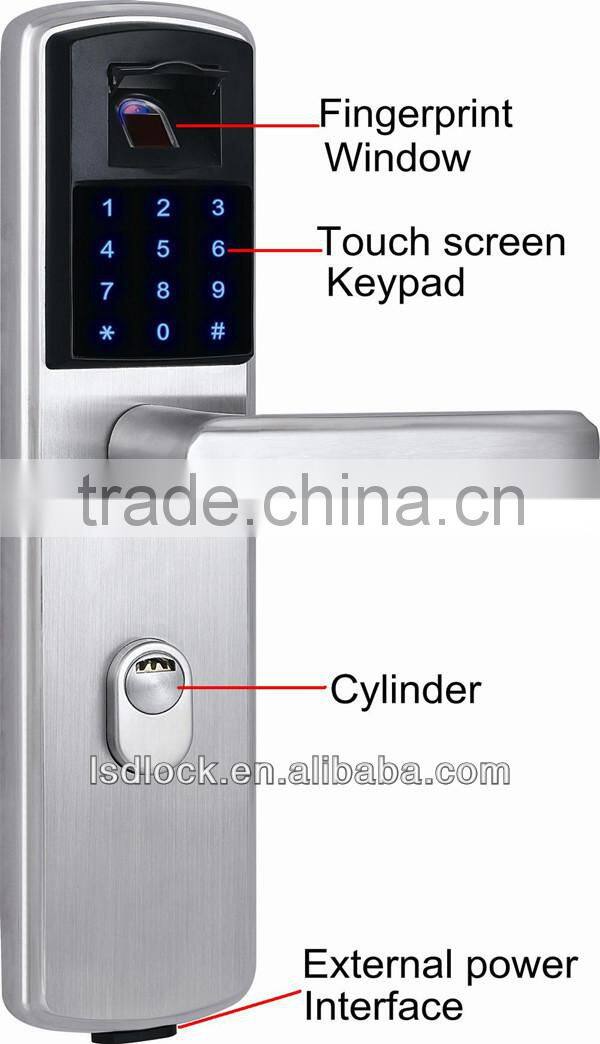

3) Equipment:

a, Touch screen kepad;

b, Blue LED illumination;

c, ANSI five latch mortise, deadbolt function;

d, Door bell function;

e, 4pcs AA batteries, low battery power alert;

f, External power contact;

g, Hidden cylinder, mechancial key override;

h , Waterproof cushion, weatherproof, durable.

Technical Parameters:

Model No.	LSD-8105-ZMT
Lock type	Apartment Lock
Lock open solution	Pin code, Fingerprint, Remote control,Mechanical key
International Standard	ISO14443-A,ISO11784/785
Resolution rate	500DPI
Fingerprint Read time	Less than 1 second
FRR	≤0.01%
Error rate	≤0.0001%
Battery	4 pieces AA alkaline battery (6V)
Low voltage alarm	4.8V(6V power supply)
Static current	20~50uA.
Dynamic current	70mA.
Working temperature	-20°C~55°C
Storage temperature	-30°C~70°C
Working humidity	15%RH~93%RF
Average working time of trouble-free	≥25,000h
Cylinder	Hidden cylinder, mechanical key override
Mortise	Five latch, deadbolt function
Mortise size	208x90x23.8mm
Lock Panel size	310x82.1mm
Material	Stainless steel
Package	1 piece per box, 6 pieces per carton
Color	PVD gold, silvery

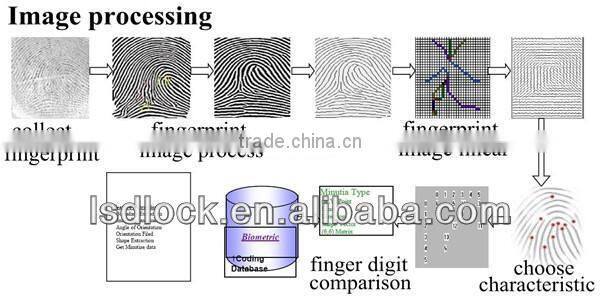

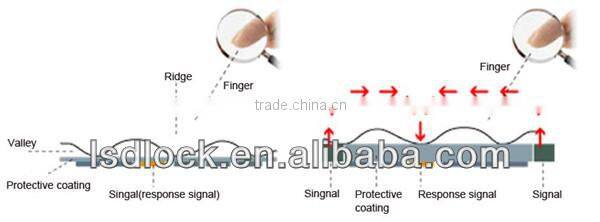

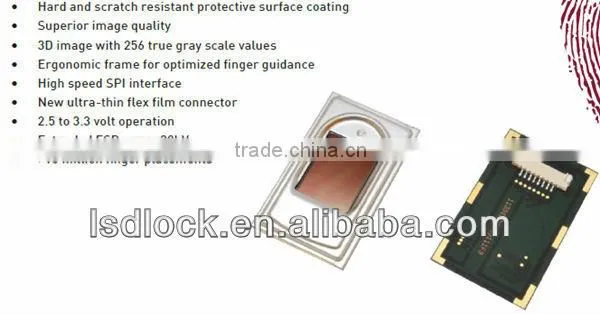

Semi-conductor biometric fingerprint module:

Cooperate with Switzerland Fingerprint Cards AB company, adopt Switzerland imported

semi-conductor fingerprint module,360 degree to capture the fingerprint, high security, anti-fake,

ultraviolet resistance. Only identify biometric fingerprint, living dermis scaning,

detect deep dermis and achieve the highest level of fingerprint identification.

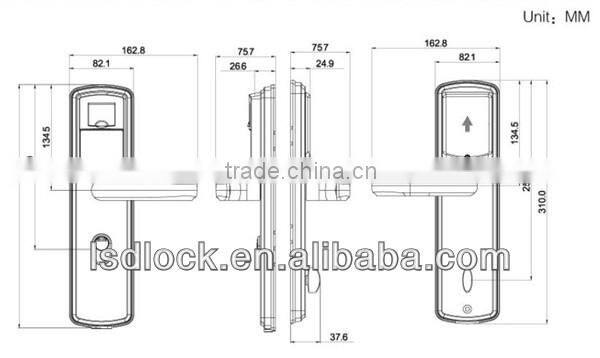

Fingerprint Digital Lock Panel Size:

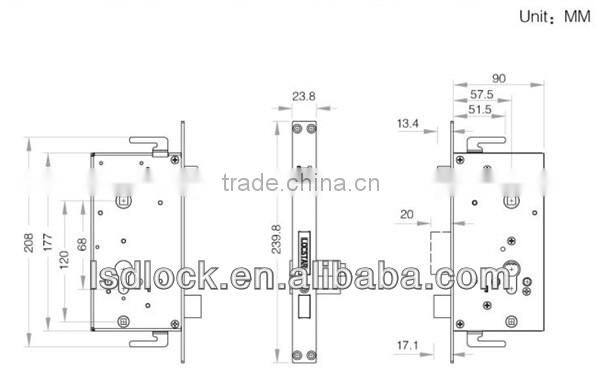

Mortise, five latch, deadbolt function:

Door Opening Direction:

Payment Term:

30% T/T once orders confirmed.

Balance before shipment.

Delivery terms:

DHL,UPS,EMS,Sea transportation are available.The locks will be shipped within 15 days upon receiving 30% deposit.

Warranty:

1.Two-year warranty.

If the lock cannot work within one year period( man-made improper factors are not included). Parts and software solution will be offered with cost price after 2 year warranty.

Why Choose Us?

1. We are electronic lock manufacturer since 1998.

2. Prompt Feedback: within 24 hours.

3. Self-made lock and software, can be adjustble for your special requirements.

4. OEM/ODM Service offered

5. Delivery in time.

6. Resonable price with good after-sale service.

Welcome!
