ROAD SURFACE SKID RESISTANCE ROAD SURFACE SKID RESISTANCE
Standard Test Method for Measuring Surface Frictional Properties Using the Pendulum skid resistanceTester (SRV)
The instrument used to measure the resistance value of the asphalt pavement marking, stone, or other material (specimen) and to assess anti-sliding ability of the road and the road surface material (specimen) in wet or humid conditions.
technical parameters
| parameters | details |
| Pendulum Weight | 1500g±30g |
| Distance of the center of gravity of Pendulum | 410mm±5g |
| the positive static pressure of Gliding block (rubber) to pavement | 22.2N±0.5N |
| Rubber size | 6.35mm×25.4mm×76.2mm(pavement) |
| the gliding block size (rubber) Stone (coarse aggregate) used | 31.75mm×25.4mm×6.35mm |
| sliding length On the road surface | 126mm±1mm |
| rubber end to swing center distance | 510mm±2mm |
| Rubber Shaw hardness | 55±5 |
| measure gauge | 30mm |

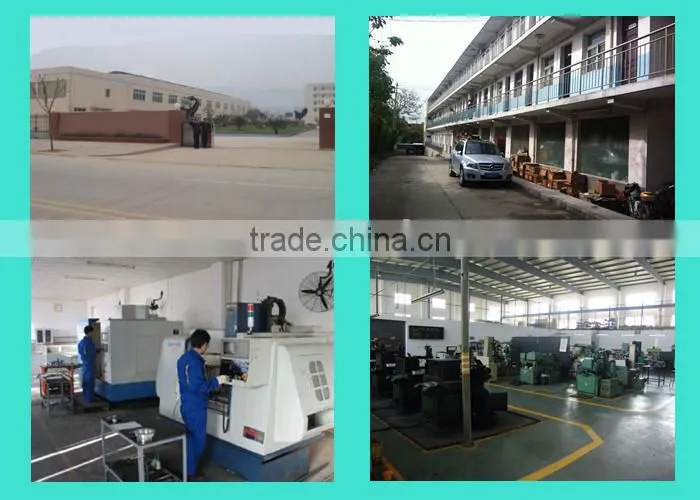

Company Picture

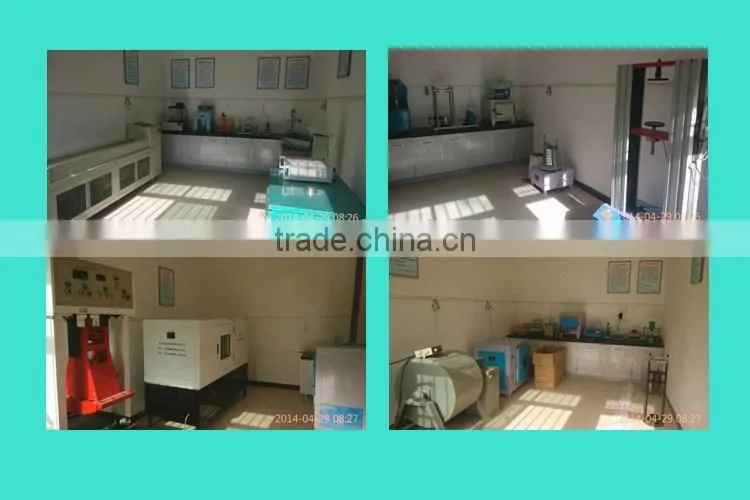

Lab Picture
Certification
Packaging & Shipping
Packaging Details: Wooden Box
Shipping Delivery: Sea & Air Transportation
