Pavement structure compressive fatigue test system,dynamic fatigue testing machine
Main feature

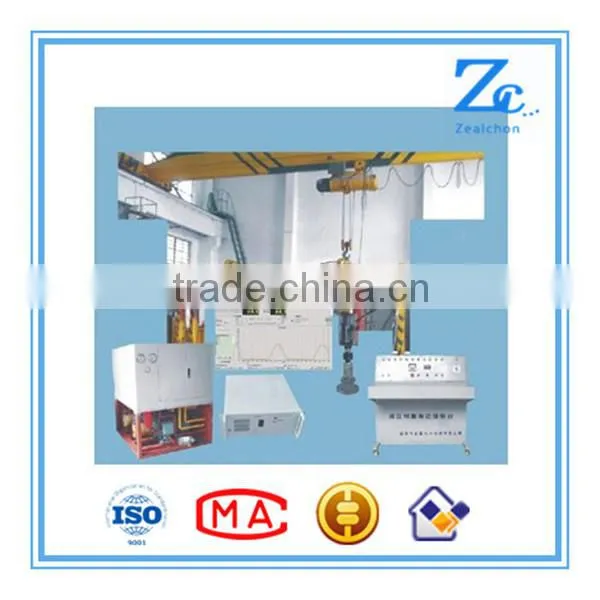

This machine consists of loading steel truss, servo hydraulic actuators, servo oil source, the servo oil source control work station, data acquisition instrument, the dynamic strain meter, a dedicated computer operating software, etc.It can test asphalt mixture pavement, pavement subgrade materials such as fatigue test repeatedly.Fatigue machine control system can dynamicly control servo valve and also can perform Sine wave, square wave, triangle wave, trapezoidal wave of a variety of waveform test.The test results can be saved and drawed curve automatically.It is producted by xi 'an yaxing civil instrument co., LTD and xi 'an air force engineering.
technical parameters
| parameters | details |
| Load, steel truss | length 6000 mm * width1300 mm *Height 1300 mm |
| Pavement structure sample | 6000 mm * 5500 mm length |
| Cervo actuator | maximum output of 80 t, Stroke 200 mm |
| Force sensor | 1000 KN |
| Loading frequency | 0.1 ~ 10 HZ |
| The displacement of the acquisition (specimen deformation) | high precision displacement sensor, the range of±5 mm |
| accuracy | 1 ‰ |
Company Picture
Lab Picture
Certification
Packaging & Shipping
Packaging Details: Wooden Box
Shipping Delivery: Sea & Air Transportation
