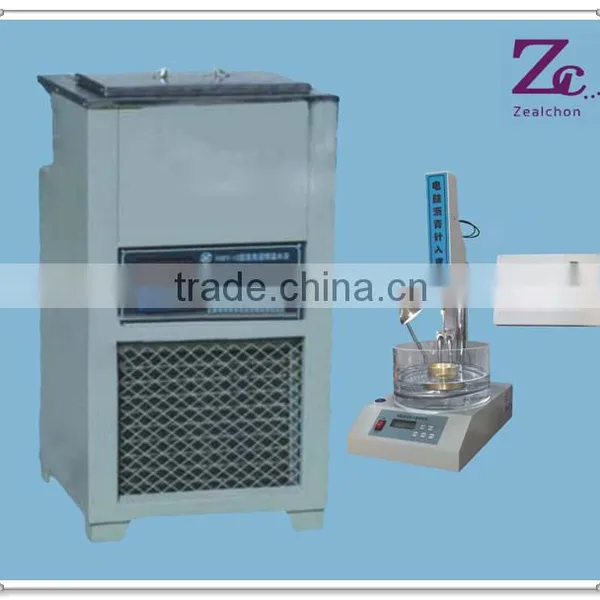

The computer automatic asphalt penetrometer YLZ-2,asphalt penetration tester
Technical parameters
| 1.ITEM NUMBER | A002 |
| 2.Voltage | 220V |
| 3.Power | 600W |
| 4.Temperature range | Indoors temperature ~ 90 °C |
| 5. Needle penetration time maximum load | Boot time 5S, you can set your own |
| 6. The needle penetration range | 0-40mm. Accuracy of ± 0.01 mm. |
| 7. The time range | 0-60s. Accuracy ±0.1s. |
| 8. Ambient Temperature | 5 ~ 40 °C |
| 9. Ambient Humidity | <=85% |
| 10. Boundary dimension | 330 * 230 * 520mm |
| 11. Weight | 7.2kg |
| 12. the total weight of the standard pin and connecting rod | 50g ± 0.05g |
| 13. weight mass |
50g ± 0.05g |
Main features
1.The collet nut fixed needle, to ensure that the needle bar and the needle are in the same center line.
2. Displacement sensor test, the needle penetration display precision: 0.01 mm
3.Equipped with cold light lighting device, had no effect on the asphalt surface temperature
4. With a heating device.
5.The advanced digital temperature sensor enables temperature measurement more accurate.
6. Pin and connecting rod are easy disassembly, easy to check the quality.
7.The printercanoutput directly.
8. LCDis moreintuitive.
USAGE
Penetrometer is used to test the needle penetration of petroleum asphalt for road, polymer modified asphalt penetration and liquid petroleum asphalt distillation or the residue after evaporation of emulsified asphalt recording by 0.1mm.
When the tester automatically control the temperature, the penetrometer measured with the displacement sensor and automatically calculate the average, equipped with 20 times the magnifying glass and spotlights, convenient and intuitive.
1. Our company is committed to provide products and service of the highest quality and greatest value to our customers.
2. We provide one-year free warranty and lifetime maintenance for our products by email.
3. If you have any technical questions, please feel free to contact us.
