Specifications
Automatic Single Shaft ShredderInput material: wood, plastic, metal, rubber etc
Best configuration
Standard: ISO&CE
Specifications

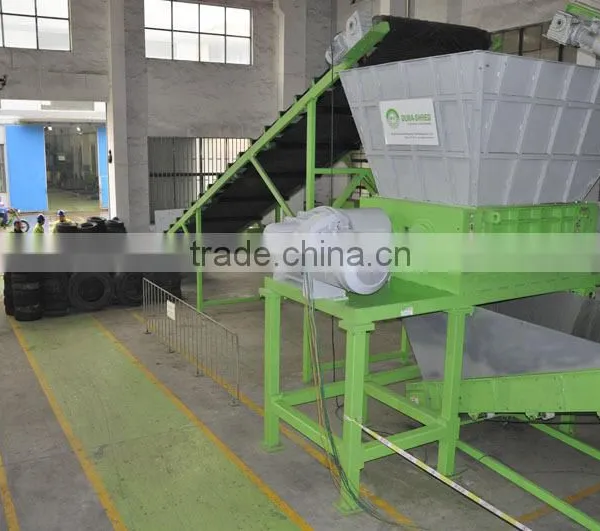

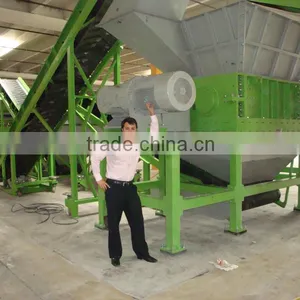

Split Cutting Chamber Tire Shredding Machine
Input: Truck, car, bus OTR tire
Output: shred tires.
Low noise, High quality
Energy-saving, environment friendly
CE&ISO
Split Cutting Chamber Tire Shredding Machine is the high quality machine shredding the various entire tires into pieces with the unique blade design
INTRODUCTION:

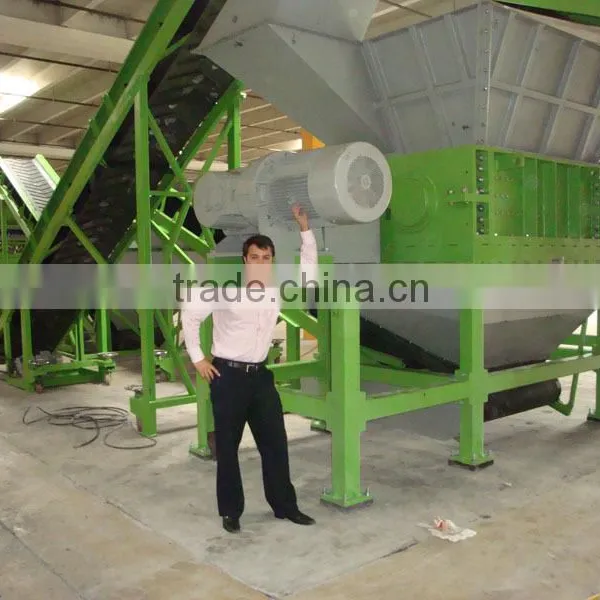

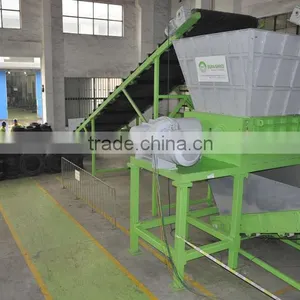

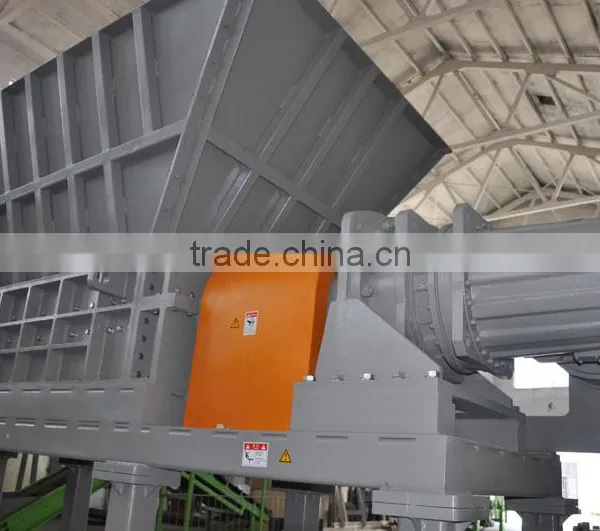

Dura-Shred's two shaft shredders are designed with an aggressive low RPM, high torque shredding technology. Each shaft is driven by its own Siemens motor, giving it plenty of power to drive through tires and thick steel beads. The shredder blade thickness ranges from 25mm to 152mm (1"-6") depending on the type of tires, throughput and desired end product. All of our blades are made from exotic steel and heat treated to an average 56-60 on the rock well scale. The shredder machine can process pre-cut OTR tires, truck tires and car tires at a rate of up to 20 tons per hour.
PACKAGE
The equipment is packaged and secured to arrive at its destination without any damage or defect. It is necessary that the condition of the machine is checked and any abnormalities found must be reported to Dura-Shred
MODELS
Various model of tire shredder for various market needs
EQUIPMENT SPECIFICATIONS
|
TSD 2471 (182) |
TSD 1663 (137) |
TSD 1651 |
Motor Specifications |
Electric |
Electric |
Electric |
Number of Motors |
2 |
2 |
2 |
HP/KW |
55KW x 2 |
45KW x 2 |
37KW x 2 |
Voltage |
as clients request |
as clients request |
as clients request |
Cutting Chamber |
Split Chamber |
Split Chamber |
Split Chamber |
Blade Diameter |
754mm |
542mm |
542mm |
Large Blade Thickness |
75mm |
75mm |
75mm |
Small Blade Thickness |
40mm |
40mm |
40mm |
Cutting Chamber Dimensions |
1804 x 1410 |
1604 x 858 |
1304 x 858 |
Equipment Dimensions(LxWxH) |
5876 x 2310 x 3493 |
5464 x 2624 x 3040 |
4280 x 2206 x 2492 |
Equipment Weight |
22400KG |
13700KG |
12500KG |
Hopper Opening (LxWxH) |
3711 x 2438 x 1046 |
2835 x 1628 x 770 |
2335 x 1628 x 770 |
Capacity |
15-20 T/h |
10-15 T/h |
5-10 T/h |
Product Size Range |
75mm Strips-40mm chips |
||
|
TSD 1347 (86) |
TSD 1340 |
TSD 1332 |
TSD 832 |
Motor Specification |
Electric |
Electric |
Electric |
Electric |
Number of Motors |
2 |
2 |
2 |
2 |
HP/KW |
22KW x 2 |
22KW x 2 |
15KW x 2 |
7.5KW x 2 |
Voltage |
as clients request |
as clients request |
as clients request |
as clients request |
Cutting Chamber |
intact Chamber |
intact Chamber |
intact Chamber |
intact Chamber |
Cutting Chamber dimension |
1204 x 686 |
1004 x 686 |
804 x 686 |
804 x 460 |
Blade Diameter |
450mm |
450mm |
450mm |
284mm |
Large Blade Thickness |
40mm |
40mm |
40mm |
40mm |
Equipment Dimension (L x W x H) |
4092 x 1416 x2163 |
3892 x 1416 x2163 |
3327 x 1030 x 2075 |
2796 x 1256 x 2311 |
Equipment Weight |
6300KG |
5800KG |
4700KG |
2000KG |
Hopper Opening (L x W x H) |
1521 x 1416 x695 |
1321 x 1416 x695 |
1120 x 1257 x 800 |
1120 x 1256 x 800 |
Capacity |
3-5 T/h |
2-3 T/h |
1-2 T/h |
800-1000 KG/h |
Product Size Range |
40mm chips |
|||
BEST SERVICE
At Dura-shred we pride ourselves on delivering superior customer service and support. We believe that our real work starts after the sale. We take great care to insure that equipment is delivered on time and to our customer's specifications. We supply detailed installation drawings as well as service and maintenance manuals for every machine we manufacture.

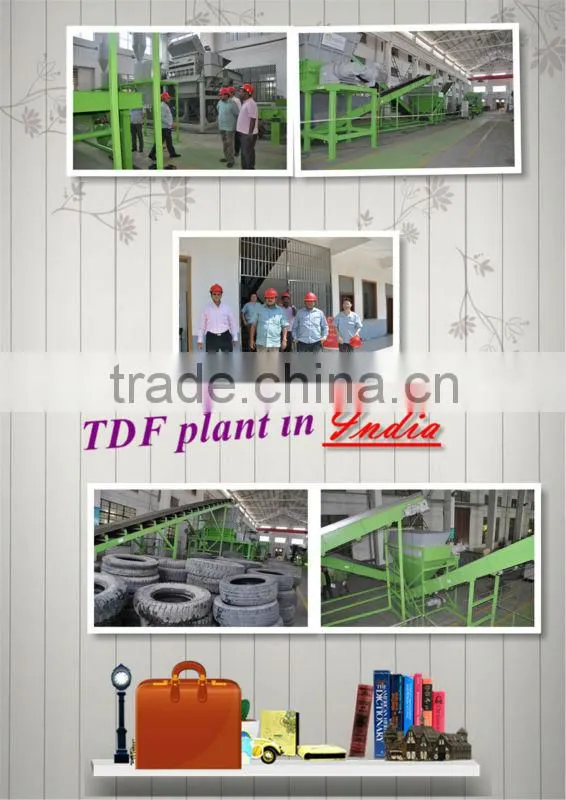

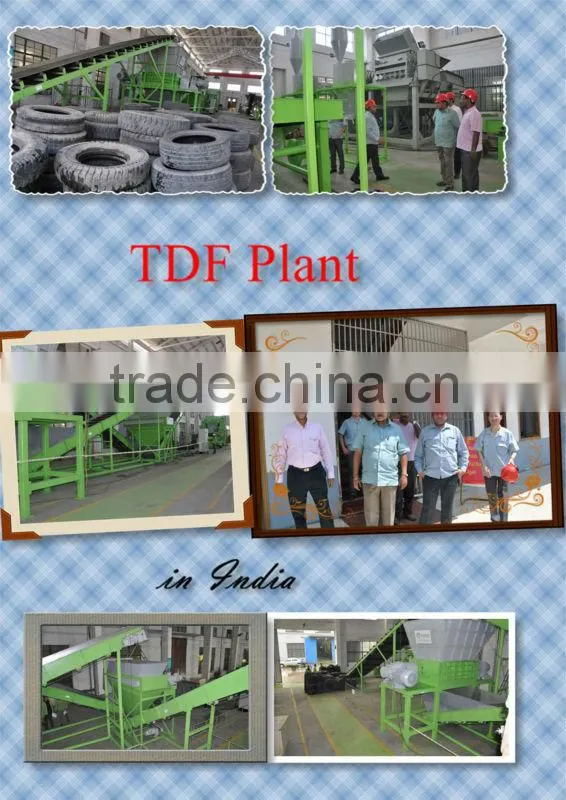

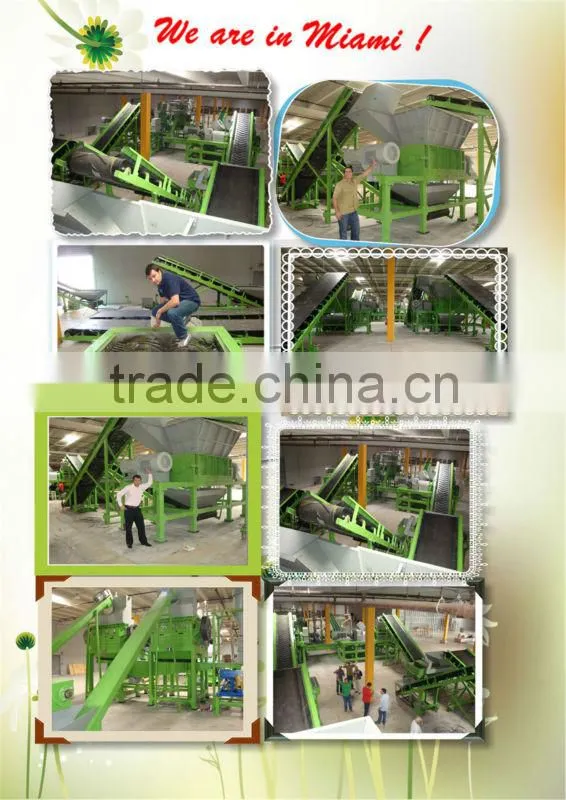

INTRODUCTION ON OUR RECYCLING PLANT
The Dura-Shreds Tire Recycling Plants are designed to process up to 2 tons of output per hour. Dura-Shreds system is proven turn whole scrap tires into high quality, uncontaminated crumb rubber. it is uniquely designed to allow the customer to adjust the equipment screens for precise sizing control and flexibility for output sizes. our crumb rubber systems also utilize a variety of conveying and separation technologies to minimize product losses, maximize efficiency, and maintain a clean operation environment.
THE FEATURES OF OUR SYSTEM
system capacity : 2 metric tons of output per hour of semi OTR, truck and car tires.
POTENTIAL BY PRODUCTS AND SIZES
1.tire derived fuel chips (TDF)- 1"-6" nominal chip

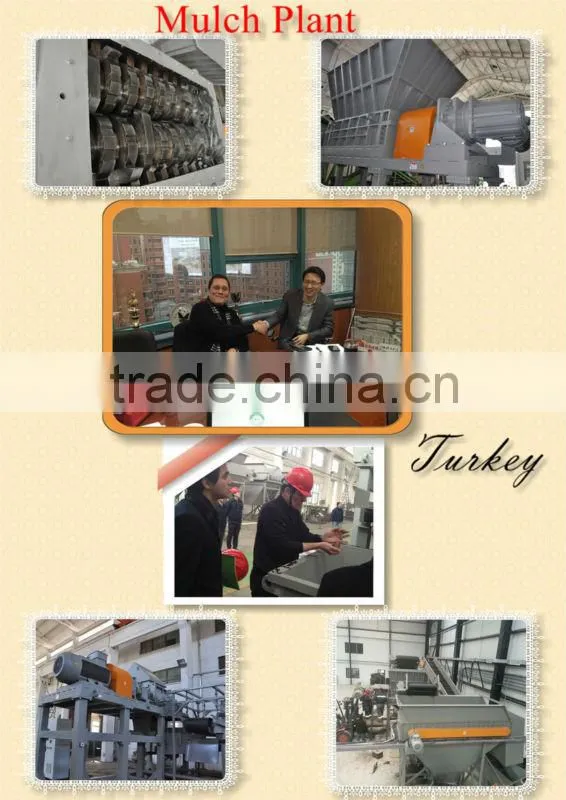

2.rubber mulch - 10-30 mm mulch (after the grater, size controlled by screen inside grater)
3.rubber crumb- 1mm-6mm (after the granulators, size controlled by screen inside granulator)
4.rubber powder 30-120 mesh (after miller, size controlled by centrifugal screen)
5.steel
6.fiber
CRUMB RUBBER PURITY
1. 99% free of textile
2. 99.9% free of steel
3. 99.9% free of stones and other contaminants
STEEL PURITY
95%-97% contaminant free, more machinery will be needed for cleaner steel
MAINTENANCE
Shredder Allow for 20 minutes for every 8 hours of run tern-tighten bolts, lubricate and inspect.
Grater Allow for 60 minutes for 8 hours of run time-tighten bolts, lubricate and inspect
Granulators 20 minutes for every 8 hours of run time-tighten bolts, lubricate and inspect, change blades if necessary
Miller Allow for 10 minutes for every 8 hours of run time-tighten bolts, lubricate and inspect.
ENVORNMENTAL COMPLIANCE
Air system included cyclone and filtration system are also included. There are no harmful pollutants generated or released in the shredding process. Any fiber or rubber that accumulates outside of the equipment can be disposed.
HUMAN RESOUCE REQUIRMENT
The plant can be run by 8-9 people per shift. Here is a typical employee breakdown for a full functioning recycling plant
1 plant manager
2 maintenance technicians
2 tire handlers
1-2 steel handlers
1 fiber handler
1 quality control packaging technician
Any questions, be free to contact me!( Skype:durashred-sales803)
