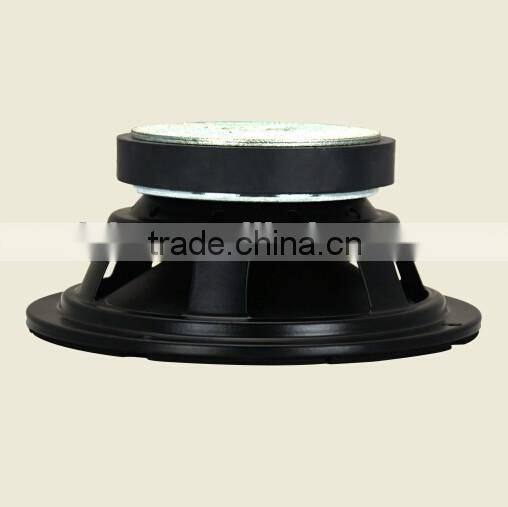

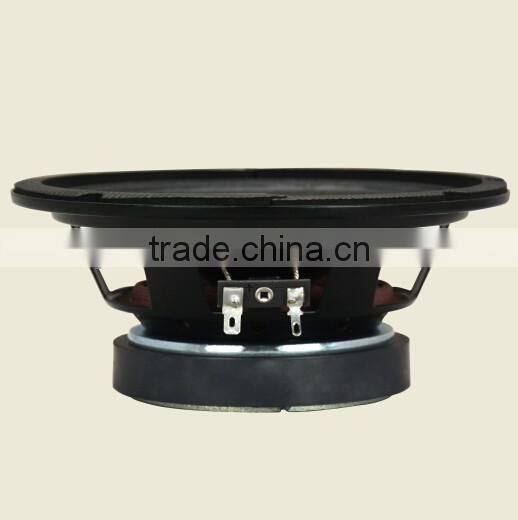

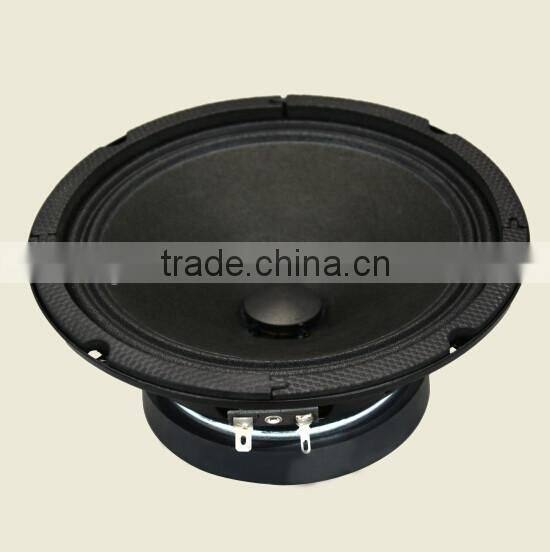

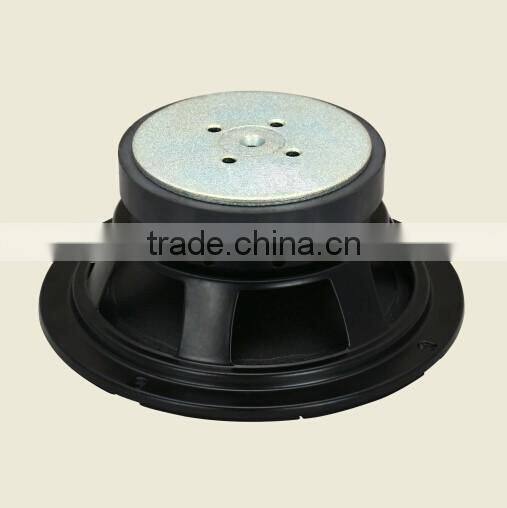

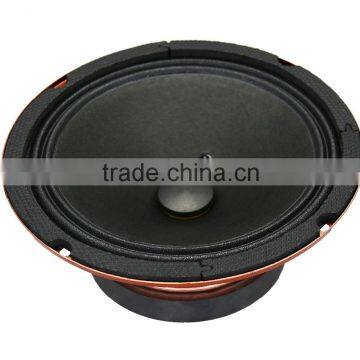

Help CenterSW-617 6.5 Inch 250W New Design Car Loudspeaker/midrange Speaker
Related Products
-
Soway SW-802 8 Inch 500W Big Power Car Loudspeaker/midrange SpeakerNegotiableMOQ: 1000 Pieces -
KD-802 8 Inch Car Loudspeaker/loudspeaker ProfessionalNegotiableMOQ: 1000 Pieces
-
Soway VP-603 300W Car Audio Midbass Speaker/midrange Speaker/professional SpeakerNegotiableMOQ: 1000 Pieces
-
Soway SW-655 Car Audio Midbass Speaker/midrange Speaker/midbass SpeakerNegotiableMOQ: 1000 Pieces
-
Soway SW-6.5BL 6.5inch 38mm Voice Coil High Quality Mid-bass LoudspeakerNegotiableMOQ: 1000 Pieces
6.5" midrange

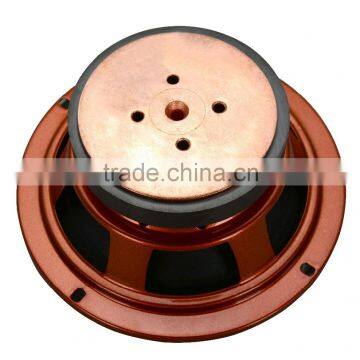

iron basket black /red color with small ventilation holes
magnet size:100*15 MM 16OZ
T-Yoke thickness: 3mm zinic color with small ventilation holes
Washer thickness: 4mm zinic color
1" coice coil KCCAW with small ventilation holes
cloth edge paper cone
Impendance:4 OHM
Power 250W Max.
Sensitivity:89 dB 1W/1M
Frequency:200-5KHz

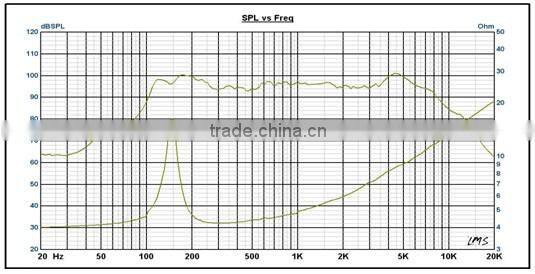

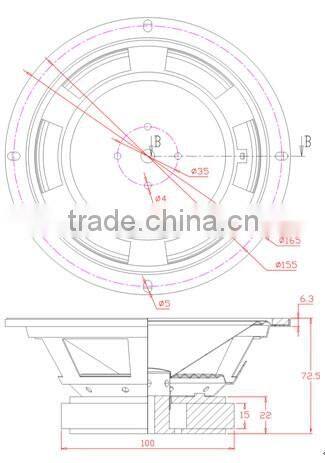

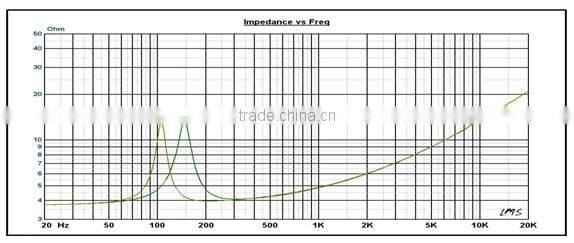

DATA SHEETS:
| Specifications: | thiele&small parameters | mounting and shipping information | |||||
| Nominal Diameter | 166mm(6.5 in) | Fs | 147 Hz | Net Weight | 0.96 kg / 38 oz / 2.15 lib | ||
| Nominal Impedance | 4 Ω | Re | 3.7 Ω | Shipping weight | 2.3 kg /90 oz / 5.06 lib | ||
| Minimum Impedance | 3.7 Ω | Qes | 2.485 | Shipping Box | 352x174x77 mm | ||
| Program Power | 250 W | Qms | 6.562 | ||||
| Power handing capacity | 125W | Qts | 1.803 | ||||
| Sensitivity(1W/1m) | 89 dB | Vas | 3.517 lt | ||||
| Frequency Range | 200-5K Hz | Sd | 138 cm2 | ||||
| Voice Coil Diameter | 25.5mm (1 in) | X max | 3 mm / 0.12 in | ||||
| Coil Material | Copper-clad aluminium wire | Mms | 9.12g / 0.32 oz | ||||
| Former Material | KAPTON | Bl | 3.543 Tm | ||||
| Winding width | 10 mm(0.4 in) | Le | 0.636 Mh | ||||
| Magnet Material | ferrite | ||||||
2pcs/color box,18pcs/ctn
Redsun is a professional loudspeaker manufacturer with almost two decades experience in the scope. Redsun developed from a small workshop 20 years ago.It has growing to be an professional manufacturer of car speaker. Our main products include Multimedia speaker,coaxial car speaker,tweeter,midrange,subwoofer,PA speaker,Portable voice amplifier,and speaker parts. In 2009,Redsun passed the ISO9001:2008 quality evaluate and got the certificate in the same year.We firmly stick to the quality system and CE,ROHS certificates. This brought us good reputation at domestic and abroad.
1. What's your main product?
We specialized in coaxial car speaker,midrange,woofer,tweeter,PA speaker,and speaker parts.
2. Are you a factory or trader?
We are manufacturer and exporter.
3. What is the MOQ?
There is different requests for different speakers.
For woofer,MOQ will be around 200PCS.15inch will be less,around 50PCS.
For midrange,MOQ will be around 1000-2000PCS.
For tweeter,MOQ will be around 2000PCS.
For coaxial speaker,MOQ will be around 2000PCS.
We accept sample order to try or test our quality.
4. What's your price policy?
We usually offer FOB prices, but EX-Work prices are available. Unit prices based on your quantity, we can apply favorable discounts for large orders.
5. What payment methods do you accept?
We accept T/T.For large order,L/C is ok to accept.
6. How long is the lead time?
It will take 40-50 days to finish order.
7. Can you do OEM and ODM?
Yes. We accept OEM and ODM orders. You can customize products. We will produce it as you required.
8. Why choose us ?
(1). Professional & Experience :
We are a high-tech company integrating R &D , Production and sales for speakers about 20 years.
(2) . Competitive Price :
Our prices are very competitive base on the quality.
We are manufacturer,not trader.
(3). High quality & Strict QC :
We have strict quality control . 100% quality control about materials , 100% quality control in the process of production , and all products will be tested before shipping.
(4). Rich product variety,much top-selling products:
We develop up to 100 pcs of different speakers every year.
In our extensive product range,I believe you will be able to find to meet the needs of speakers.
Soway and Cometa brands are selling well in domestic and overseas.So we can develope and sell to meet the needs of the market.
