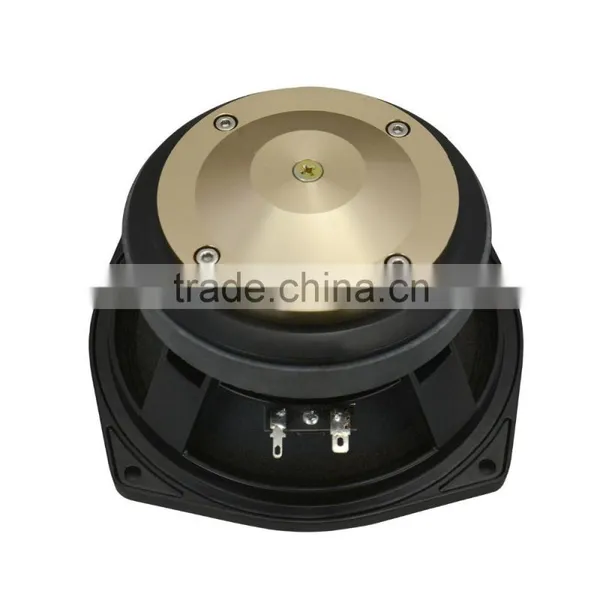

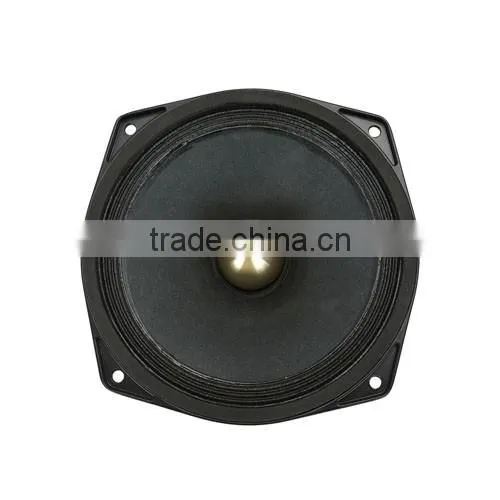

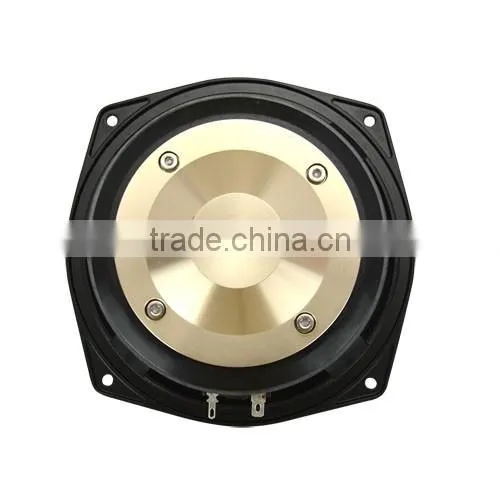

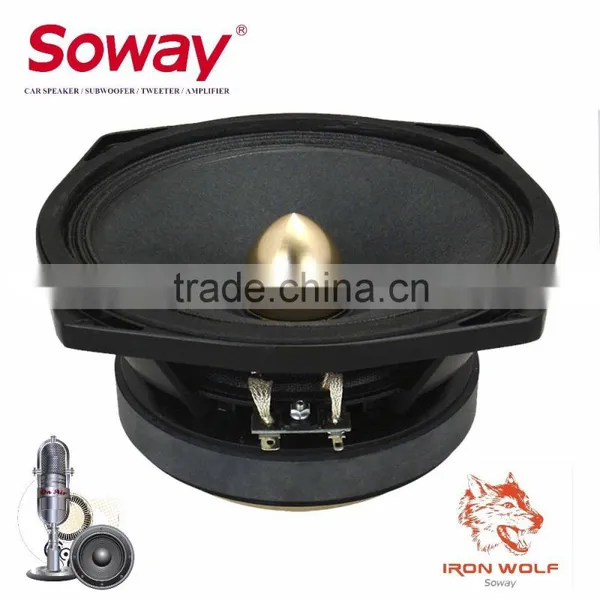

Help CenterSoway SW-618 Hifi Speaker 6.5inch Super Power Natural Sound Midrange Speaker
Related Products
-
Soway SW-803PRO 8" 500W Aluminium Frame Pro Audio Car Speaker, Bullet Cap Speaker DriverNegotiableMOQ: 200 Pieces -
SW-8GR Green Iron Frame 8INCH Loudspeaker, 800W 4OHM CAR SPEAEKRNegotiableMOQ: 1000 Pieces
-
SW-612 6.5" 500W Aluminium Frame Pro Audio Car Speaker, Bullet Cap Speaker DriverNegotiableMOQ: 1000 Pieces
-
Soway SW-165 ALUMINIUM FRAME 6.5 INCH MID BASS CAR SPEAKERNegotiableMOQ: 1000 Pieces
-
Soway SW-6-2OR IRON FRAME 6.5 INCH MIDRANGE CAR SPEAKERNegotiableMOQ: 1000 Pieces
SIZE: 6.5" HIFI
ALUMINIUM FRAME WITH BLACK PAINTING
MAGNET SIZE dia120x15 25OZ
T-YOKE THICKNESS 6mm
WASHER THICKNESS 6mm
35.5mm KCCAW VOICE COIL
Two drvier
CLOTH EDGE PAPER CONE
DUST CAP:ALUMINIUM CASTING BULLET GOLDEN COLOR
IMPEDANCE 2 OHM
Frequency resp.:150-12Khz
MAX. POWER: 800WATT

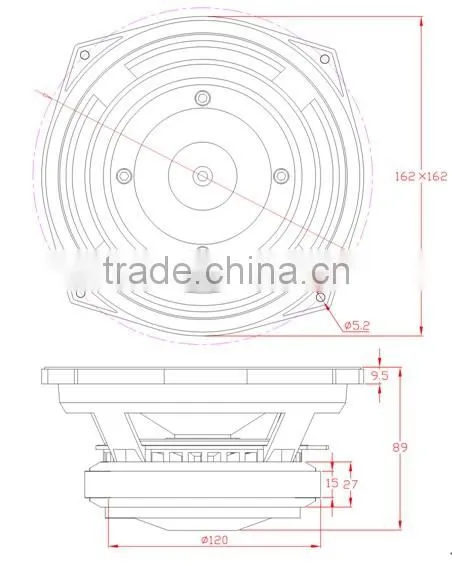

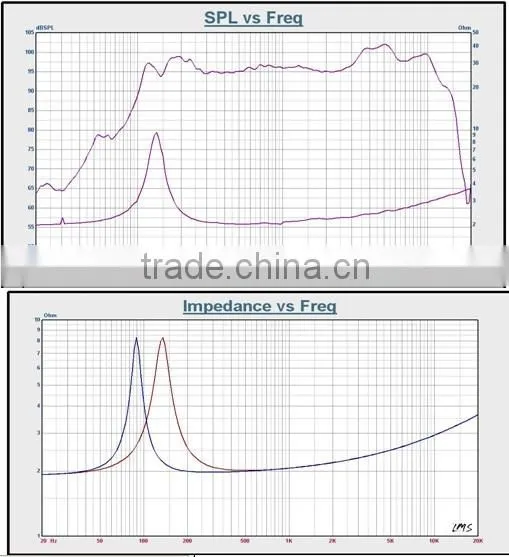

| Specifications: | thiele&small parameters | |||
| Nominal Diameter | 162 mm( 6.5 in ) | Fs | 134.25 Hz | |
| Nominal Impedance | 2 Ω | Re | 1.9 Ω | |
| Minimum Impedance | 1.9 Ω | Qes | 1.607 | |
| Program Power | 300 W | Qms | 5.411 | |
| Power handing capacity | 150 W | Qts | 1.239 | |
| Sensitivity(1W/1m) | 91 DB | Vas | 4.703 lt | |
| Frequency Range | 150-12k Hz | Sd | 14.314 cm2 | |
| Voice Coil Diameter | 35.5 mm (1.4 in) | X max | 2 mm/0.089 in | |
| Coil Material | CCAW wire | Mms | 8.695 g / 0.31 oz | |
| Former Material | KAPTON | Bl | 2.944 Tm | |
| Winding width | 10+10 mm( 0.4+0.4 in) | Le | 0.467 Mh | |
| Magnet Material | ferrite | |||
1pc/inner box,8pcs/outer carton
Redsun is a professional loudspeaker manufacturer with almost two decades experience in the scope. Redsun developed from a small workshop 20 years ago.It has growing to be an professional manufacturer of car speaker. Our main products include Multimedia speaker,coaxial car speaker,tweeter,midrange,subwoofer,PA speaker,Portable voice amplifier,and speaker parts. In 2009,Redsun passed the ISO9001:2008 quality evaluate and got the certificate in the same year.We firmly stick to the quality system and CE,ROHS certificates. This brought us good reputation at domestic and abroad.
1. What's your main product?
We specialized in coaxial car speaker,midrange,woofer,tweeter,PA speaker,and speaker parts.
2. Are you a factory or trader?
We are manufacturer and exporter.
3. What is the MOQ?
There is different requests for different speakers.
For woofer,MOQ will be around 200PCS.15inch will be less,around 50PCS.
For midrange,MOQ will be around 1000-2000PCS.
For tweeter,MOQ will be around 2000PCS.
For coaxial speaker,MOQ will be around 2000PCS.
We accept sample order to try or test our quality.
4. What's your price policy?
We usually offer FOB prices, but EX-Work prices are available. Unit prices based on your quantity, we can apply favorable discounts for large orders.
5. What payment methods do you accept?
We accept T/T.For large order,L/C is ok to accept.
6. How long is the lead time?
It will take 40-50 days to finish order.
7. Can you do OEM and ODM?
Yes. We accept OEM and ODM orders. You can customize products. We will produce it as you required.
8. Why choose us ?
(1). Professional & Experience :
We are a high-tech company integrating R &D , Production and sales for speakers about 20 years.
(2) . Competitive Price :
Our prices are very competitive base on the quality.
We are manufacturer,not trader.
(3). High quality & Strict QC :
We have strict quality control . 100% quality control about materials , 100% quality control in the process of production , and all products will be tested before shipping.
(4). Rich product variety,much top-selling products:
We develop up to 100 pcs of different speakers every year.
In our extensive product range,I believe you will be able to find to meet the needs of speakers.
Soway and Cometa brands are selling well in domestic and overseas.So we can develope and sell to meet the needs of the market.
