Specifications
Shredder model:Single shaftInput:Different kind of plastic,PP,PE,EPS,EPP,PVC etc
Output:small piece,according require
ISO&CE
Dura-shred Single shaft shredder
Dura-shred's single shaft shredder is the conventional machine, Automatic control by microcomputer(PC), with functions of start, stop, reverse, overload automatic reverse, feature return and over-loading returns automatism applicable to shred various size plastic, metal, fiber, rubber, paper, wood, electrical components and wire which are difficult to shred, such as the sideline plastics, toe gum, hardboard, electronic board, wood, plastic barrel etc. Clients could select the corresponding model according to the material size and quantity. We as for the different specail needs, providing a special knife roll for shredded material as:film, woven bags or nylon, ABS, PC high-strength engineering plastic.
1.Specifications
Single Shaft Shredder
-Input material: plastic, metal, fiber, rubber, paper ,wood etc.
-Product Size: different size of pieces
-Automatic PLC
-Best turnkey service

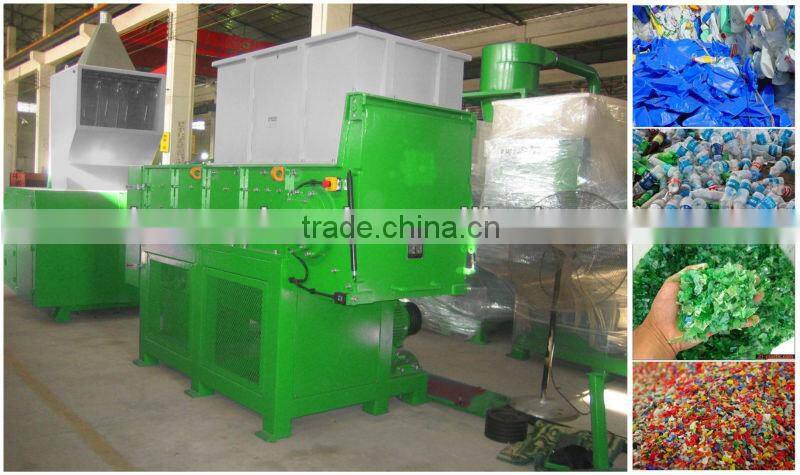

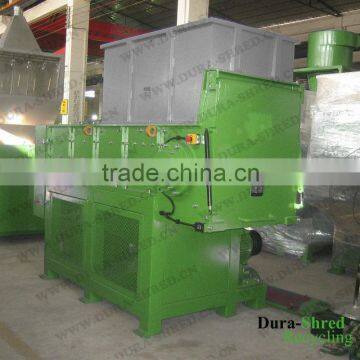

2.Picture

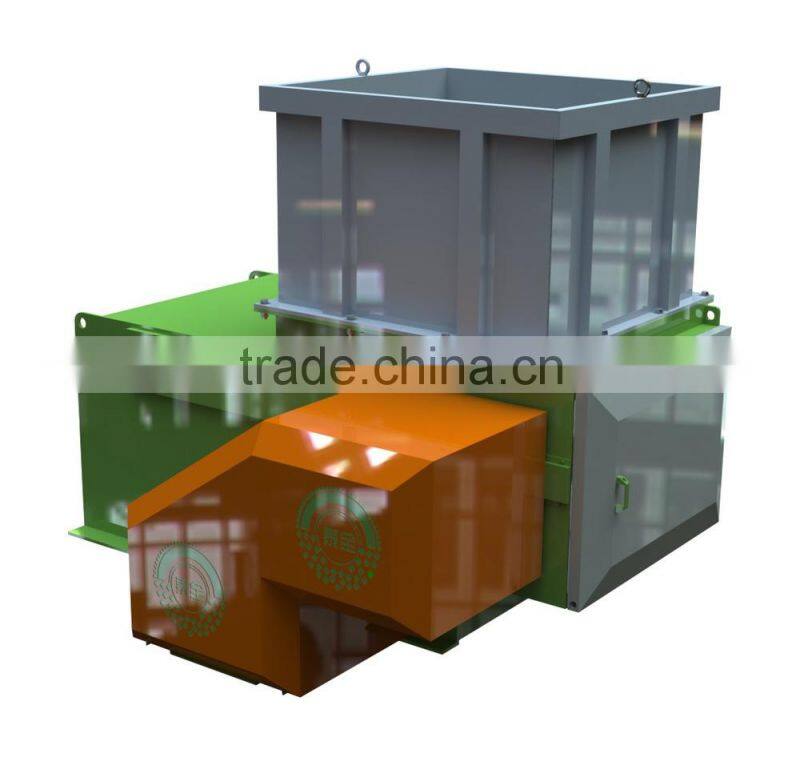

4. Design Drawing
5.Equipment Specifications
| TSS 920 | TSS 924 | TSS 1624 | |
| Cylinda Stroke(mm) | 500 | 500 | 750 |
| Rotor Diameter(mm) | 224.7 | 224.7 | 300 |
| Main Shaft Speed(r/min) | 83 | 83 | 83 |
| Screen Mesh(mm) | 25 | 25 | 40 |
| Rotor knives(PCS) | 24+4 | 28+4 | 30+4 |
| Stator knives(PCS) | 2+2 | 2+2 | 2 |
| Dimention(mm) | 1780*1190*1754 | 1780*1350*1754 | 2455*1478*1700 |
| Power(kw) | 15 | 18.5 | 22 |
| Weight(Kg) | 1300 | 1400 | 1550 |
| TSS 1632 | TSS 1640 | TSS 1647 | |
| Cylinda Stroke(mm) | 750 | 900 | 900 |
| Rotor Diameter(mm) | 300 | 390.3 | 390.3 |
| Main Shaft Speed(r/min) | 83 | 74 | 74 |
| Screen Mesh(mm) | 40 | 40 | 40 |
| Rotor knives(PCS) | 30+4 | 42+4 | 66+4 |
| Stator knives(PCS) | 2 | 2 | 2 |
| Dimention(mm) | 2455*1678*1700 | 2825*1747*1875 | 2825*2564*1875 |
| Power(kw) | 30 | 37 | 55 |
| Weight(Kg) | 1950 | 3500 | 5000 |
We design our shredders based on the following applications
- Tires
- Plastics
- Municipal Solid Waste
- Non-ferrous Materials
- Aluminum
- Paper
- Hazardous Waste
- PCB Capacitors
- Bulky Waste
- Low RAD Waste
- Fiberglass
- Construction/Demolition Debris
- Cloth - Canvas, Rags, Clothing
- Plastic Sheeting, Buckets
- Pallets
- PVC Pipes & Tubes
- Wood
The Dura-shred shredding System Advantage
• Exclusive Control System-Controls and operates the entire plant from its centrally located position and provides instant visibility to what each machine is doing in real time.
• Unique Stop/Auto Reversal Feature-Protects against overfeeding and damage by non-processable items.
• Advanced Bearing Housing-Isolates bearings from cutting chamber contamination and protects against bearing failure.
• Premier Full Turn Key Systems-Plant is manufactured, shipped, installed and ready to start recycling.
•Warranty-one of the best warrantees in the industry.
Proven Design and Technology.
A quality system with at an affordable price!
Fully Automated via 1 centrally located touch screen control panel.
Backed with one of the best Warrantees in the industry
Plz enquiry us freely,if you got any questions.
