BEST Choose China Famous Brand YuChai Diesel Genset 300kva Generator Price
Specifications
1 300kva YuChai diesel generator set2.high performance
3.realiable qualty, easy operation
4 low fuel consumption
hello, we are Zhengzhou Thunder Power Equipment
we promise you best products, competitive price!
Introduction to YuChai:
Guangxi Yuchai diesel gen-sets is the series that produced by adopting FEV technology from Germany. The units have great performance, compact structure, big power margin, normally the overhaul period must be after 12000 hours.

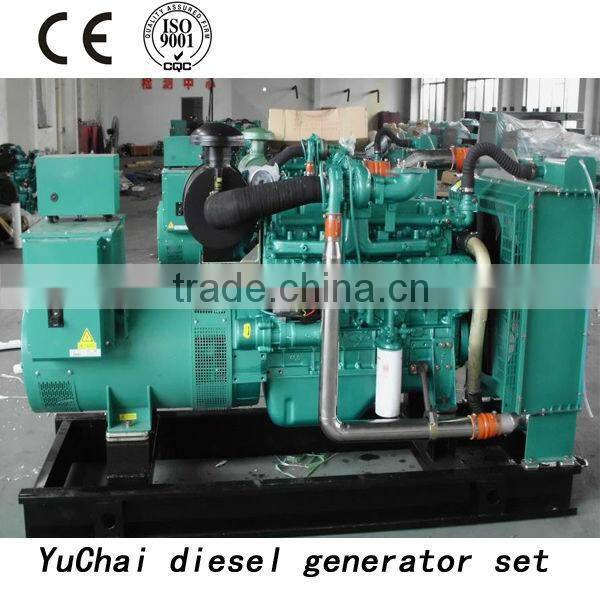

300kva YuChai diesel generator set
The products that we provide are all new, each unit all get through the strict production testing.
12 months or 1000 hours(whichever occurs first) of Warranty Time for all our products. We take the full responsibility only in the fault that created by the quality, the wearing-parts, daily consumables and human error of operating & maintenance are not included in.
- GB/T19001-2008
- SO9001:2008 Quality Control System
Technical data | |
Genset Model | JHY-150GF |
Prime Power | 300kva |
Rated Voltage | 400/230V |
Frequency | 50/60Hz |
Power Factor | 0.8(lagging) |
The regulating rate of steady voltage | ≤±0.5% |
The regulating rate of instantaneous voltage | ≤-15%/ +20% |
The time of steady voltage | ≤1.5sec |
The waving rate of voltage | ≤1.0% |
The regulating rate of steady frequency | ≤3% |
The regulating rate of instantaneous frequency | ≤±10% |
The time of steady frequency | 3sec |
Dimension (L×W×H) (mm) | 2400*970*1300 |
Genset weight (kg) | 2100 |
Diesel Engine | |
Brand | Yuchai |
Model | YC6A230L-D20 |
Number of Cylinders | 6 |
Rotating Speed | 1500/18000RPM |
Cycle | Four stroke |
Type | waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) | 108*125 |
Displacement(L) | 7.252 |
Lubricating Capacity(L) | 21 |
Speed Governor | Electrical |
Cooling System | Water-cooled |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | ≤192g/kw.h |
Starting Method | DC24V Electrical starting |
Alternator | |
Brand | Stamford |
Model | HCI444E |
Number of Phase | 3 |
Connecting Type | Three Phase and Four Lines |
Number of Bearing | 1 |
Grading Protection | IP22 |
Altitude | ≤1000m |
Exciter Type | Brushless (AVR automatic voltage regulating) |
Insulation Class | H degree |
The components of the genset | |
(1) Yuchai Diesel Engine; (2)Stamford Alternator; (3) Control Panel | |
Control Panel | |
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. | |
For better meet user's demands, the alternator is selectable, we have Stamford, Marathon, Qianghui, Engga and other famous brands.
merry you a good day!
