Help CenterChina Manufacturer Brass 3/4" Selector Switch Diverting Valve
Related Products
-
China Supplier Manufacturer 3/4" Brass Diverting ValveUS$ 24 - 27MOQ: 1 Piece -
China Supplier Manufacturer 3/4" Brass Selector ValveUS$ 24 - 27MOQ: 1 Piece
-
China Supplier Manufacturing 3/4" Diverting Valves (selector Valves) for Solar HeaterUS$ 15.5 - 18.4MOQ: 1 Piece
-
China Supplier Brass 3/4" Energy Regulator Thermostatic Mixing Valve(diverting Valve)US$ 24 - 27MOQ: 1 Piece
-
China Supplier Brass 3/4" Mixing Proportional Valve for Solar System(diverting Valve)US$ 24 - 27MOQ: 1 Piece

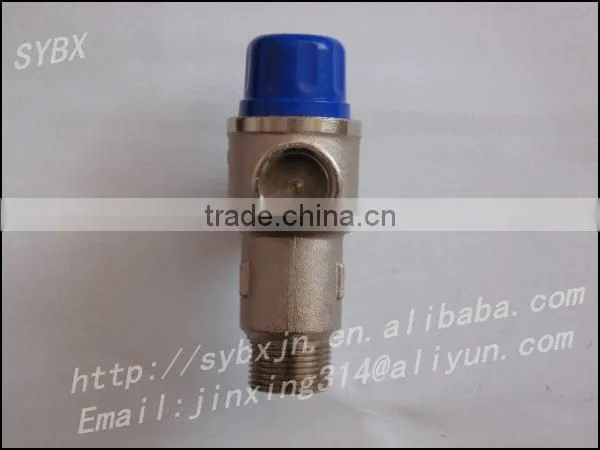

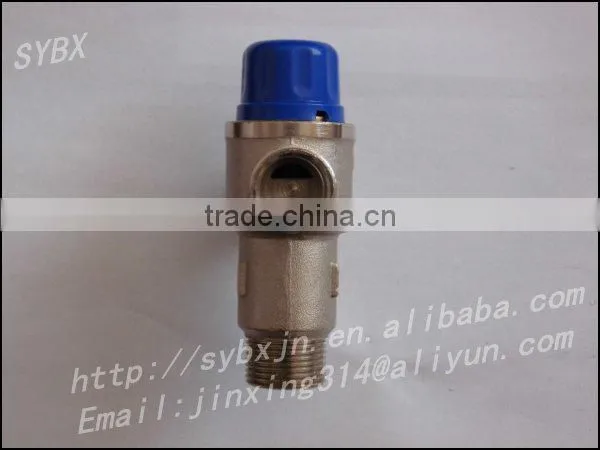

solar heater selector valve diverting valve
BXHX20- DIVERTING VALVE
Body: |
Brass with nickel plated |
Temperature setting range: |
40-45 ºC |
Hot and Cold water inlet temperature range: |
4-95 ℃ |
Maximum working temperature: |
≤99 ºC |
Temperature stability: |
+/-2 ºC |
Working pressure: |
0.03-1Mpa |
Ideal working pressure: |
0.1-0.5Mpa |
Connections: |
G3/4", Inlets: M, Outlet: M |
Flow rate(1 kg pressure drop): |
26.67 L/min |
Three way valves: |
Two outlets , one inlet |
1. Technical Data
BXHX20 G3/4”
a. Maximum working temperature: 99 C
b. Rated outlet flow on 1 bar pressure drop:26.67L/Min
2. Materials of Construction
a. Valve body: Nickel plated brass
b. Shutter: PPO
c. Connection: Inlets-M, outlet-M
3. Usage of Selector valves
Point of use mixing for wash hand basins, bidets, baths and showers in hospitals, schools, sport and leisure facilities, prisons and other public buildings.
4.How they work ?
Temperature range: 40---45℃
When coming water is below 40℃, it will flow out from cold port. When above 45℃, flow from hot port. When the temperature between 40—45℃, it will flow from both ports.
Normally it is applied in solar heater and gas/electric water heater system. When sun shine is short and water temp from solar geyser is not hot enough, the water will be flow into for the secondary heating, such as gas or electric heater for second heating.

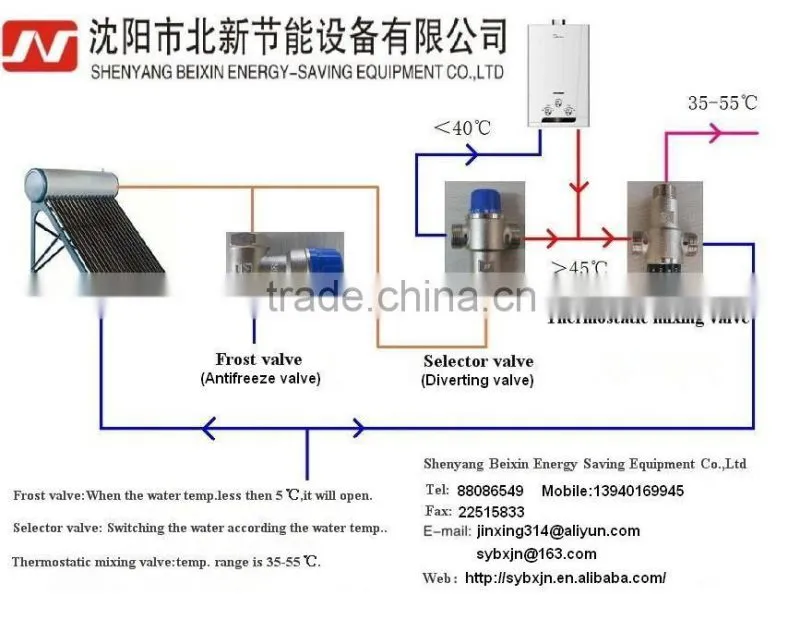

For detailed information, please see the below picture:
DIVERTING VALVE , SELECTOR VALVE , SWITCH VALVE ,
