Home > Industrial Equipment & Components > Valve > Ball Valve > Heater System Mechanical Switch Valve
US$ 26 - 32
MOQ: 400 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, Thermostatic cartridge
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Thermostatic Water Heater Diverter ValveUS$ 168 - 180MOQ: 300 Pieces -
China Manufacturer Brass 3/4" Selector Valve\Switch Valve for Solar HeaterUS$ 23 - 30MOQ: 400 Pieces
-
Water Heater Selector Valve (Switch Valve)US$ 17 - 30MOQ: 400 Pieces
-
Switch ValveUS$ 17 - 30MOQ: 400 Pieces
-
Selector ValveUS$ 17 - 30MOQ: 400 Pieces
Standard or Nonstandard
Standard
Structure
Other, Thermostatic cartridge
Pressure
Medium Pressure
Power
Other, Self expansion
Material
Other, Brass, Brass with nickel plated
Temperature of Media
Medium Temperature
Media
Water
Port Size
DN20
Place of Origin
Liaoning, China
Model Number
BXHX20
Brand Name
SYBX
Specifications
Mechainical Switch Valve1.Selecting Temp:49C/54C
2.ISO9001:2008
3.Solar heater+gas/electric heater system
Water heater selector valve
Temperature range:49---54C
When coming water is below 49,it will flow out from cold port.When abouve 54,flow from hot port.
When between 49--54C,it will flow from both ports.
Normally it is applied in solar heater+gas/electric water heater system.When sun shine is short and water temp from solar geyser is not hot enough, the water will be deverted to the second step heater,such as gas or electric heater for second heating.

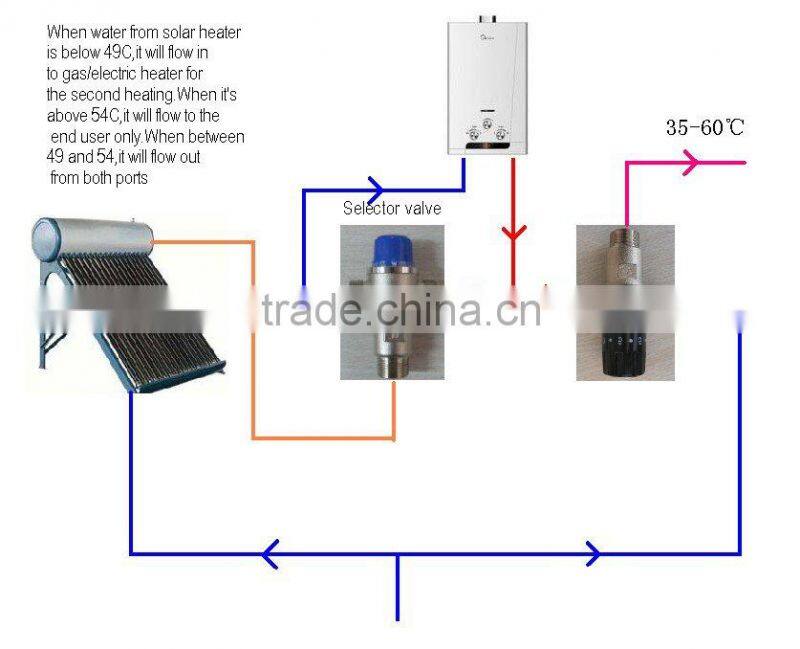

For detailed information,pls see the following picutre:
